LensTip.com

Lens review

Venus Optics LAOWA 7.5 mm f/2 MFT

9 October 2017
Arkadiusz Olech

7. Coma, astigmatism and bokeh

The Venus Optics LAOWA 7.5 mm f/2 MFT has serious problems concerning coma and other optical aberrations which cause deformations of point-like images of light sources in the frame corners. In fact the coma can be noticed even on stopping down the aperture by 1-2 EV.

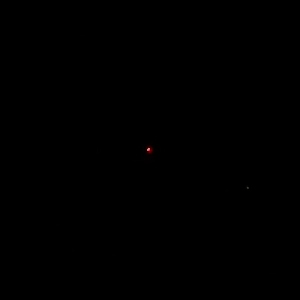

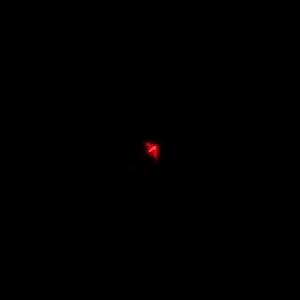

E-M5 II, f/2.0, center E-M5 II, f/2.0, corner
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

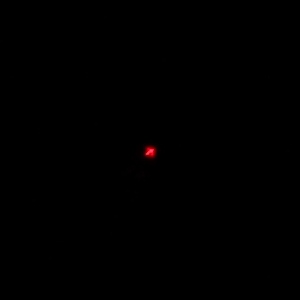

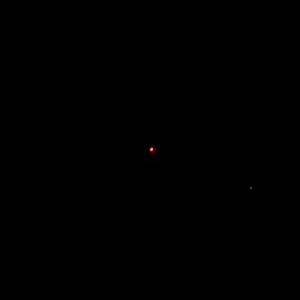

E-M5 II, f/2.8, center E-M5 II, f/2.8, corner
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

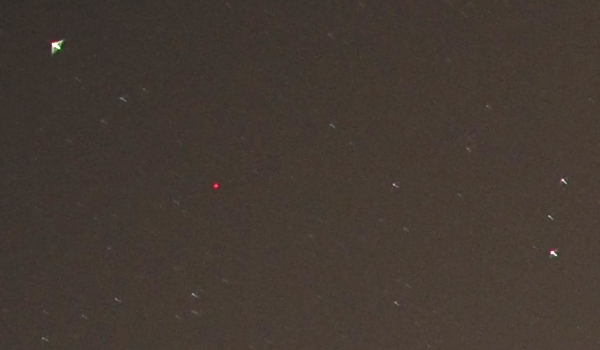

Night sky presents a similar result – once again there are noticeable deformations of stars on the edge of full frame which shapes look like the shape of the diode described earlier.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

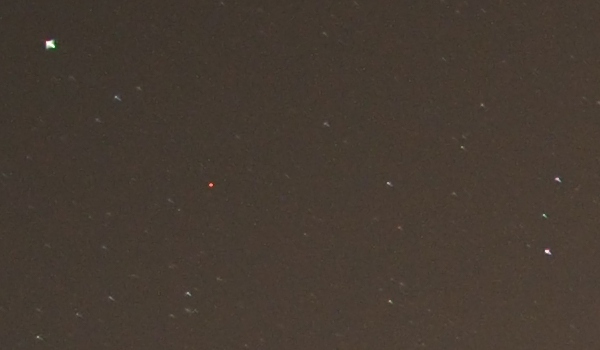

E-M5 II, JPEG, f/2.0, top left corner of the frame 1:1
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

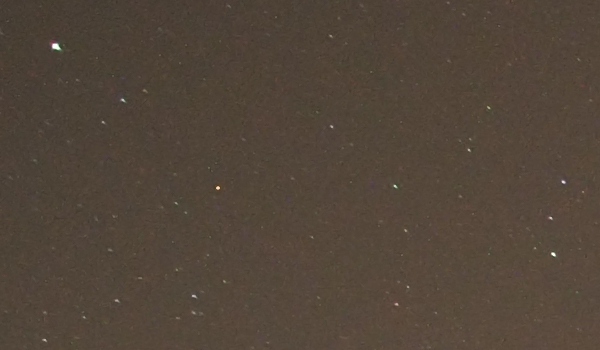

E-M5 II, JPEG, f/2.8, top left corner of the frame 1:1
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh
E-M5 II, JPEG, f/4.0, top left corner of the frame 1:1
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

The astigmatism, understood as an average difference between horizontal and vertical MTF50 function values, reached 9.1%. It is a value on the borderline between low and average level. It should be also noticed that the astigmatism makes itself felt mainly by f/2.0 and f/2.8; from f/4.0 onwards it becomes negligible.

With the Laowa’s 2/7.5 parameters it is really difficult to obtain wide out-of-focus areas in your photos. Still their appearance is not something you could call a crucial feature of this lens. It’s a good thing because the appearance of circles of light is just moderately good - you can see a lot of brightness gradients, deformations, and also poor round shape provided by the aperture with 7 diaphragm blades.

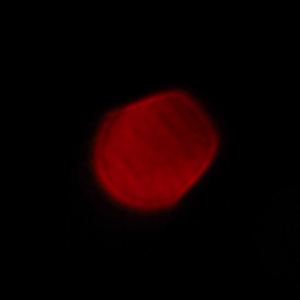

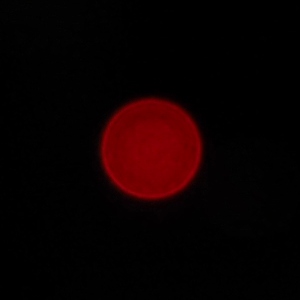

E-M5 II, f/2.0, center E-M5 II, f/2.0, corner
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

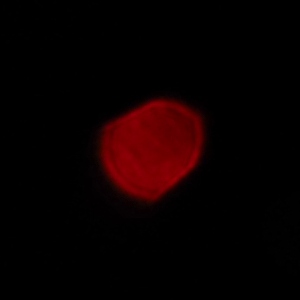

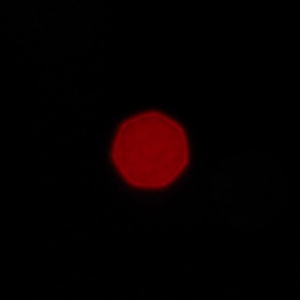

E-M5 II, f/2.8, center E-M5 II, f/2.8, corner
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh

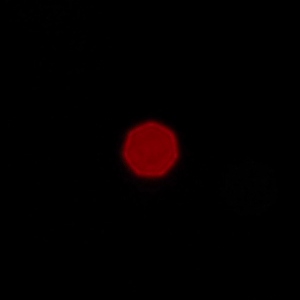

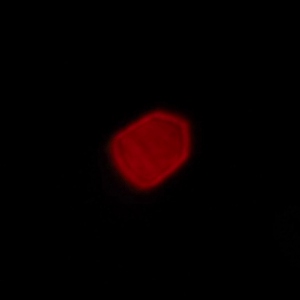

E-M5 II, f/4.0, center E-M5 II, f/4.0, corner
Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh Venus Optics LAOWA 7.5 mm f/2 MFT - Coma, astigmatism and bokeh
