LensTip.com

Lens review

Venus Optics LAOWA 7.5 mm f/2 MFT

9 October 2017
Arkadiusz Olech

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The tested lens doesn’t have any contacts so it is not recognized by Olympus and Panasonic camera bodies. It means no distortion correction is activated; when images are converted from RAW to JPEG format they aren’t cropped at all. Small wonder our distortion measurements were exactly the same for both types of files and amounted to −2.45%. With such a big angle of view it is a moderate result but we have seen lower distortion levels during tests of primes with similar angle of view and designed for full frame (e.g. the Irix 2.4/15).

We could measure the field of view of the lens, having photos of the sky at our disposal which we took during our test and presented in the sample shots chapter. The result we got amounted to 109.6 degrees with a margin of error of 0.1 of degree. It’s just slightly lower than 110 degrees declared by the producer and it means that the focal length of the lens is really between 7 and 8 mm.

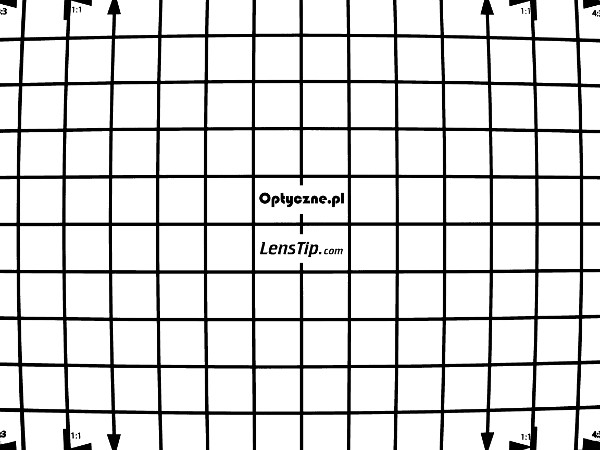

Olympus E-M5 II, JPEG
Venus Optics LAOWA 7.5 mm f/2 MFT - Distortion

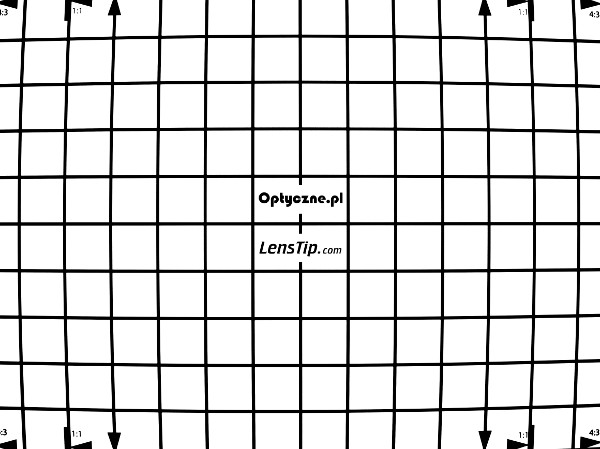

Olympus E-M5 II, RAW
Venus Optics LAOWA 7.5 mm f/2 MFT - Distortion
