Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S.

17 January 2018
Arkadiusz Olech

7. Coma, astigmatism and bokeh

Coma is corrected in a perfect way, no matter whether you use the lens alone or you attach it to the teleconverter. In fact you could change the positions of the thumbnails shown below at random and there would be no difference at all – a round of applause!

E-M5 II, 200 mm, f/2.8, center E-M5 II, 200 mm, f/2.8, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh
E-M5 II, 200 mm, f/4.0, center E-M5 II, 200 m, f/4.0, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

E-M5 II, 280 mm, f/4.0, center E-M5 II, 280 mm, f/4.0, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh
E-M5 II, 280 mm, f/5.6, center E-M5 II, 280 mm, f/5.6, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh


Astigmatism, understood as an average difference between horizontal and vertical MTF50 function values, amounted to just 2.2% so was very low. After attaching the teleconverter its level increased to 3.5% but even then you can call it practically imperceptible.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

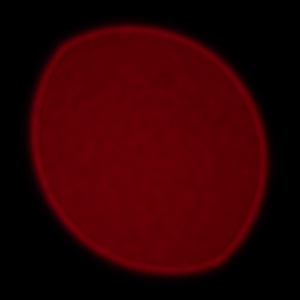

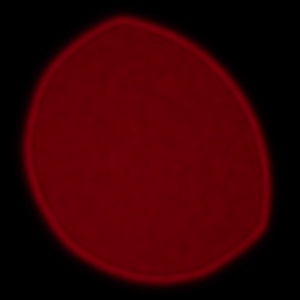

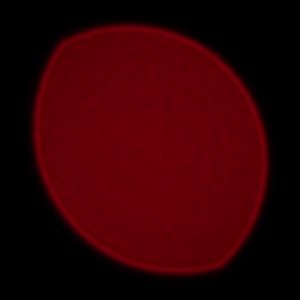

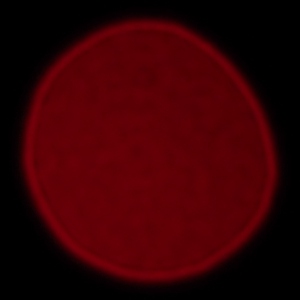

When it comes to the appearance of defocused circles of light we had no reservations of any kind either. A slight rim on the edge and a noticeable influence of mechanical vignetting were the only things that stick out but both these effects are hardly pronounced. The performance in that category should be assessed positively.

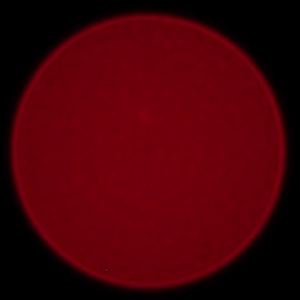

E-M5 II, 200 mm, f/2.8, center E-M5 II, 200 mm, f/2.8, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

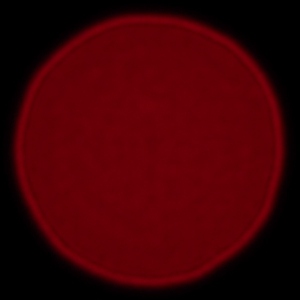

E-M5 II, 200 mm, f/4.0, center E-M5 II, 200 mm, f/4.0, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

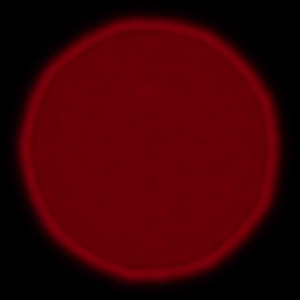

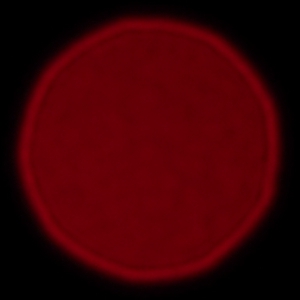

E-M5 II, 200 mm, f/5.6, center E-M5 II, 200 mm, f/5.6, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

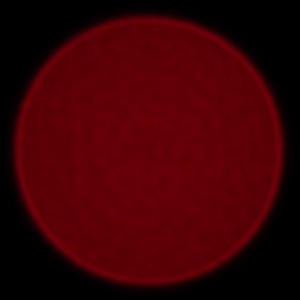

E-M5 II, 280 mm, f/4.0, center E-M5 II, 280 mm, f/4.0, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

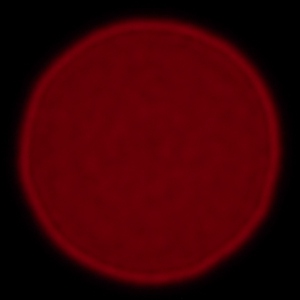

E-M5 II, 280 mm, f/5.6, center E-M5 II, 280 mm, f/5.6, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh

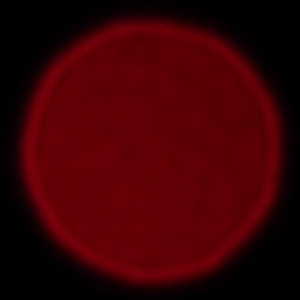

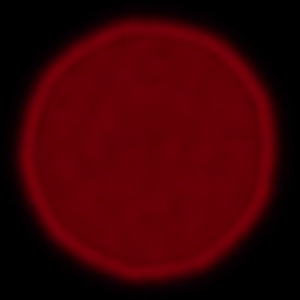

E-M5 II, 280 mm, f/8.0, center E-M5 II, 280 mm, f/8.0, corner
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Coma, astigmatism and bokeh
