LensTip.com

Lens review

Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S.

17 January 2018
Arkadiusz Olech

6. Distortion

With such a focal length we didn’t expect any distortion problems. Still we had to make sure the reality reflected our expectations. What’s more, we had to test both JPEG and RAW files because the first format files are often automatically corrected by the Micro 4/3 system.

We found out the distortion level is practically zero, no matter what file format you use. The official results are as follows: +0.21% for JPEG files and +0.17% for RAW files. Both of these are practically the same and in accordance with each other within the margin of error.

After attaching the lens to the teleconverter the distortion changed its sign but its level remains very low. In the case of JPEG files our result was −0.41%, and −0.40% in the case of RAW files. As you see, for these two file formats both values are again practically the same.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Olympus E-M5 II, 200 mm, JPEG
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Distortion
Olympus E-M5 II, 200 mm, RAW
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Distortion

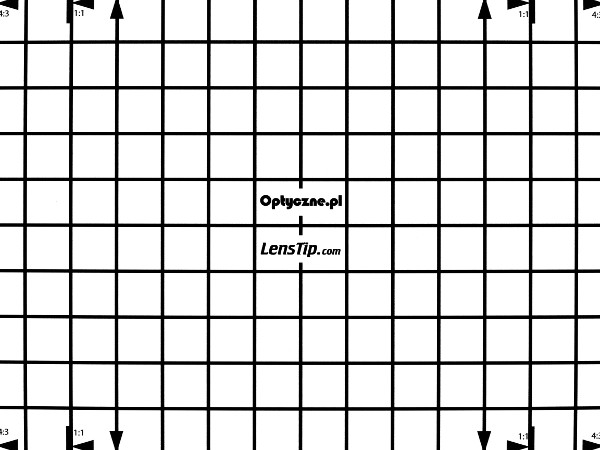

Olympus E-M5 II, 280 mm (TC), JPEG
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Distortion
Olympus E-M5 II, 280 mm (TC), RAW
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Distortion
