Lens review

Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S.

17 January 2018
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails presented below in order to assess the vignetting performance of the tested lens; we measured it for JPEG files created with the help of the Olympus OM-D E-M5 Mark II.

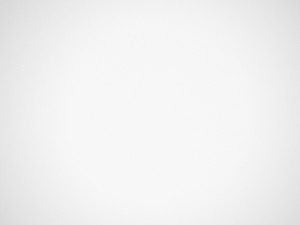

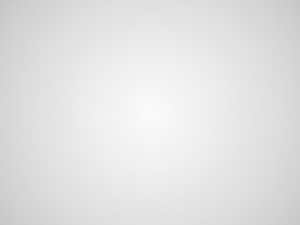

Olympus E-M5 II, 200 mm, f/2.8 Olympus E-M5 II, 200 mm, f/4.0
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting


The vignetting can be noticed only at the maximum relative aperture where it amounts to 20% (−0.66 EV). The problem disappears practically completely by f/4.0 and f/5.6 where it amounts to 11% (−0.35 EV) and 4% (−0.11 EV) respectively.

Now let’s check the situation you get after attaching the teleconverter to the lens; the results are shown in photos below.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

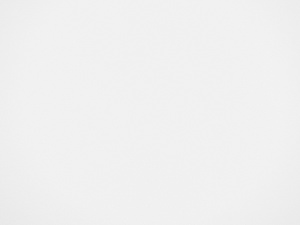

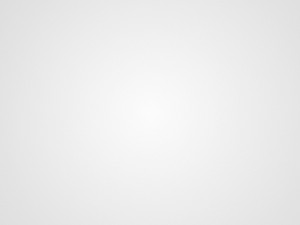

Olympus E-M5 II, 280 mm (TC), f/4.0 Olympus E-M5 II, 280 mm (TC), f/5.6
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting


Here the results are even better. Already at the maximum relative aperture you might have serious problems with noticing any vignetting effect as its level reaches just 11% (−0.34 EV). On stopping down the lens to f/5.6 the vignetting level drops to a really symbolic value of 3% (−0.08 EV).

It’s worth adding that the following results were based on tests conducted by analyzing JPEG files; the results for RAW files are identical, with the maximum difference between those formats amounting to just 1%.

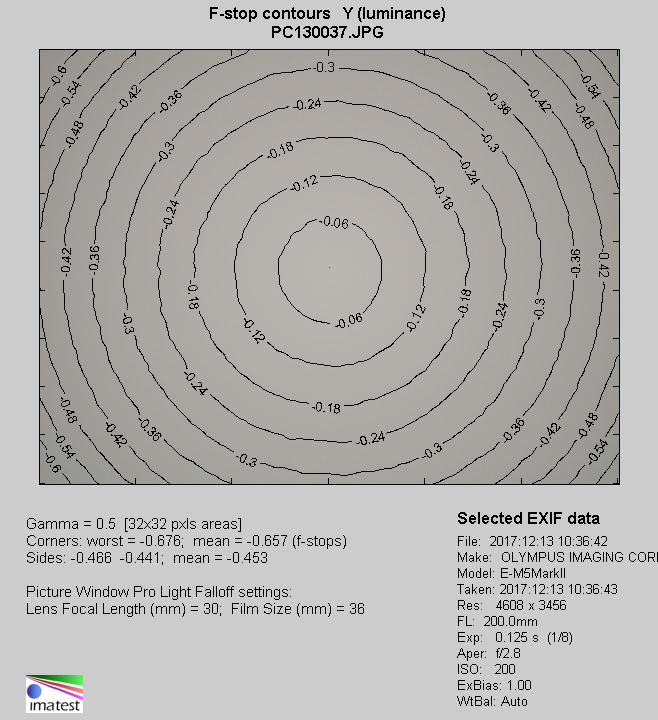

Olympus O-MD E-M5 II, JPEG, 200 mm, f/2.8
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting

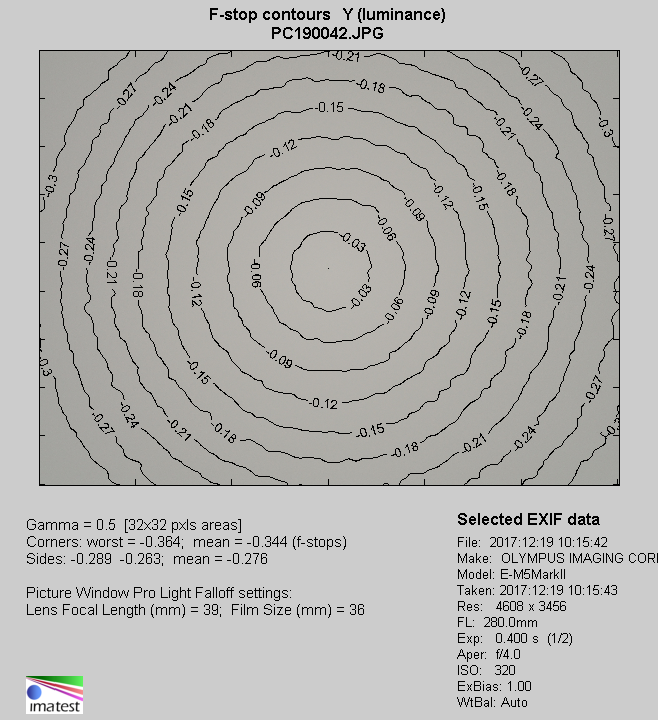

Olympus O-MD E-M5 II, JPEG, 280 mm (TC), f/4.0
Panasonic Leica DG Elmarit 200 mm f/2.8 POWER O.I.S. - Vignetting
