Samyang AF 24 mm f/2.8 FE

11 September 2018
Arkadiusz Olech

3. Build quality

There are plenty of full frame 2.8/24 or similar lenses available on our market so we had no difficulty whatsoever with composing the following chart. It is clear that the new Samsung is physically the smallest and the lightest of all, due to the materials, used in the lens body. The rivals are mostly made of metal or, like in the case of the Canon, they additionally feature an optical stabilization unit. A relatively simple optical construction of the new Samyang is surprising. The Nikkor, a 25-year-old instrument, still has two elements more.

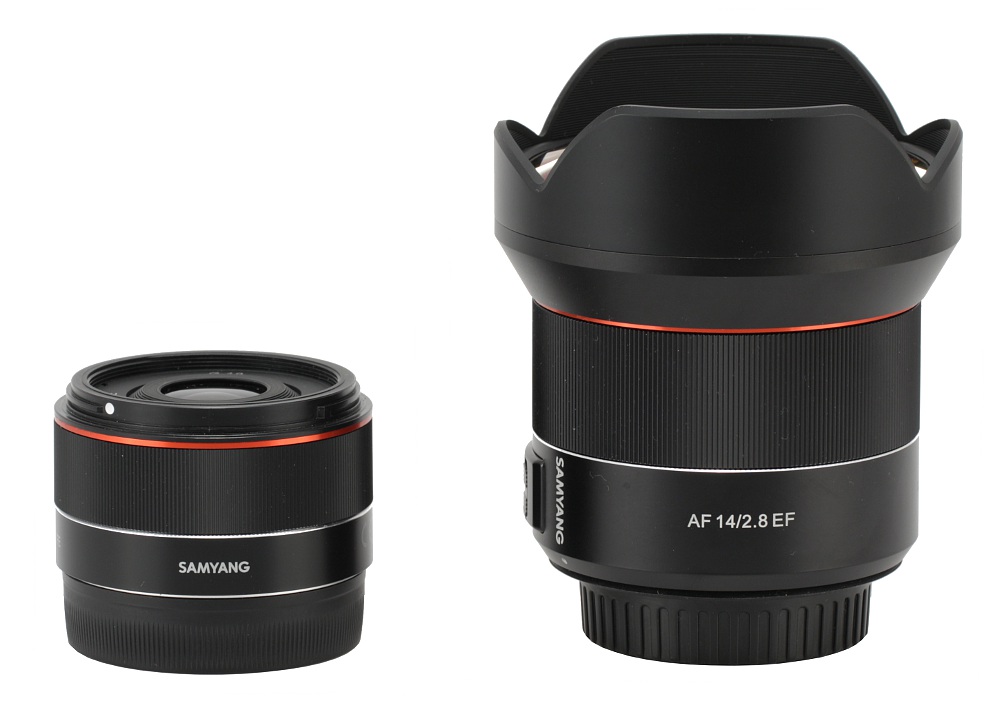

In the photo below the Samyang AF 24 mm f/2.8 FE is positioned next to another model of the same producer with an autofocus, the Samyang AF 14 mm f/2.8 EF.

Samyang AF 24 mm f/2.8 FE - Build quality

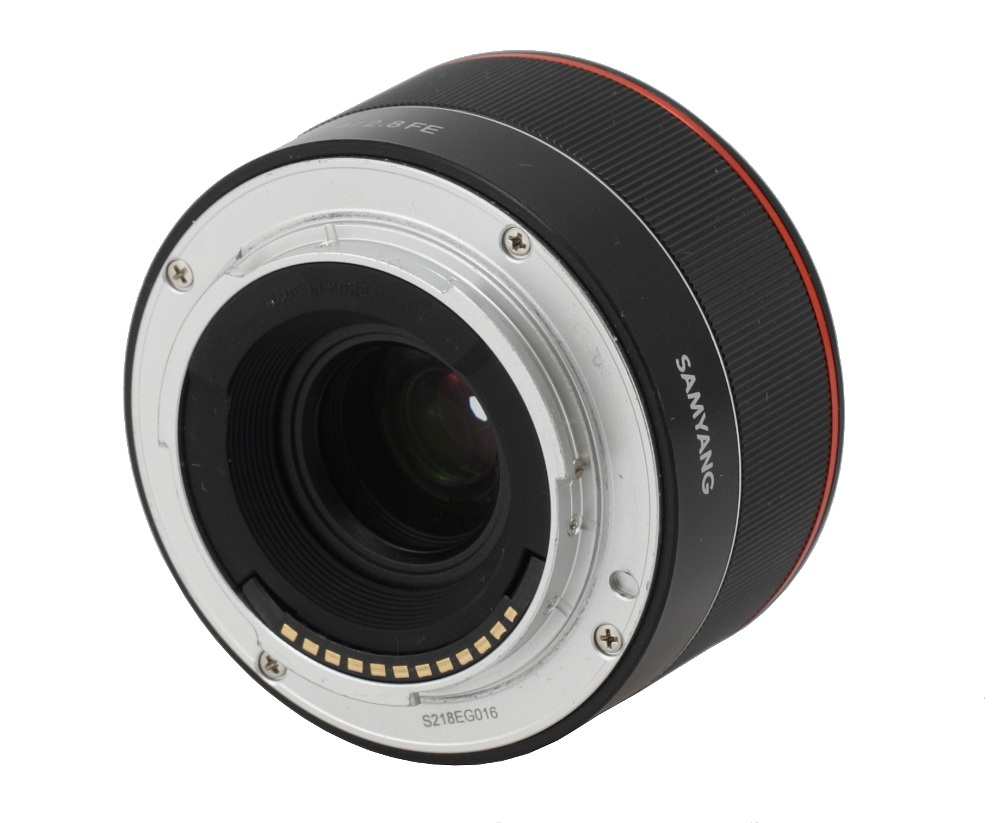

The mount of the tested lens is made of metal; it surrounds contacts and a rear element, 21 mm in diameter. Around that element you see black, well matted and in some places also ribbed plastic with an inscription “MADE IN KOREA”. In the area close to the rear element there are no slits through which you could glimpse electronic parts inside the lens.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Samyang AF 24 mm f/2.8 FE - Build quality

The first part of the proper barrel of the lens is a smooth, black, immobile ring on which you see an inscription with parameters of the instrument (AF 24/2.8 FE), the name of the producer, another information that the lens was made in Korea and a white dot, making an alignment with a camera easier.

Samyang AF 24 mm f/2.8 FE - Build quality

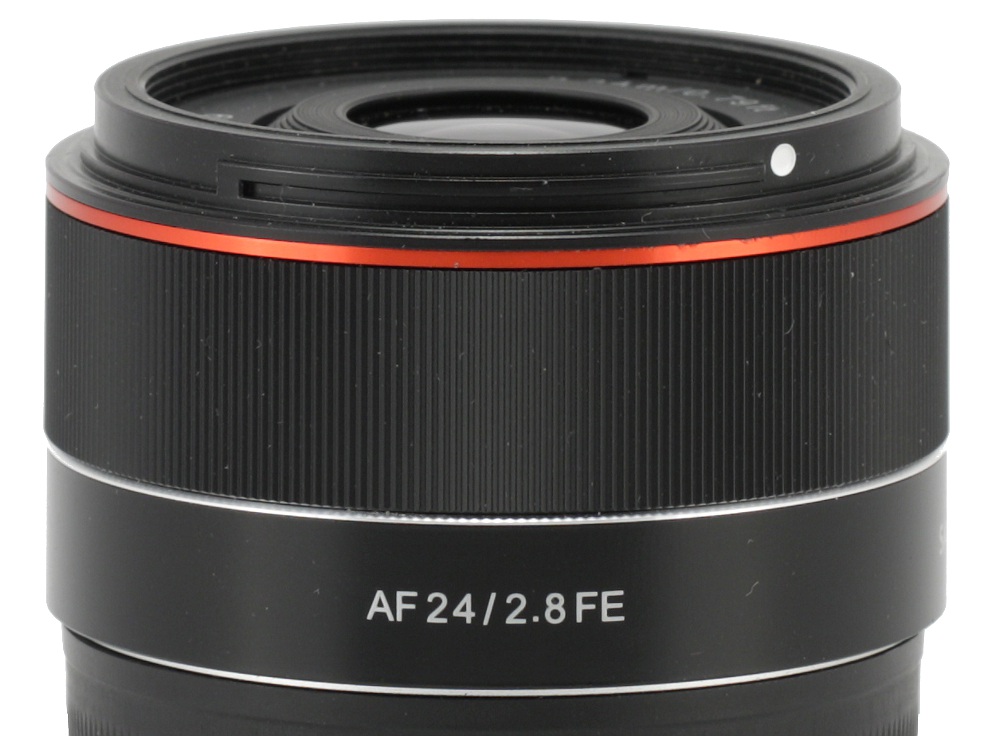

Further on you find a manual focus ring, 17 mm wide, completely covered by fine ribbing. It is a focus-by-wire construction and it allows you quite precise settings because even if you turn it rather fast running through the full distance scale needs a turn though an angle of about 100-120 degrees. As the lens is equipped with contacts it can communicate with the body so you can profit from the focus peaking function on an automatically enlarged image. Still the ring doesn’t have either a distance scale (even though that scale appears on the display panel of the camera if you switch to the MF mode) or a depth of field scale.

Samyang AF 24 mm f/2.8 FE - Build quality

Next parts are a narrow ring, gleaming with metallic red, and the ending part of the lens in a form of a hood mount.

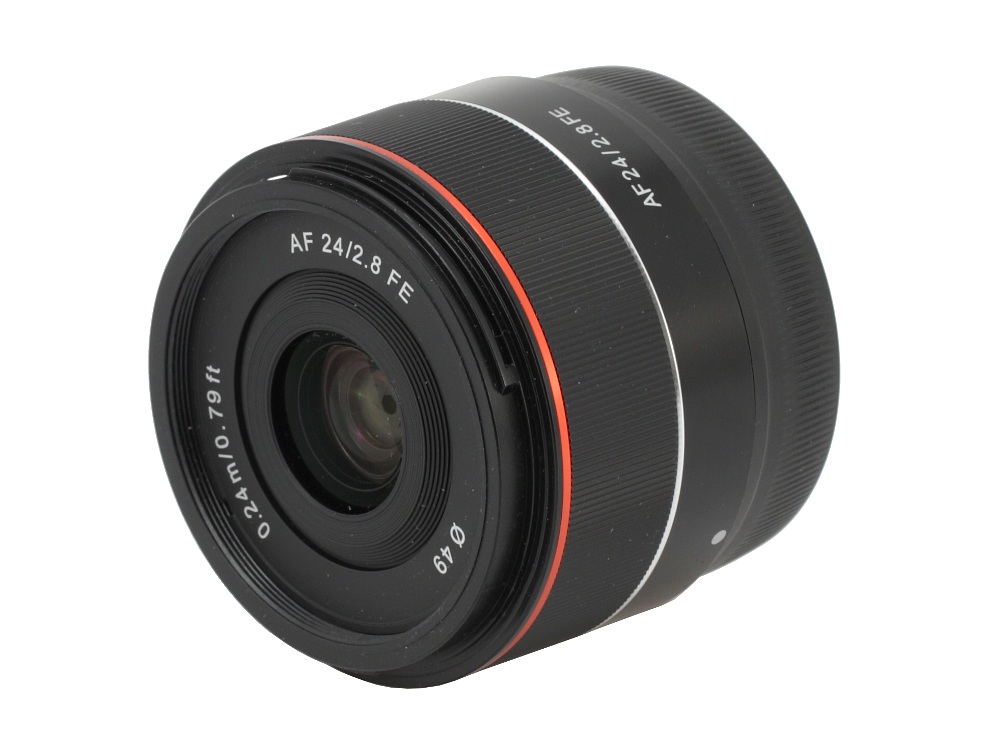

The front element of the lens doesn’t move and is only 20 mm in diameter. It is surrounded by a non-rotating filter thread, 49 mm in diameter, and an inscription with the parameters of the lens.

Samyang AF 24 mm f/2.8 FE - Build quality

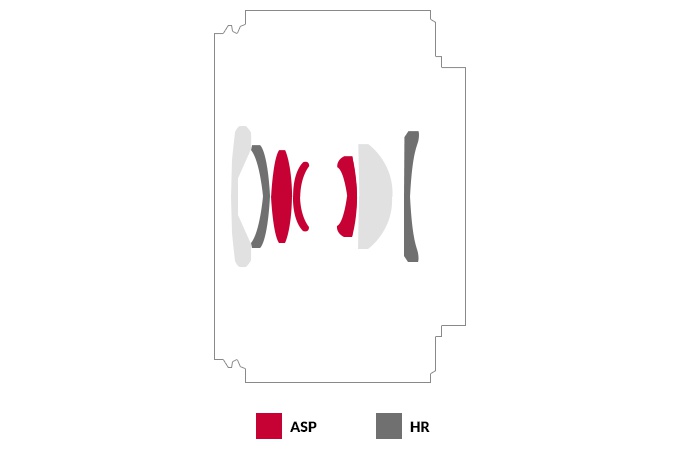

When it comes to optical construction it is not especially complex – you deal here with just 7 elements positioned in 7 groups. It is interesting, though, that the lens features more special elements that normal ones. It is, most likely, an explanation of the low number of elements overall, particularly if compared to older constructions which based on ordinary glass. The new Samyang has as many as three aspherical elements and two made of high refraction index glass. There is no low dispersion glass element. Inside you find also an aperture with seven blades which can be closed down to a value of f/22 at the maximum.

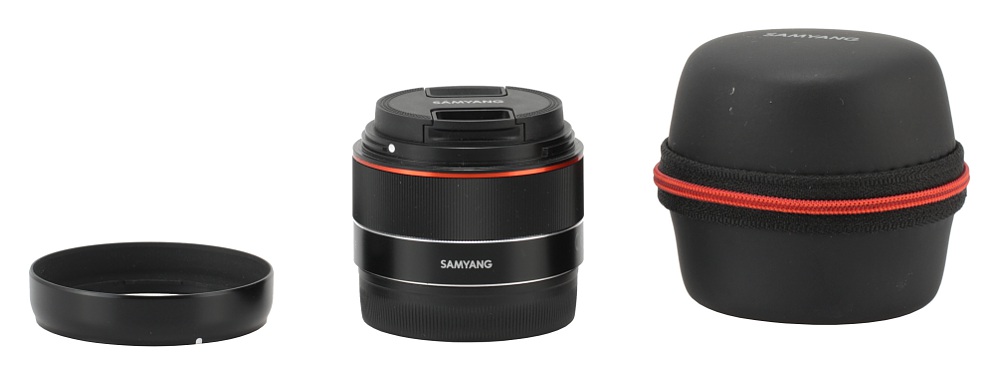

Buyers get both caps, a hood and a stylish, hard case. It is a rich accessory kit, taking the price of the lens into account.

Samyang AF 24 mm f/2.8 FE - Build quality
