LensTip.com

Lens review

Samyang 85 mm f/1.8 ED UMC CS

5 October 2018
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

Although the lens features just one ED glass element it is obvious that it cooperates with the rest of the optical system well enough to ensure appropriate correction of the longitudinal chromatic aberration. Photos, shown below don’t feature anything worrisome.

Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration

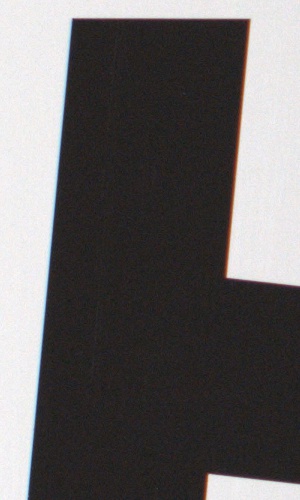

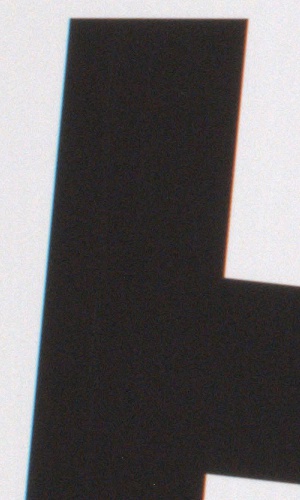

The lateral chromatic aberration is also not a serious problem for the tested lens and the graph below shows it pretty well.

Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Perhaps these are not perfect results, because we call them so if the lens’s aberration is 0.04% or lower, but still we are among values that can be described as low. On stopping down they get closer to medium ones but, fortunately, they never reach them.

Fujifilm X-T2, RAW, f/1.8 Fujifilm X-T2, RAW, f/16.0
Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration


Spherical aberration

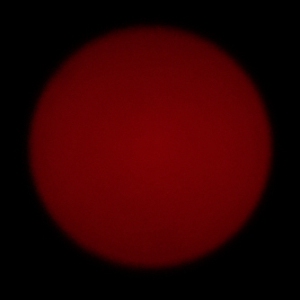

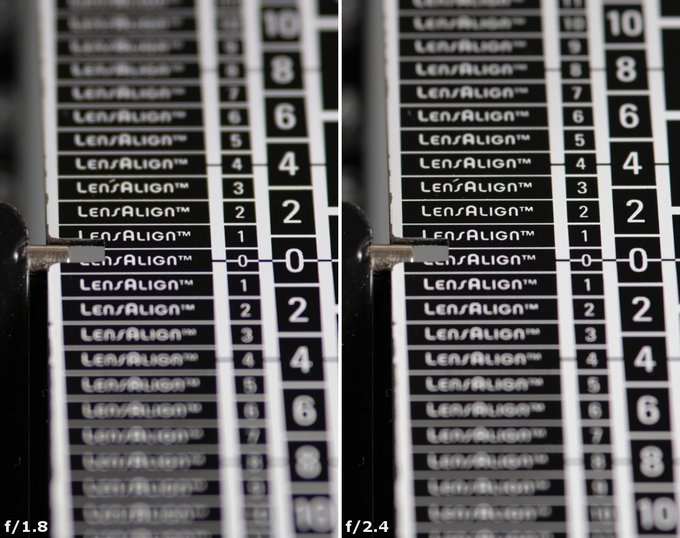

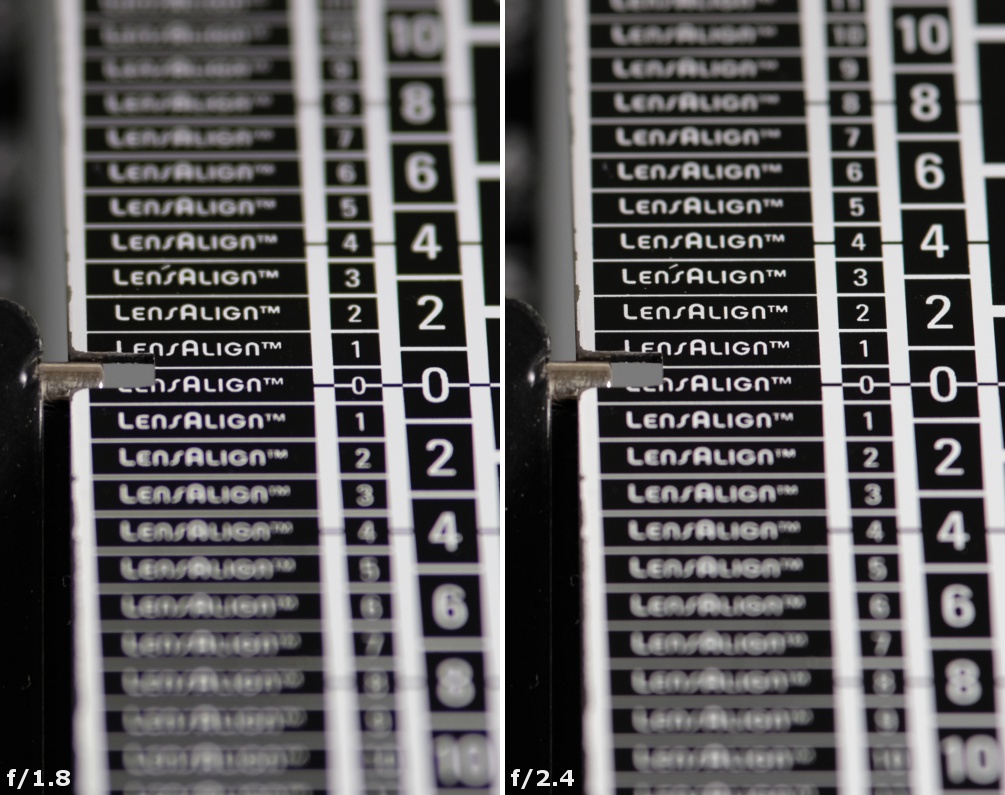

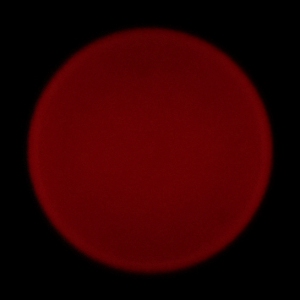

When it comes to the spherical aberration correction you can express some reservations. First photos of this chapter do show a focus shift. After closing down the aperture from f/1.8 to f/2.4 the depth is noticeably shifted toward longer distances. What’s more, defocused circles of light reached before and after the focus are distinctly different, a quite characteristic feature for not properly corrected spherical aberration. Still we have to add it is not an especially serious problem because the image quality near f/1.8 remains very good and photos you get by that relative aperture aren’t misted, often a characteristic sign of serious problems related to spherical aberration.

X-T2, f/1.8, in front of X-T2, f/1.8, behind
Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration Samyang 85 mm f/1.8 ED UMC CS - Chromatic and spherical aberration
