LensTip.com

Lens review

Samyang 85 mm f/1.8 ED UMC CS

5 October 2018
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below in order to assess the vignetting of the tested lens. We created the JPEG files, used in this category, with the help of the Fujifilm X-T2 camera.

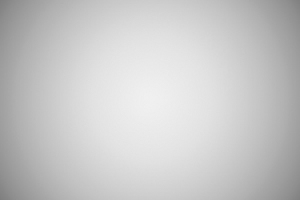

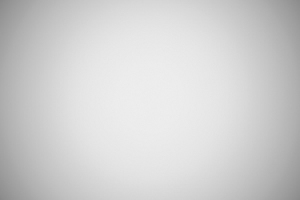

Fujifilm X-T2, f/1.8 Fujifilm X-T2, f/2.0
Samyang 85 mm f/1.8 ED UMC CS - Vignetting Samyang 85 mm f/1.8 ED UMC CS - Vignetting

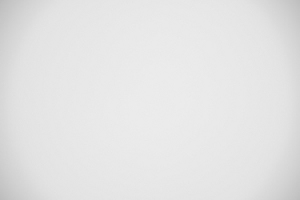

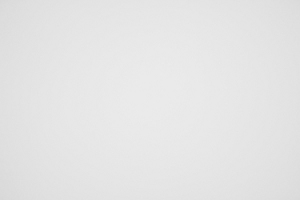

Fujifilm X-T2, f/2.8 Fujifilm X-T2, f/4.0
Samyang 85 mm f/1.8 ED UMC CS - Vignetting Samyang 85 mm f/1.8 ED UMC CS - Vignetting


Here small physical dimensions of the Samyang make themselves felt. At the maximum relative aperture the brightness loss in the frame corners amounts to as much as 46% (−1.77 EV) and it is a high result, especially in a case of a lens designed for a sensor smaller than full frame. After employing f/2.0 the vignetting decreases to a still significant value of 41% (−1.51 EV). You can get rid of that aberration only by f/2.8 where it reaches a moderate level of 19% (−0.62 EV); it disappears practically completely only after employing f/4.0, where it amounts to just 7% (−0.22 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Fujifilm X-T2, JPEG, f/1.8
Samyang 85 mm f/1.8 ED UMC CS - Vignetting
