Lens review

Venus Optics LAOWA 12 mm f/2.8 ZERO-D

9 January 2019
Arkadiusz Olech

6. Distortion

ZERO-D in the name of the tested lens suggests that distortion correction is a special priority here. Still it is true only in the case of the APS-C/DX sensor where we got a result of −0.72%, meaning distortion is nothing to worry about.

If you progress to full frame, that aberration increases to −2.02%; if Laowa didn’t boast of that ZERO-D I would consider it a quite sensible result, of course taking into account the angle of view provided by the lens. However if the producer states that they managed to correct distortion perfectly well our expectations quite naturally increase and a result on a level of −2% is definitely not a value we would like to see.

We performed one more experiment. We decided to move the focus ring to infinity and stop the aperture down significantly while taking photos of our distortion testing chart – all that was done to get a sharp image even though the lens was positioned very close to the chart. In that case the distortion amounted to −2.39% so was slightly higher than in the situation when the focus ring was set at a distance distinctly below 1 meter. It is a very interesting effect – distortion values of all other lenses we’ve performed that experiment on were actually lower with the focus ring set at infinity.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

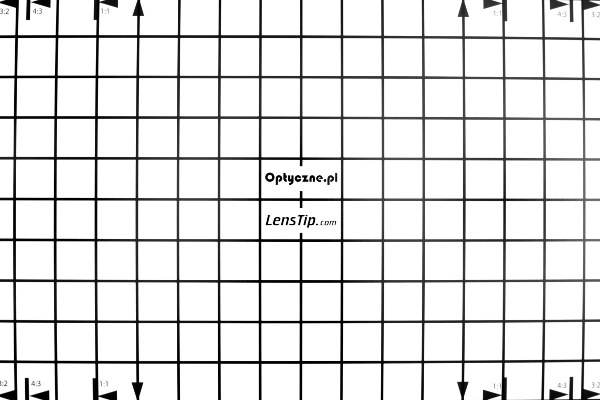

Canon 50D, 12 mm
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Distortion
Canon 5D MkIII, 12 mm, close distance
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Distortion
Canon 5D MkIII, 12 mm, far distance
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Distortion
