LensTip.com

Lens review

Venus Optics LAOWA 12 mm f/2.8 ZERO-D

9 January 2019
Arkadiusz Olech

8. Vignetting

Let’s check first how the Laowa 2.8/12 deals with vignetting on the small sensor of the Canon 50D – appropriate thumbnails are presented below.

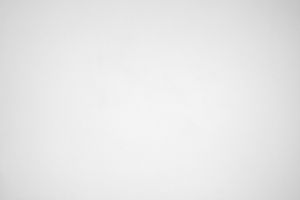

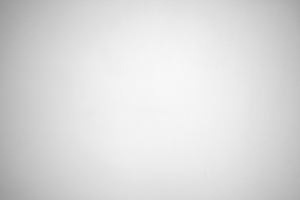

Canon 50D, f/2.8 Canon 50D, f/4.0
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting


No reason to worry – at the maximum relative aperture the vignetting amounts to 34% (−1.19 EV), and by f/4.0 and f/5.6 it decreases to 16% (−0.51 EV) and 13% (−0.41 EV) respectively.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s check how the situation changes when you pass to full frame – below we present photos taken with the lens attached to the Canon EOS 5D Mark III.

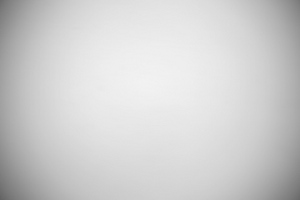

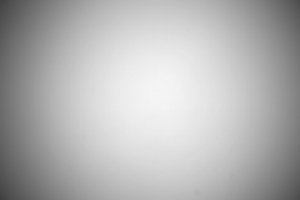

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting

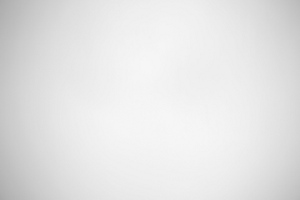

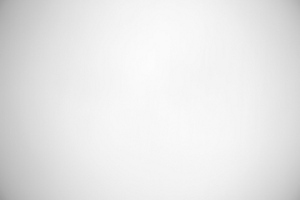

Canon 5D III, f/5.6 Canon 5D III, f/8.0
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting


When you combine moderate physical dimensions, good aperture fastness for a given focal length and a huge angle of view you have to reap what you have sown. At the maximum relative aperture the vignetting reaches a monstrous level of 71% (−3.54 EV), easily one of the highest results seen in our tests so far. After passing to f/4.0 the brightness loss decreases to a still very high value of 54% (−2.24 EV). That aberration also remains visible by f/5.6, where it reaches 33% (−1.15 EV). By f/8.0 we got a result of 27% (−0.93 EV), and further stopping down didn’t have any measureable effect on the level of this aberration.

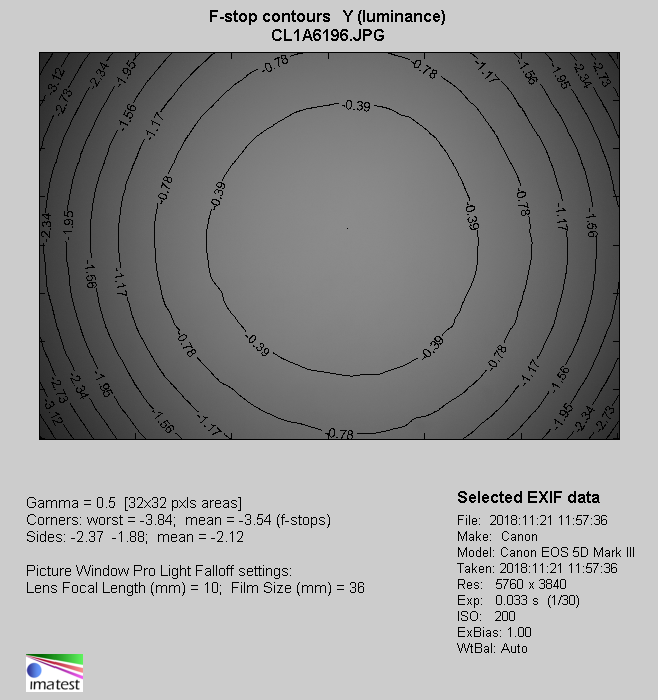

Canon 5D III, JPEG, f/2.8
Venus Optics LAOWA 12 mm f/2.8 ZERO-D  - Vignetting
