LensTip.com

Lens review

Fujifilm Fujinon XF 16 mm f/2.8 R WR

23 July 2019
Arkadiusz Olech

8. Vignetting

Let's see how the tested lens corrects vignetting both for JPEG and RAW files which were developed by an independent program.

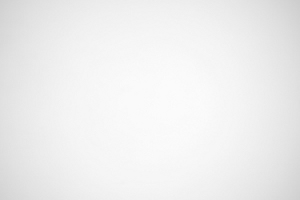

X-T2, JPEG, f/2.8 X-T2, RAW, f/2.8
Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting

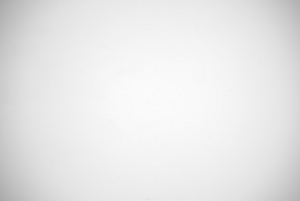

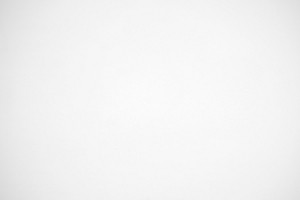

X-T2, JPEG, f/4.0 X-T2, RAW, f/4.0
Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting

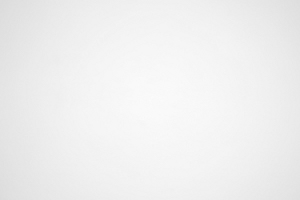

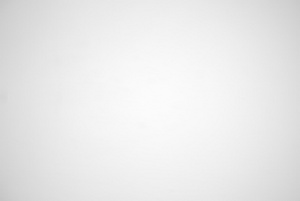

X-T2, JPEG, f/5.6 X-T2, RAW, f/5.6
Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting


Keeping in mind high distortion level and a huge area in the corners which had to be cut out after its correction we expected big differences bewteen JPEG and RAW files measurements. We were right. For JPEG file format the brightness loss in frame corners would be difficult to notice because it amounts to a moderate level of 17% (−0,54 EV) even by f/2.8. On stopping down the aperture to f/4.0 the level of this aberration decreases to 12% (−0.37 EV), and by f/5.6 it reaches just 11% (−0.33 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the case of RAW files, at the maximum relative aperture you have to deal with a high vignetting level, amounting to 48% (−1.87 EV). By f/4.0 it decreases to 30% (−1.04 EV), and by f/5.6 - to 20% (−0.64 EV). Further stopping down had just a symbolic influence because by f/8.0 and f/11.0 it reached, respectively, 19% (−0.60 EV) and 18% (−0.58 EV).

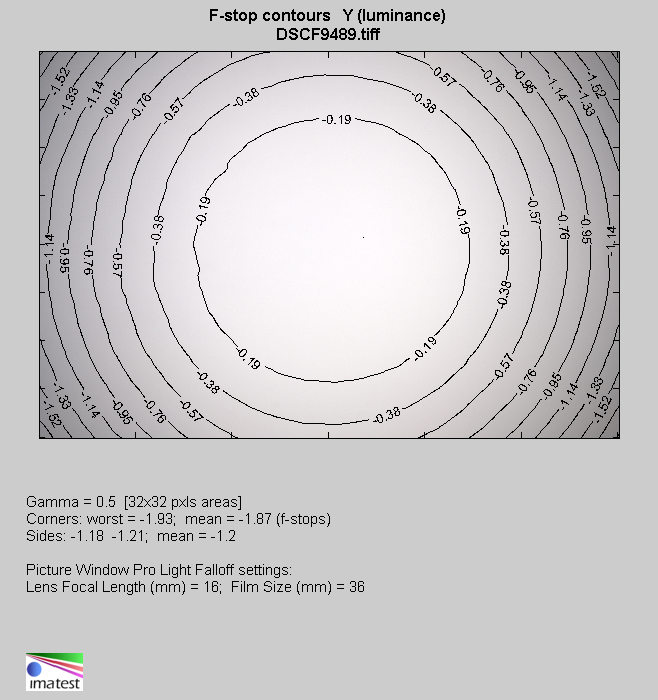

Fujifilm X-T2, RAW, f/2.8
Fujifilm Fujinon XF 16 mm f/2.8 R WR - Vignetting
