3. Build quality

The parameters of the Sigma 2.8/45 are quite unusual so it doesn't have many direct rivals. In our chart we compared it to full frame f/2.8 lenses which focal lengths range from 35 to 45 mm. It's easy to notice at once that the Sigma is the biggest, the heaviest and also optically the most complex instrument of all. It also features the biggest filter diameter. In return it offers you an advantage in a form of the shortest minimum focusing distance.

In the photo below the Sigma C 45 mm f/2.8 DG DN is positioned next to the Sigma A 24–70 mm f/2.8 DG DN and the Sigma A 35 mm f/1.4 DG DC designed for reflex cameras.

Sigma C 45 mm f/2.8 DG DN - Build quality

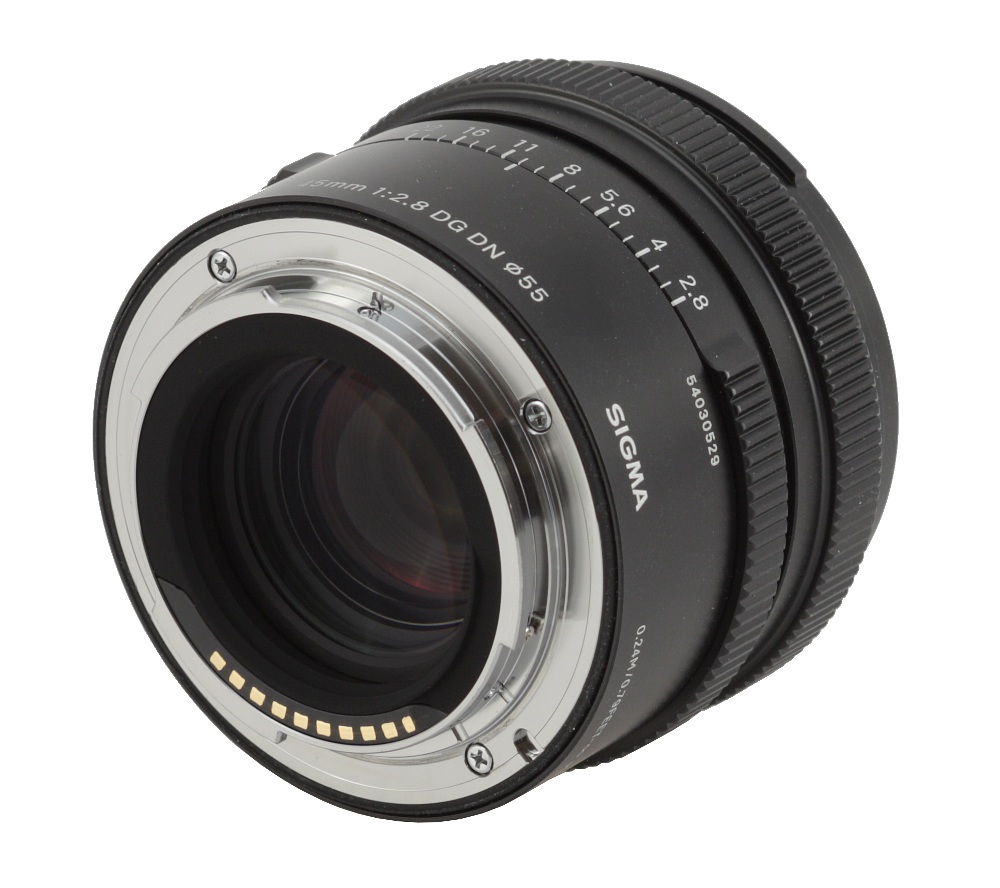

The tested lens starts with a metal mount which goes round contacts and an immobile rear element, 31 mm in diameter. The area surrounding the rear element is very nicely blackened and matted so, from this side, everything looks very nice.

Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Sigma C 45 mm f/2.8 DG DN - Build quality

The proper body of the lens starts with a smooth, metal ring painted black, providing a lot of useful information. You get an inscription with the name and parameters of the lens, the producer's logo, the 'C' letter, meaning the lens is qualified as a part of the Contemporary series, '019' indicating model year, an inscription 'MADE IN JAPAN', the focusing mechanism working range „0.24M/0.79FEET–∞”, a white dot, making an alignment with a camera easier, and, finally, a focusing mechanism mode switch (AF/MF).

Sigma C 45 mm f/2.8 DG DN - Build quality

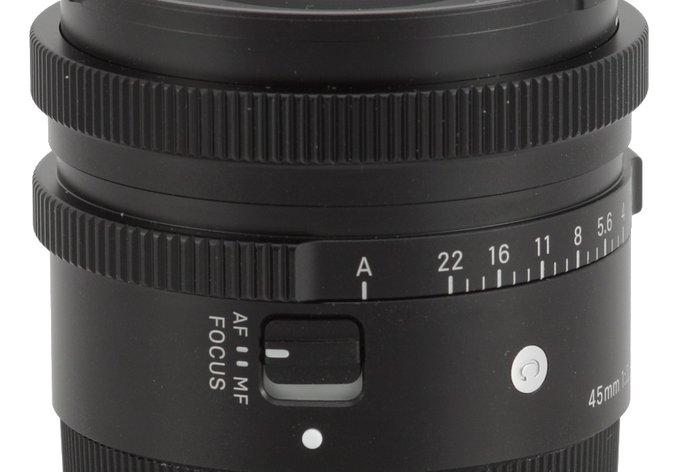

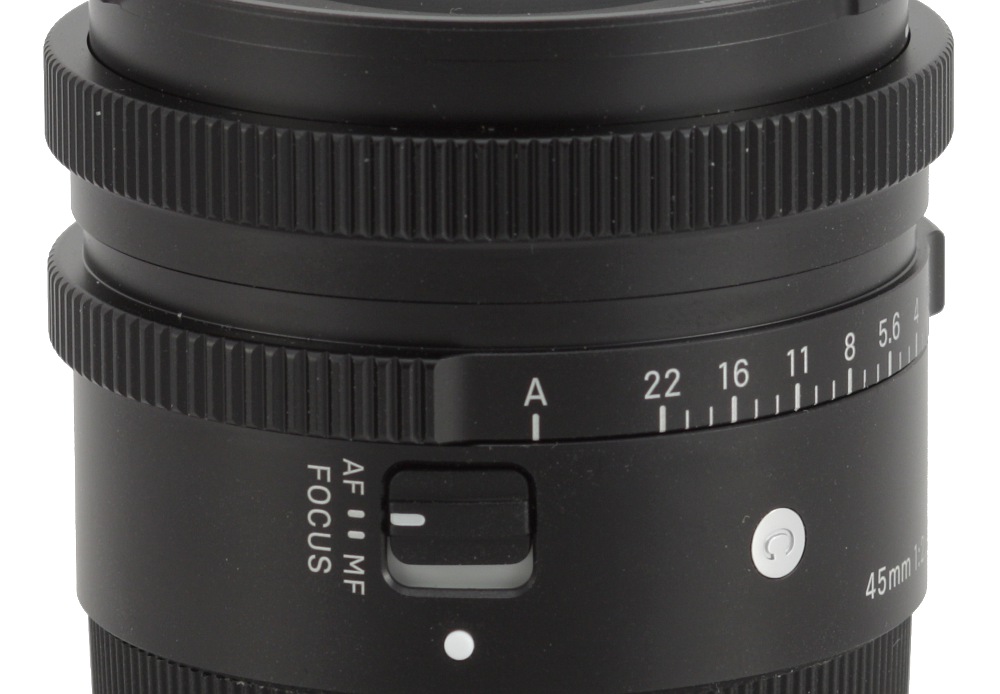

The next part is an aperture ring, 10 mm wide, with convex ribbing on the sides which ensures you firmer grip and easier turning. The ring comes with aperture marks from f/2.8 to f/22, complete with markings for the full apertures and every 1/3 step, and also A position, providing full auto aperture control. The performance of this ring is really beyond reproach.

The next ring,12 mm wide, is responsible for manual focusing. It doesn't have any markings and more than half of its surface is covered by ribbing. It is a focus-by-wire construction which works very smoothly. Even if you turn it fast, running through the whole distance range takes an angle of about 200 degrees. It is a high value, allowing you very precise settings.

Sigma C 45 mm f/2.8 DG DN - Build quality

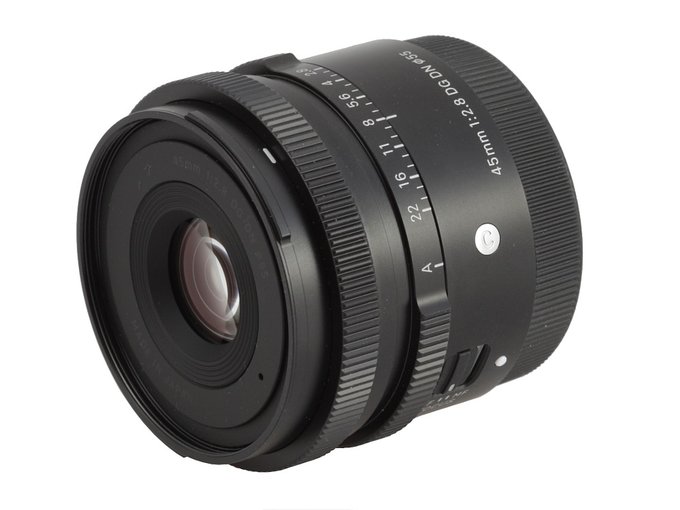

The lens ends with an immobile, metal ring; on it you can find a hood mount, surrounded by a thread that accepts 55 mm filters and doesn't rotate on focus.

The front element is just 20 mm in diameter and it doesn't move. It is surrounded by black barrel on which you can find a black inscription 'MADE IN JAPAN' and basic parameters of the lens.

Sigma C 45 mm f/2.8 DG DN - Build quality

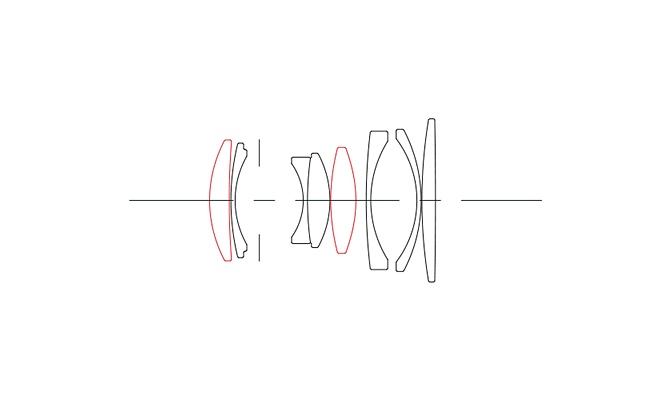

When it comes to optical construction you deal here with 8 elements positioned in 7 groups, two special aspherical elements among them. Inside, there is also a round aperture with seven diaphragm blades that can be closed down to a value of f/22 at the maximum.

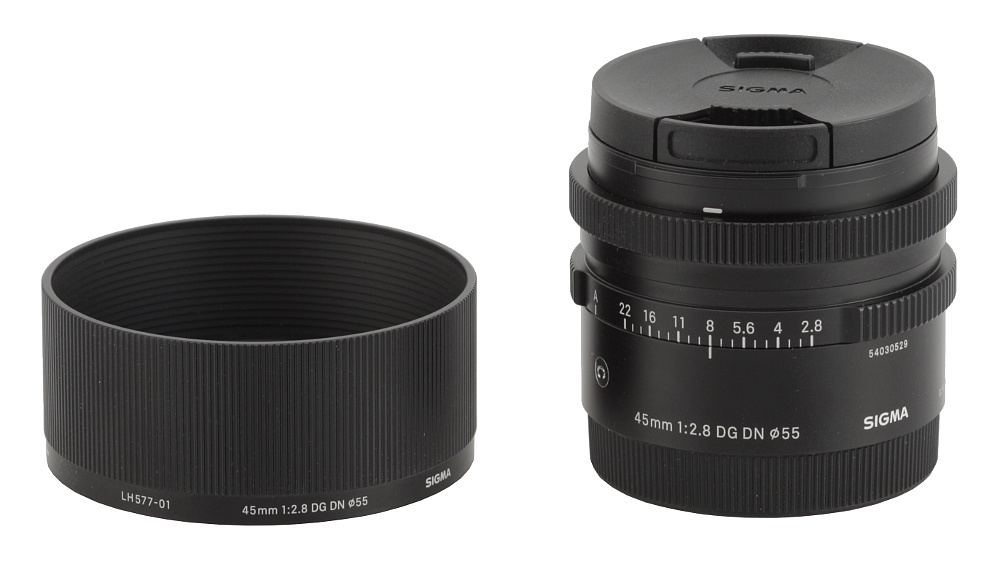

Buyers get in the box with the lens: both caps and a metal hood with a new, more precise holding system.

Sigma C 45 mm f/2.8 DG DN - Build quality
