LensTip.com

Lens review

Sigma C 45 mm f/2.8 DG DN

28 February 2020
Maciej Latao

8. Vignetting

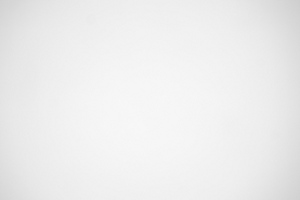

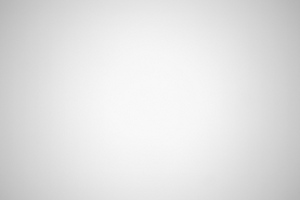

First let's check the performance of vignetting on the smaller APS-C sensor – appropriate thumbnails can be found below.

A7RII, APS-C, f/2.8 A7RII, APS-C, f/4.0
Sigma C 45 mm f/2.8 DG DN - Vignetting Sigma C 45 mm f/2.8 DG DN - Vignetting


In this case you get some chances to notice vignetting practically only at the maximum relative aperture, where it amounts to 26%(−0.87 EV). By f/4.0 it drops to a low level of 15% (−0.46 EV), and by f/5.6 it disappears almost completely, reaching officially just 10% (−0.31 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

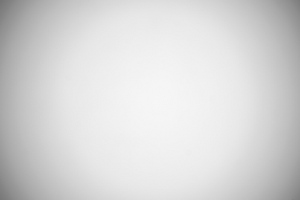

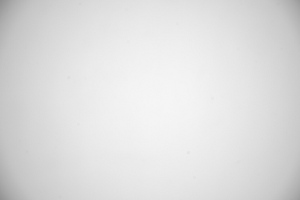

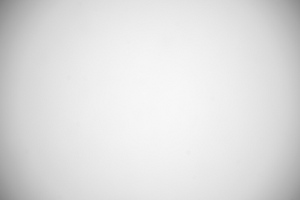

Now let's check the situation on full – appropriate thumbnails you can find below.

A7RII, FF, f/2.8 A7RII, FF, f/4.0
Sigma C 45 mm f/2.8 DG DN - Vignetting Sigma C 45 mm f/2.8 DG DN - Vignetting
A7RII, FF, f/5.6 A7RII, FF, f/8.0
Sigma C 45 mm f/2.8 DG DN - Vignetting Sigma C 45 mm f/2.8 DG DN - Vignetting


According to our expectations, there are far more problems. At the maximum relative aperture brightness loss in frame cornes amounts to as much as 62% (−2.76 EV). Also byf/4.0 and f/5.6 you'll be able to notice vignetting without any problems as its level amounts to, respectively, 50% (−2.01 EV) and 44% (−1.69 EV). What's more, that aberration reacts sluggishly to stopping down so by f/8.0 you still deal with a high result of 38% (−1.38 EV). It remains visible also by f/11.0 and f/16.0 apertures, where it reaches, respectively, 32% (−1.11 EV) and 28% (−0.94 EV).

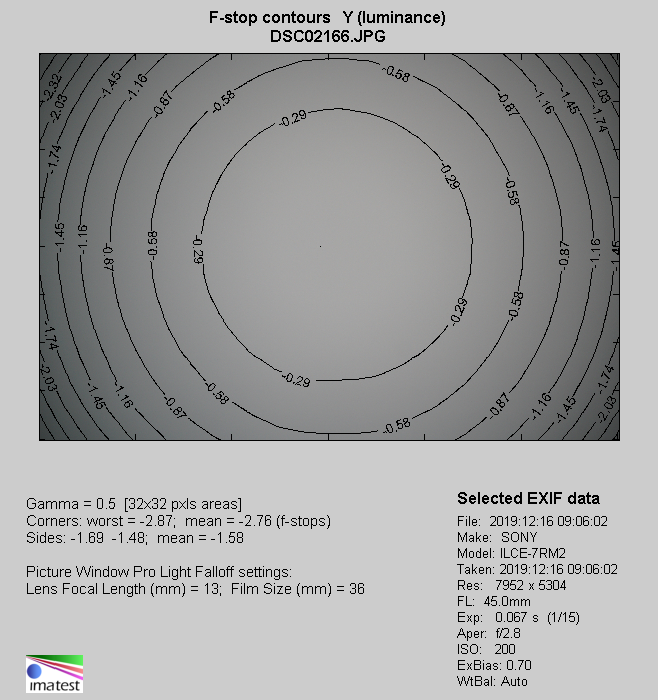

Sony A7RII, JPEG, f/2.8
Sigma C 45 mm f/2.8 DG DN - Vignetting
