5. Chromatic and spherical aberration

Chromatic aberration

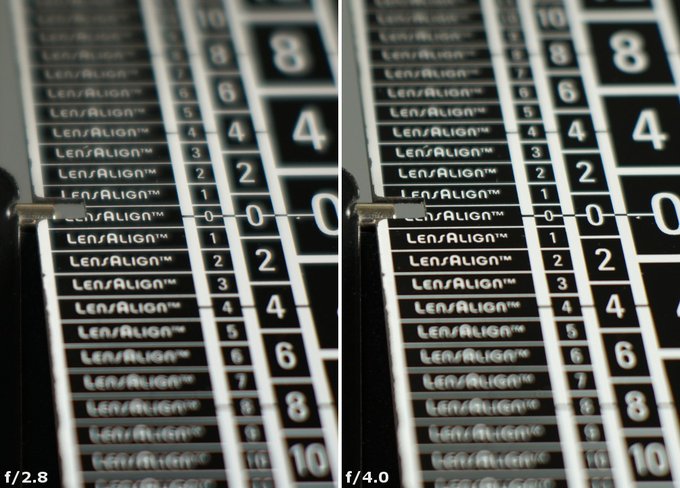

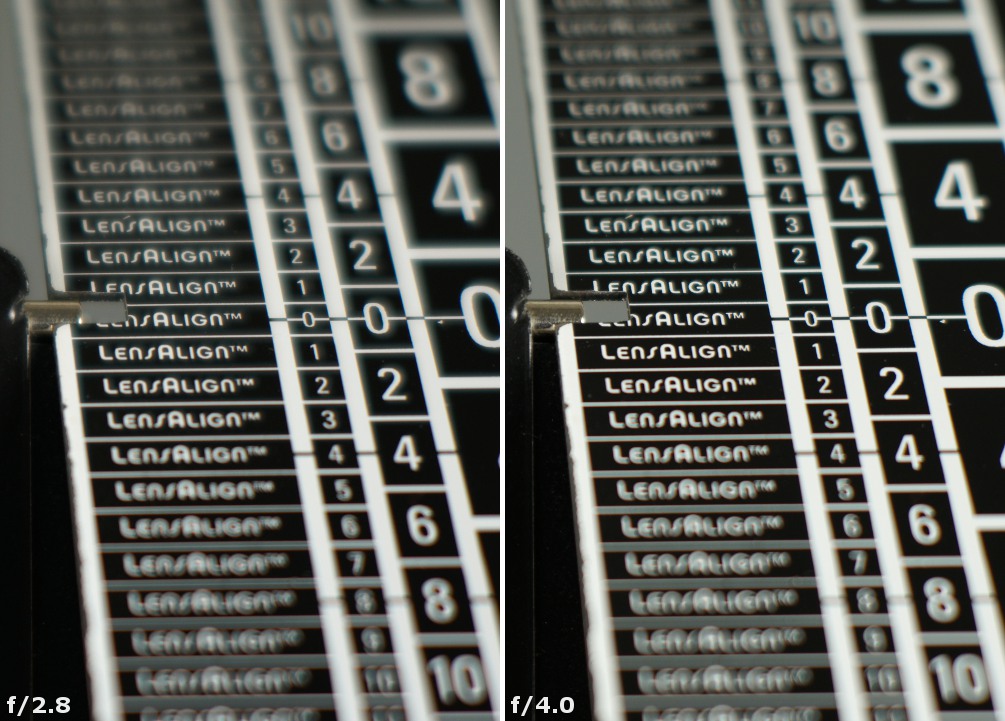

The Sigma C 45mm f/2.8 DGDN doesn't have any problems with correction of longitudinal chromatic aberration. Colouring of out-of-focus images is really very slight so it shouldn't bother you in real life photographs.

Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration


Now let's check the correction of lateral chromatic aberration – the graph below presents its performance depending on aperture values for both types of detectors.

Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The performance, once again, should be called excellent. The results are within a very low level, ranging from 0.01 to 0.04%. In practice it means that aberration won't be felt at all.

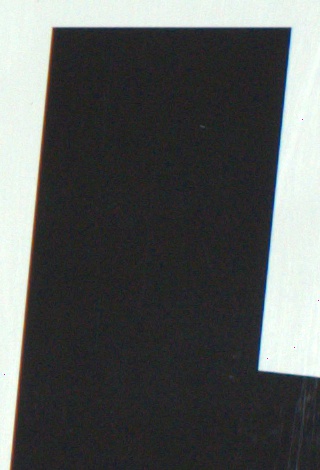

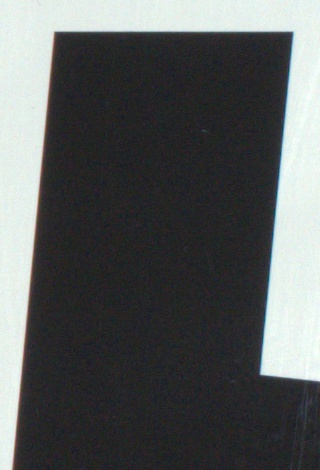

A7RII, RAW, f/2.8 A7RII, RAW, f/11.0
Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration


Spherical aberration

In first photos of this chapter it would be difficult to notice any traces of 'focus shift' but when you look at defocused circles of light you'll find that spherical aberration remains present. The circle before the focus shows a quite even light spread but the one we got after the focus is characterized by a light rim.

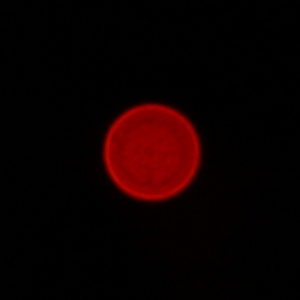

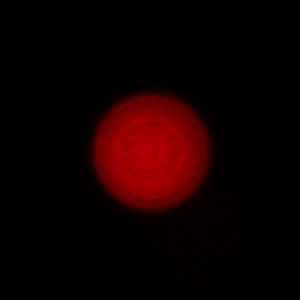

A7RII, f/2.8, before A7RII, f/2.8, after
Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration Sigma C 45 mm f/2.8 DG DN - Chromatic and spherical aberration
