Sigma C 45 mm f/2.8 DG DN

28 February 2020
Maciej Latałło

6. Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Standard 50 mm class lenses most often show barrel distortion; the best of them have results near −0.50%, in the case of the worst distortion might even reach−1.50%. There was one exception to this rule in the FE system - it featured pincushion variant of distortion and that aberration was really pronounced, especially taking into account parameters of the lens. We think here of the Zeiss Sonnar 1.8/55 and its result of +1.48%.

The Sigma C 45 mm f/2.8 DG DN has a shorter focal length and a wider angle of view than classic 50 mm lenses and it made us expect barrel distortion even more. Meanwhile the tested lens, like the Sonnar with a longer focal length, shows 'pincushion' deformations. They would be difficult to notice on the APS-C sensor, as their value amounts to just +0.20% but on full frame you get a better chance to observe it, with distortion increasing to +1.09%. Still, when it comes to absolute values, it is not something that diverges significantly from a typical performance in this category.

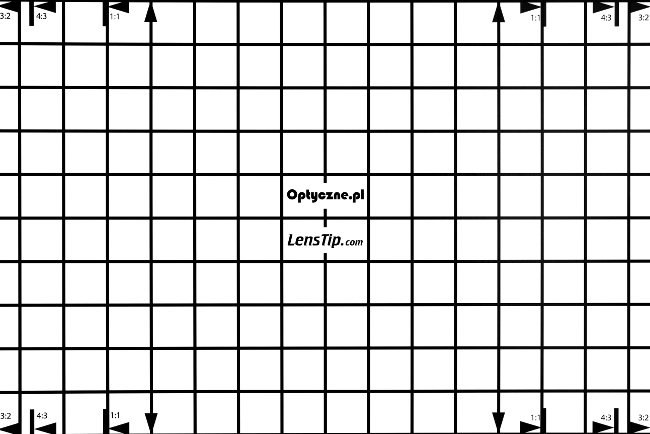

Sony A7R II, 45 mm, APS-C
Sigma C 45 mm f/2.8 DG DN - Distortion

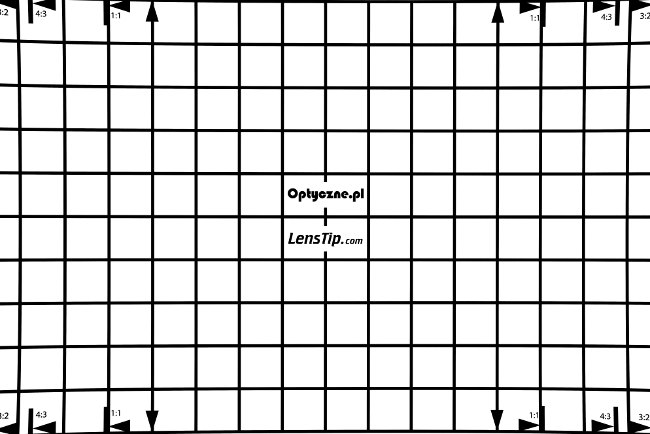

Sony A7R II, 45 mm, FF
Sigma C 45 mm f/2.8 DG DN - Distortion
