8. Vignetting

First let's check the vignetting level on the smaller APS-C sensor – appropriate thumbnails you can find below.

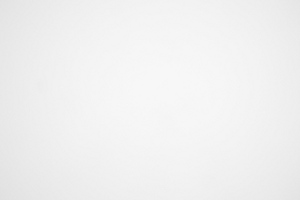

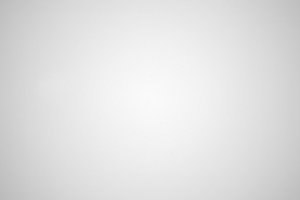

A7R II, APS-C, f/2.0 A7R II, APS-C, f/2.8
Carl Zeiss Batis 40 mm f/2 CF  - Vignetting Carl Zeiss Batis 40 mm f/2 CF  - Vignetting


In this case only at the maximum relative aperture you get any chances to notice vignetting as it amounts to 24% (−0.81 EV). By f/2.8 it disappear practically completely, decreasing to 8% (−0.24 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

On passing to the bigger full frame sensor there are far more problems as you can notice while glancing at photos below.

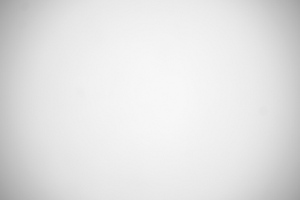

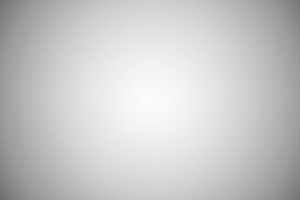

A7R II, FF, f/2.0 A7R II, FF, f/2.8
Carl Zeiss Batis 40 mm f/2 CF  - Vignetting Carl Zeiss Batis 40 mm f/2 CF  - Vignetting

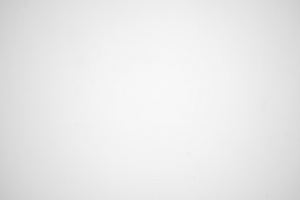

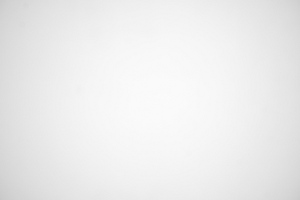

A7R II, FF, f/4.0 A7R II, FF, f/5.6
Carl Zeiss Batis 40 mm f/2 CF  - Vignetting Carl Zeiss Batis 40 mm f/2 CF  - Vignetting


The result we got at the maximum relative aperture is 55% (−2.28 EV). It's a lot but in the case of a lens designed for mirrorless Sony cameras we've seen far weaker results and they concerned even lenses slower aperture-wise than the Batis, tested here. In other words it's not someting you should terribly worry about.

By f/2.8 vignetting decreases to 35% (−1.23 EV), and by f/4.0 to 19% (−0.61 EV). Further stopping down of the aperture influences weakly the aberration, described in this chapter, because by f/5.6 and f/8.0 we got the following values: 18% (−0.58 EV) and 17% (−0.55 EV).

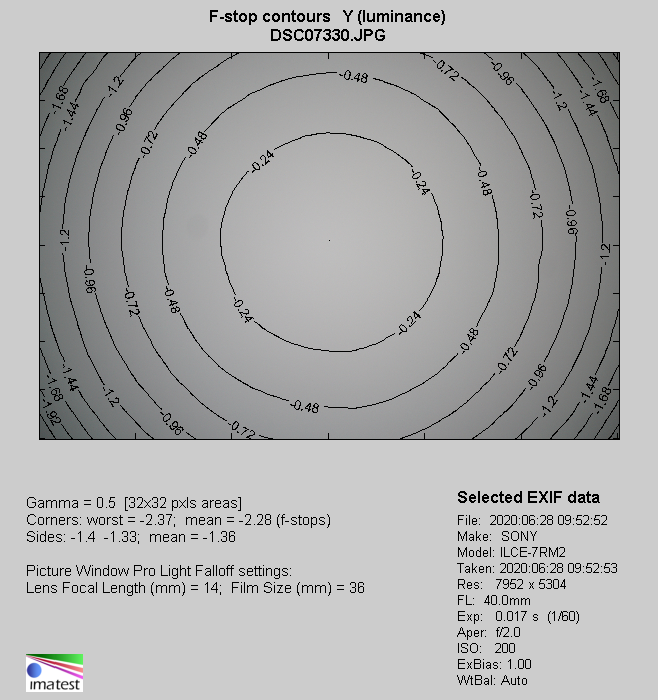

Sony A7R II, JPEG, f/2.0
Carl Zeiss Batis 40 mm f/2 CF  - Vignetting
Below we present averaged out values of brightness loss shown in concentric circles as you move further away from the frame centre. The numerical value for every image, expressed in percents, shows the area limited from the top and right by 100% and from the bottom by the presented curve. The area indicates how much light overall is lost due to the vignetting effect. Please don’t mix these percentages with the values given at the beginning of the chapter because they aren’t directly connected.

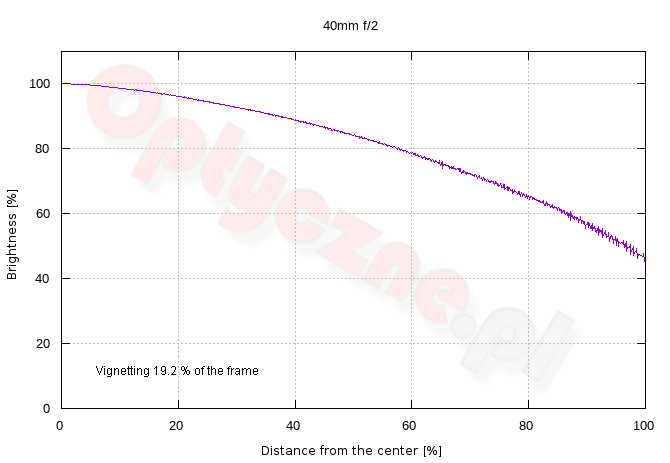

Carl Zeiss Batis 40 mm f/2 CF  - Vignetting

f/2 f/2.8 f/4
