LensTip.com

Lens review

Sony FE 50 mm f/1.2 GM

16 March 2021
Maciej Latałło

8. Vignetting

First let's check vignetting performance on the smaller APS-C sensor – appropriate thumbnails are shown below.

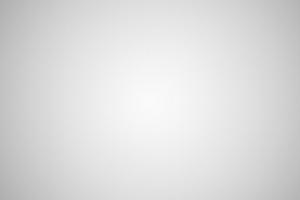

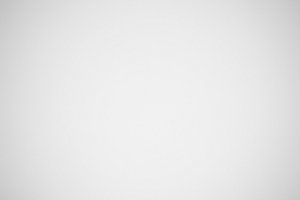

A7R III, APS-C, f/1.2 A7R III, APS-C, f/1.4
Sony FE 50 mm f/1.2 GM - Vignetting Sony FE 50 mm f/1.2 GM - Vignetting


At the maximum relative aperture you can notice vignetting without a problem as it reaches 28% (−0.97 EV) but it can't be called especially high. On a slight stopping down, by f/1.4, the level of this aberration drops to 18% (−0.56 EV). The problems end completely by f/2.0 as vignetting decreases to an imperceptible value of 9% (−0.28 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After passing to the bigger, full frame sensor there are much more problems and the photos we present below show them very well.

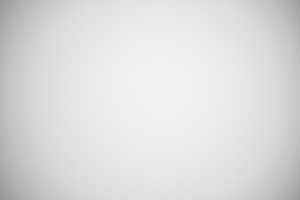

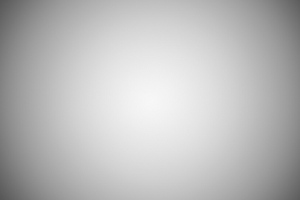

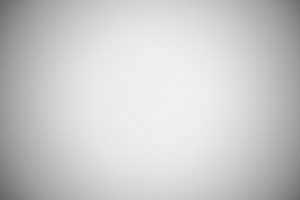

A7R III, FF, f/1.2 A7R III, FF, f/1.4
Sony FE 50 mm f/1.2 GM - Vignetting Sony FE 50 mm f/1.2 GM - Vignetting

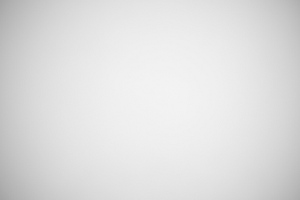

A7R III, FF, f/2.0 A7R III, FF, f/2.8
Sony FE 50 mm f/1.2 GM - Vignetting Sony FE 50 mm f/1.2 GM - Vignetting


At the maximum relative aperture the loss of light is really huge, reaching as much as 63% (−2.89 EV). Still I have to admit that, taking the dimensions of the lens and its excellent aperture into account, I expected vignetting higher than 3 EV. The fact that our measurements produced a value below that level I consider a pleasant surpirse. It's enough you remind yourself of a performance of the Voigtlander Nokton 50 mm f/1.2, which vignetting amounted to 71%.

Brightness loss in the frame corners decreases noticeably by f/1.4 where it reaches 56% (−2.35 EV). By f/2.0 we got 37% (−1.31 EV), and by f/2.8 the result was 30% (−1.03 EV). By f/4.0 vignetting was just a tad better, getting to 29% (−1.00 EV). Further stopping down didn't have any measureable effect on the aberration, described in this chapter.

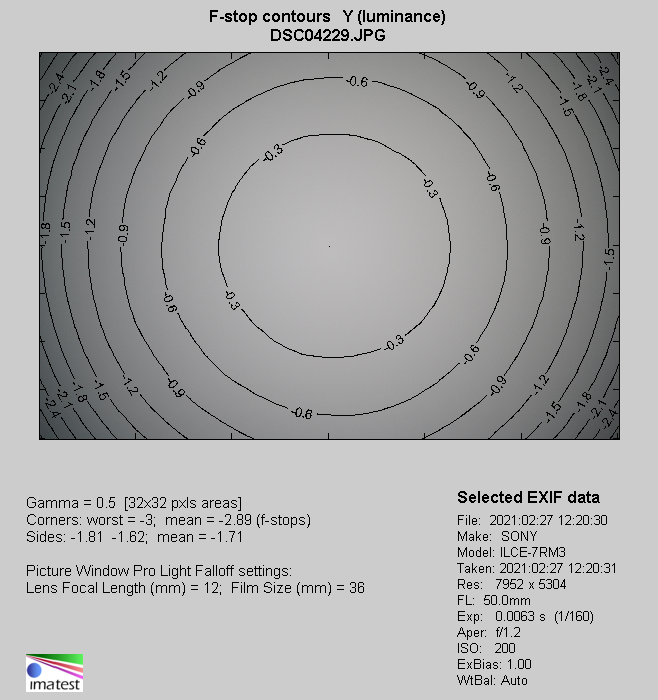

Sony A7R III, JPEG, f/1.2
Sony FE 50 mm f/1.2 GM - Vignetting
