Sigma C 90 mm f/2.8 DG DN

8 November 2021
Maciej Latałło

8. Vignetting

First let's check the vignetting performance of the tested lens on uncorrected JPEG files from the smaller APS-C sensor – appropriate thumbnails you can find below.

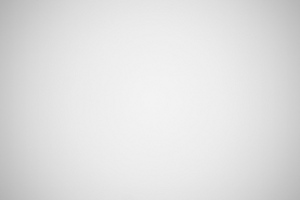

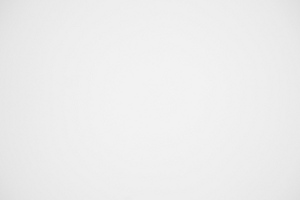

A7R III, APS-C, JPEG, f/2.8 A7R III, APS-C, JPEG, f/4.0
Sigma C 90 mm f/2.8 DG DN - Vignetting Sigma C 90 mm f/2.8 DG DN - Vignetting


At the maximum relative aperture you have to take into account the loss of 25% (-0.83 EV) of light in the frame corners, a moderate value. On stopping down the aperture to f/4.0 it decreases to almost an imperceptible level of 8% (−0.25 EV).

How does it change after passing to a full frame detector? Let's find out! Thumbnails below show clearly that there are more problems.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

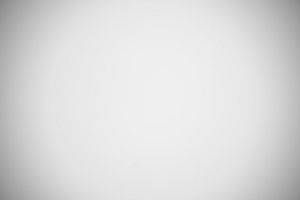

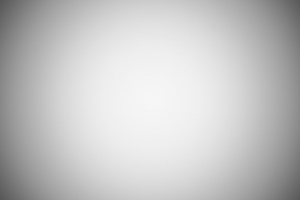

A7R III, FF, JPEG, f/2.8 A7R III, FF, JPEG, f/4.0
Sigma C 90 mm f/2.8 DG DN - Vignetting Sigma C 90 mm f/2.8 DG DN - Vignetting

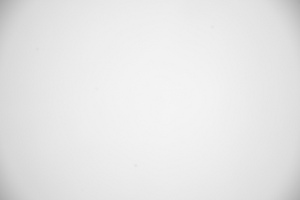

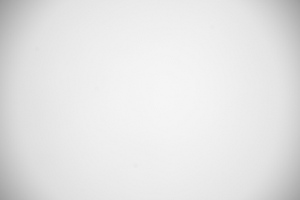

A7R III, FF, JPEG, f/5.6 A7R III, FF, JPEG, f/8.0
Sigma C 90 mm f/2.8 DG DN - Vignetting Sigma C 90 mm f/2.8 DG DN - Vignetting


This time brightness loss at the maximum relative aperture reaches a very high level of 64% (−2.95 EV). It decreases to 42% (−1.60 EV) on stopping down the aperture to f/4.0 and then drops to 35% (−1.22 EV) after applying the f/5.6 aperture. By f/8.0, f/11.0, and f/16.0 we got the following results: 28% (−0.96 EV), 22% (−0.73 EV), and 16% (−0.52 EV) respectively.

In this category the Sigma compares unfavourably with its rivals. For example the Sony FE 90 mm f/2.8 Macro G OSS, a lens distinctly bigger and with the same parameters, had vignetting on a level of 53%.

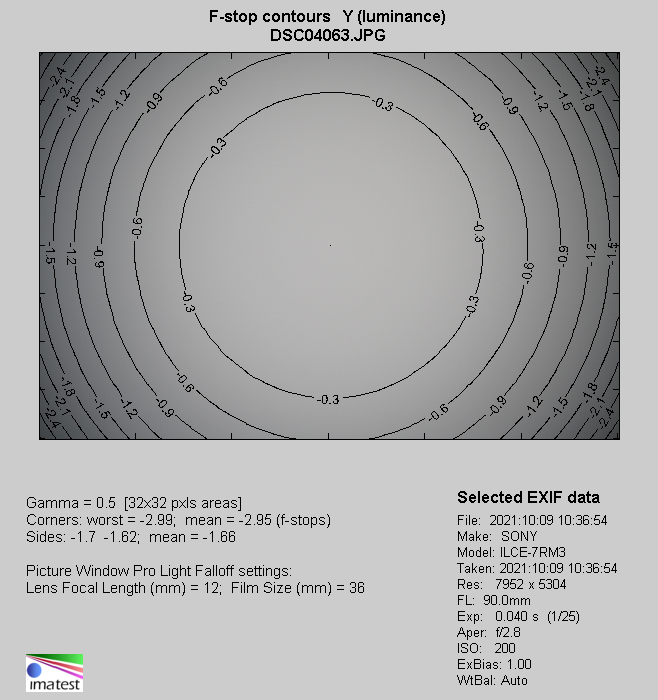

Sony A7R III, 90 mm, JPEG, f/2.8
Sigma C 90 mm f/2.8 DG DN - Vignetting
