OM System M.Zuiko Digital 20 mm f/1.4 PRO

10 January 2022
Maciej Latałło

8. Vignetting

Let's glance at thumbnails below to assess the vignetting performance of the tested lens on JPEG files obtained with the help of the Olympus O-MD E-M5 Mark II.

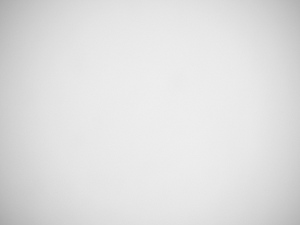

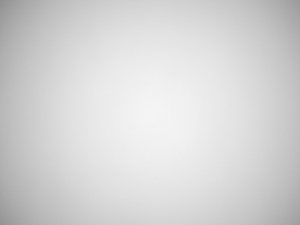

Olympus E-M5 II, JPEG, f/1.4 Olympus E-M5 II, JPEG, f/2.0
OM System M.Zuiko Digital 20 mm f/1.4 PRO - Vignetting OM System M.Zuiko Digital 20 mm f/1.4 PRO - Vignetting

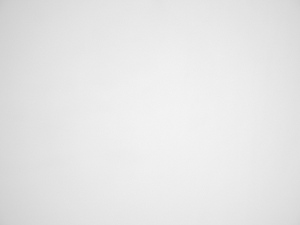

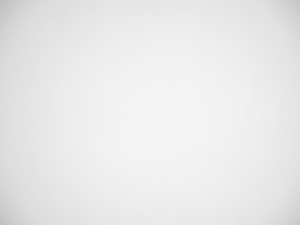

Olympus E-M5 II, JPEG, f/2.8 Olympus E-M5 II, JPEG, f/4.0
OM System M.Zuiko Digital 20 mm f/1.4 PRO - Vignetting OM System M.Zuiko Digital 20 mm f/1.4 PRO - Vignetting


At the maximum relative aperture the brightness loss in frame corners amounts to 37% (−1.35 EV), not a low value but, taking into account f/1.4 aperture and the angle of view of the tested lens, you can say it compares favourably with the results of the rivals. It seems the lens really profits from the fact that it is designed for a smaller detector.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

On stopping down the aperture to f/2.0 vignetting decreases to 25% (−0.83 EV), and after applying f/2.8 light fall-off drops to 19% (−0.63 EV). By f/40 you deal with an even lower level, that of 14% (−0.44 EV). Further stopping down of aperture is able to lower vignetting by 1% at most.

As you progress from RAW to JPEG files, slight barrel distortion is corrected by cropping images and this fact influences vignetting measurements. Still differences between both types of files aren't distinct, never exceeding 2-3%

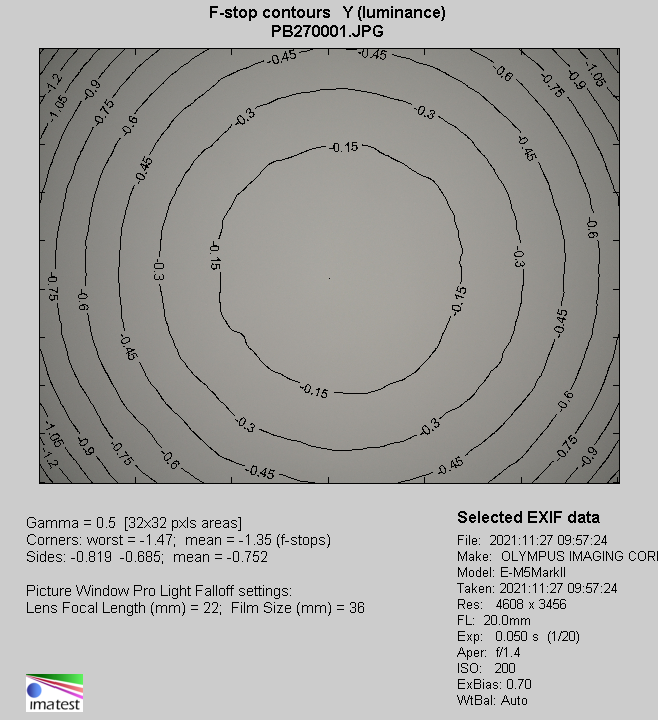

Olympus OM-D E-M5 Mark II, JPEG, f/1.4
