Sony FE 70-200 mm f/4 Macro G OSS II

17 July 2023
Maciej Lata││o

8. Vignetting

First let's check vignetting levels for JPEG files generated in the APS-C mode. Appropriate thumbnails you can find below.

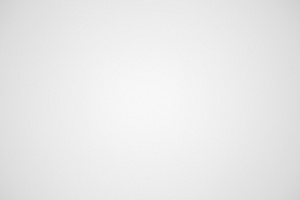

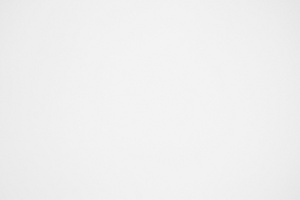

A7R III, APS-C, JPEG, 70ámm, f/4.0 A7R III, APS-C, JPEG, 70ámm, f/5.6
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

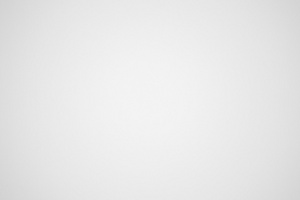

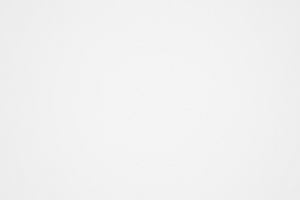

A7R III, APS-C, JPEG, 135ámm, f/4.0 A7R III, APS-C, JPEG, 135ámm, f/5.6
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

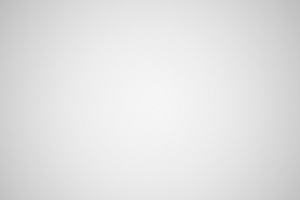

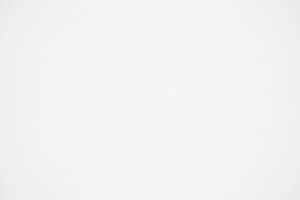

A7R III, APS-C, JPEG, 200ámm, f/4.0 A7R III, APS-C, JPEG, 200ámm, f/5.6
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting


In case of the smaller detector there are almost no problems with vignetting at all. At the 70 mm focal length and the maximum relative aperture brightness loss in the frame corners reaches just 15% (-0.47 EV) and decreases to an imperceptible level of 5% (-0.15 EV) on stopping down the aperture to f/5.6.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal range is even better because at the maximum relative aperture vignetting reaches 13% (-0.40 EV), and by f/5.6 it is just only 4% (-0.11 EV).

A slight increase of the aberration, described here, can be noticed at the maximum focal length where, by f/4.0, you deal with a level of 22% (-0.70 EV), which very quickly decreases on stopping down, and by f/5.6 it is just 5% (-0.15 EV).

Now let's check how the situation changes after passing to full frame – appropriate thumbnails are presented below.

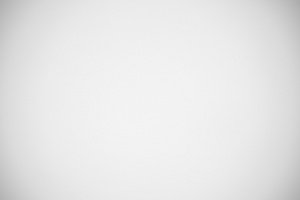

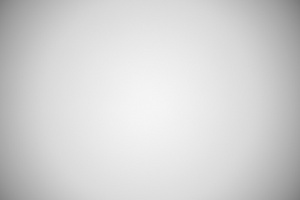

A7R III, FF, JPEG, 70ámm, f/4.0 A7R III, FF, JPEG, 70ámm, f/5.6
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

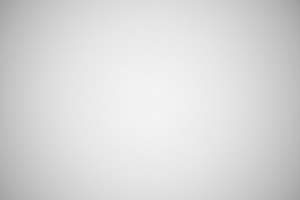

A7R III, FF, JPEG, 135ámm, f/4.0 A7R III, FF, JPEG, 135ámm, f/5.6
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

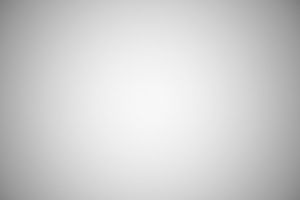

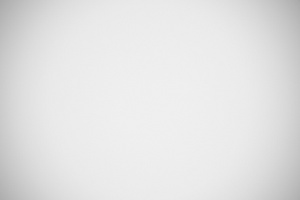

A7R III, FF, JPEG, 200ámm, f/2.8 A7R III, FF, JPEG, 200ámm, f/4.0
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting


This time the aberration, described in this part of our test, is much easier to notice but, of course, for mirrorless systems standards you can hardly complain. At 70 mm and by f/4.0 light fall-off in the corners amounts to 47% (−1.86 EV), and it decreases to 28% (−0.95 EV) on stopping down the aperture to f/5.6. All problems end by f/8.0, and f/11.0, where our measurements were, respectively: 13% (−0.41 EV) and 11% (−0.34 EV).

After changing the focal length to 135 mm the results are noticeably better. By f/4.0 vignetting is 34% (−1.18 EV), by f/5.6 it reaches 16% (−0.51 EV), and by f/8.0 it drops to an imperceptible level of 9% (−0.28 EV).

A bit higher results you see at the maximum focal length. If you employ the f/4.0 aperture then brightness loss in the frame corners will reach 47% (−1.84 EV); after passing to f/5.6 the aberration decreases to a level of 28% (−0.94 EV). By f/8.0 and f/11.0 we got also the following results: 15% (−0.46 EV), and 9% (−0.26 EV).

It's worth mentioning the fact that in case of both detectors we analized the performance for JPEG files, already distortion-corrected and slightly cropped. As distortion is not especially high here, that cropping doesn't matter a lot. However, if you analize vignetting for RAW files, its levels will be higher. In case of the APS-C sensor typically you have to add 1-2% to the results above; in case of full frame this correction should jump to 2-3%.

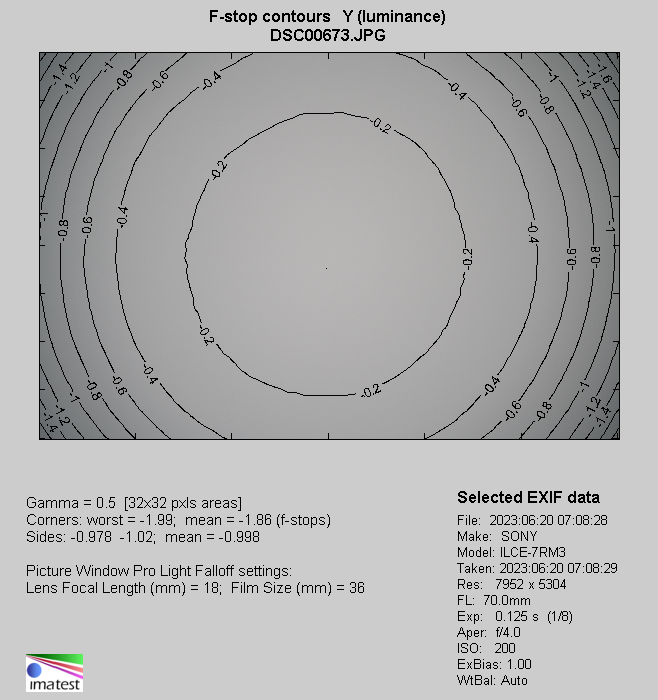

Sony A7R III, 70ámm, JPEG, f/4.0
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

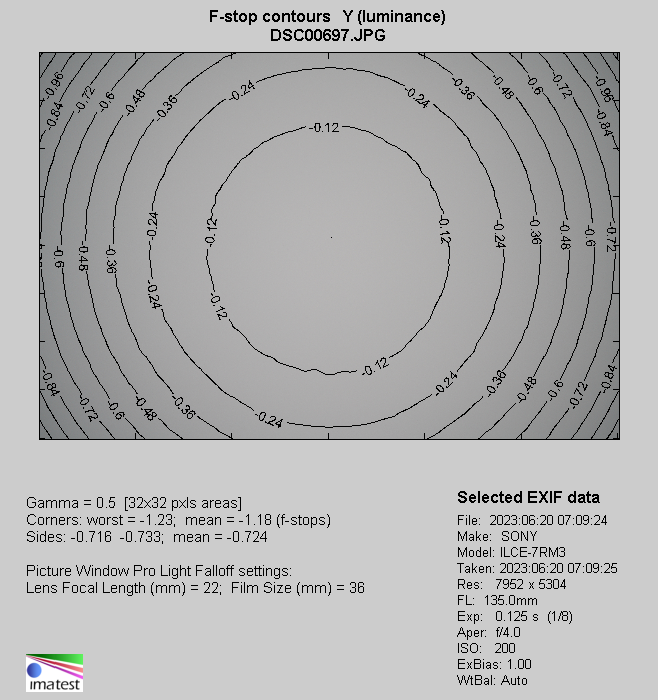

Sony A7R III, 135ámm, JPEG, f/4.0
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting

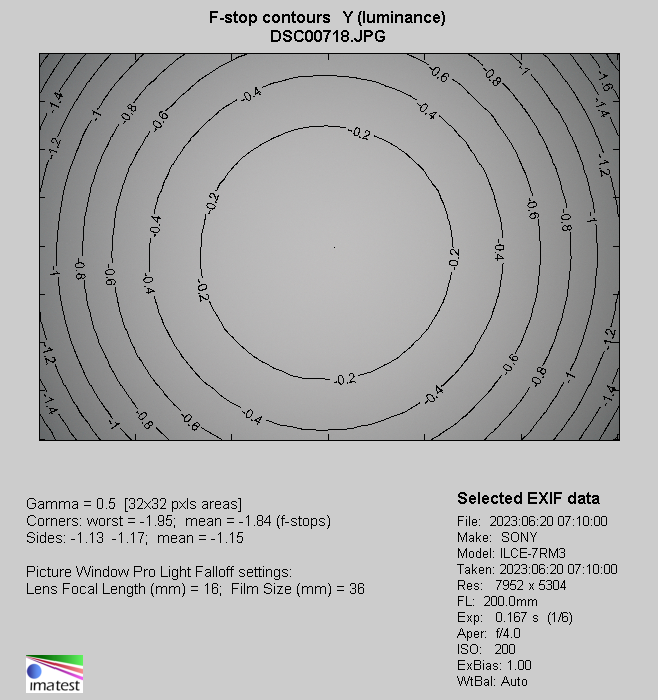

Sony A7R III, 200ámm, JPEG, f/4.0
Sony FE 70-200 mm f/4 Macro G OSS II - Vignetting
