Sony FE 16-35 mm f/2.8 GM II

29 August 2023
Maciej Lata││o

8. Vignetting

First let's see how the Sony FE 16-35 mm f/2.8 GM II deals with vignetting on the smaller APS-C sensor – appropriate thumbnails you can find below.

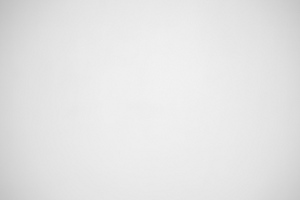

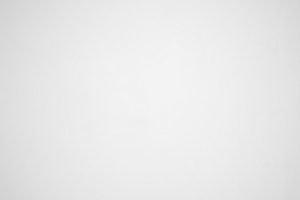

A7RáIII, APS-C, 16ámm, f/2.8 A7RáIII, APS-C, 16ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting

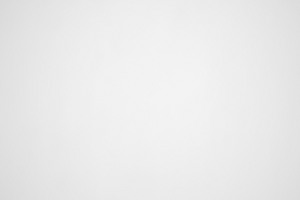

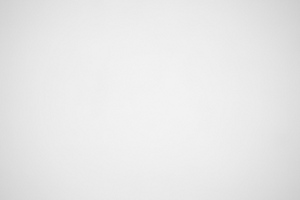

A7RáIII, APS-C, 24ámm, f/2.8 A7RáIII, APS-C, 24ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting

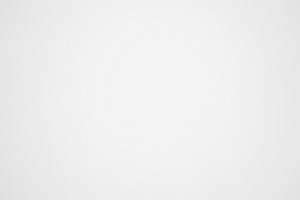

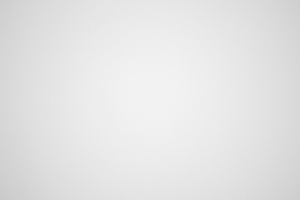

A7RáIII, APS-C, 35ámm, f/2.8 A7RáIII, APS-C, 35ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting


In this case there are no problems at any focal length. Applying the widest available angle of view and the f/2.8 aperture you have to deal with a loss of just 18% (−0.57 EV) of light in the frame corners. The problem disappears practically completely by f/4.0, where it is just 13% (−0.41 EV). By f/5.6 this value remains the same.


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

It's even better in the middle of the focal range because by f/2.8 and f/4.0 we got the following results: 14% (−0.44 EV) and 10% (−0.31 EV) respectively.

At the maximum focal length and maximum relative aperture vignetting is 16% (−0.49 EV) and it decreases to an imperceptible level of 8% (−0.24 EV) on stopping down the aperture to f/4.0.

Now let's check how the tested lens deals on full frame – appropriate photos, as usual, can be found below.

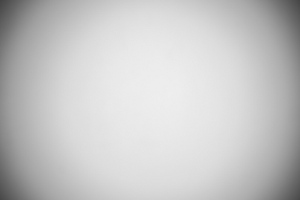

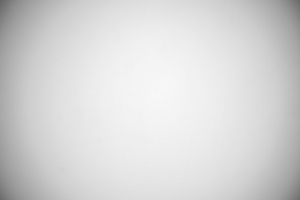

A7RáIII, FF, 16ámm, f/2.8 A7RáIII, FF, 16ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting

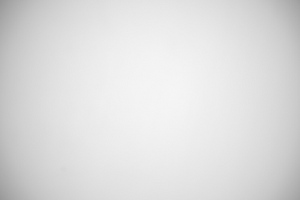

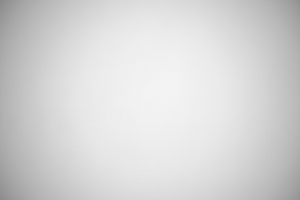

A7RáIII, FF, 24ámm, f/2.8 A7RáIII, FF, 24ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting

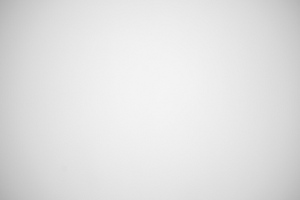

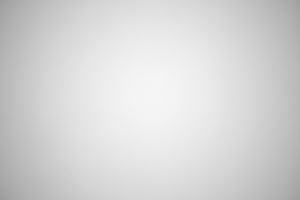

A7RáIII, FF, 35ámm, f/2.8 A7RáIII, FF, 35ámm, f/4.0
Sony FE 16-35 mm f/2.8 GM II - Vignetting Sony FE 16-35 mm f/2.8 GM II - Vignetting


At the most difficult combination of the ultra wide angle of view and f/2.8 aperture problems are huge as vignetting reaches a very high value of 70% (-3.47 EV). It's obvious that a fight for the smallest physical dimensions possible can be very costly. By f/4.0 vignetting decreases to a still high level of 56% (-2.40 EV), and by f/5.6 it reaches a value of 46% (-1.77 EV). Then the decrease is very slow – by f/8.0 you get a result of 40% (-1.50 EV), and by f/11.0 you see a level of 38% (-1.40 EV). Further stopping down doesn't bring any measureable effects.

In the middle of the focal range you see a distinct improvement of the performance. By f/2.8 brightness loss in the frame corners amounts to 41% (-1.54 EV) and it decreases to 36% (-1.30 EV) on stopping down the aperture to f/4.0. By f/5.6 and f/8.0 we got the following values: 31% (-1.07 EV) and 28% (-0.94 EV) respectively.

At the 35 mm focal length the improvement continues, as at the maximum relative aperture vignetting is 36% (-1.27 EV), by f/4.0 it drops to 26% (-0.88 EV), and by f/5.6 it decreases even more, to 22% (-0.73 EV). Further stopping down doesn't bring any measureable decrease of this aberration.

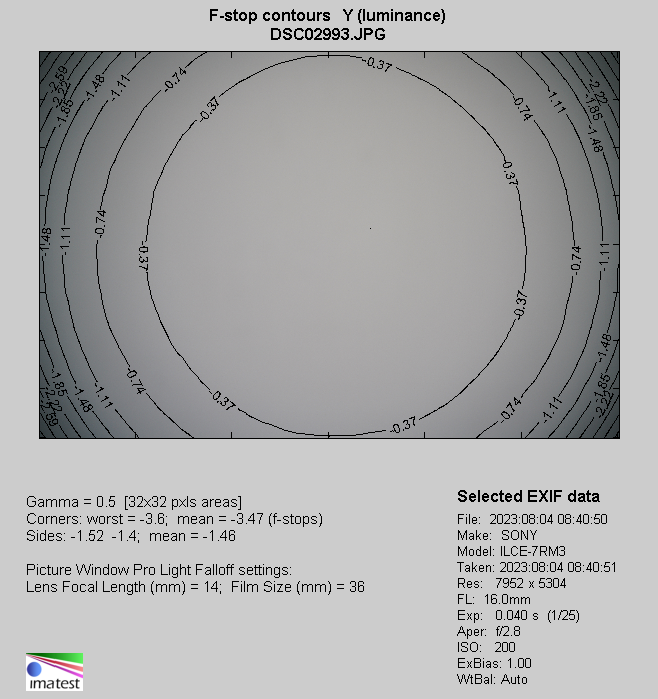

Sony A7RáIII, 16ámm, f/2.8
Sony FE 16-35 mm f/2.8 GM II - Vignetting

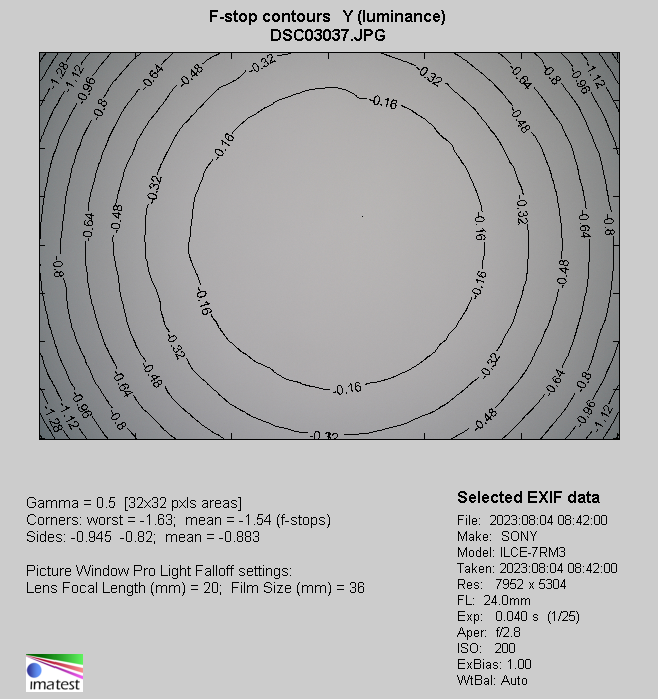

Sony A7RáIII, 24ámm, f/2.8
Sony FE 16-35 mm f/2.8 GM II - Vignetting

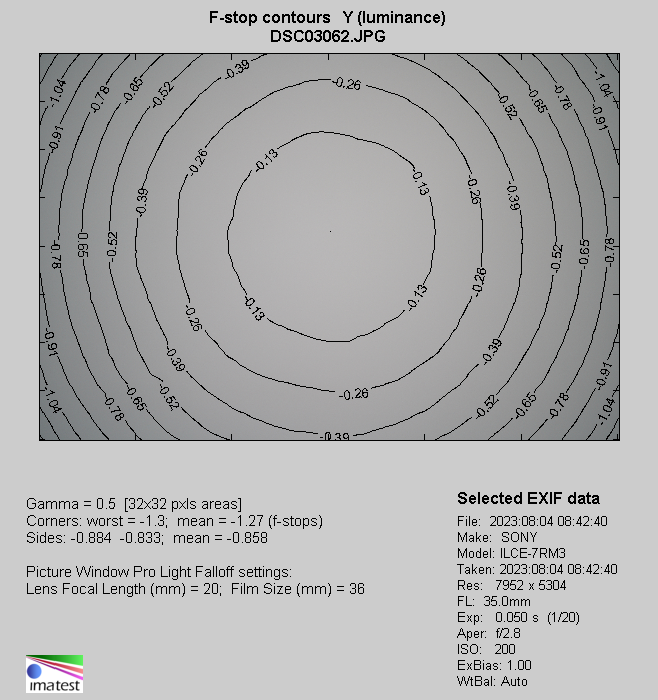

Sony A7RáIII, 35ámm, f/2.8
Sony FE 16-35 mm f/2.8 GM II - Vignetting
