LensTip.com

Lens review

Canon EF-S 60 mm f/2.8 Macro USM

22 June 2009
Arkadiusz Olech

8. Vignetting



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

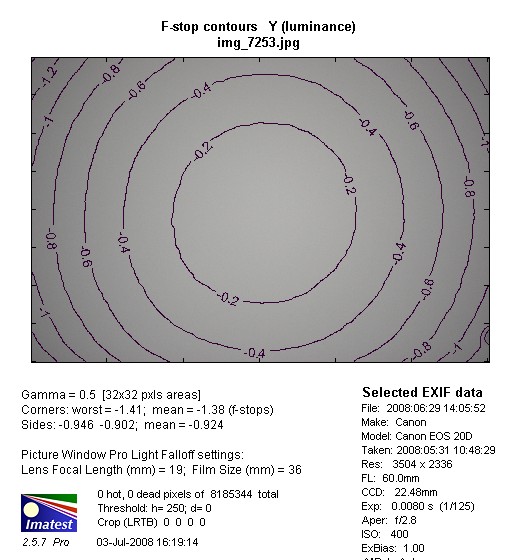

Does Canon 2.8/60 Macro have any disadvantages? We think we’ve finally found one. Small dimensions, closed construction, small front lens – all this made itself felt in the case of vignetting, which at the maximum aperture reaches as much as 38% (-1.38 EV). Such a level of this aberration can be seen not only on test charts. Fortunately, after stopping down to f/4.0 vignetting falls to 18%. At f/5.6 aperture value it vanishes almost entirely (5%).

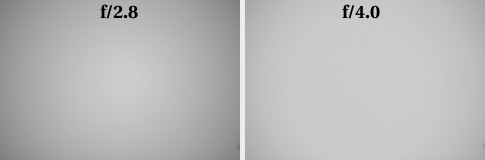

Canon EF-S 60 mm f/2.8 Macro USM - Vignetting


Canon EF-S 60 mm f/2.8 Macro USM - Vignetting
