8. Vignetting

As for the class of the equipment, Tamron deals with vignetting quite well, although it presents an interesting characteristic of a very small decrease in the aberration when stopping down.

Tamron SP AF 10-24 mm f/3.5-4.5 Di II LD Aspherical (IF) - Vignetting




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

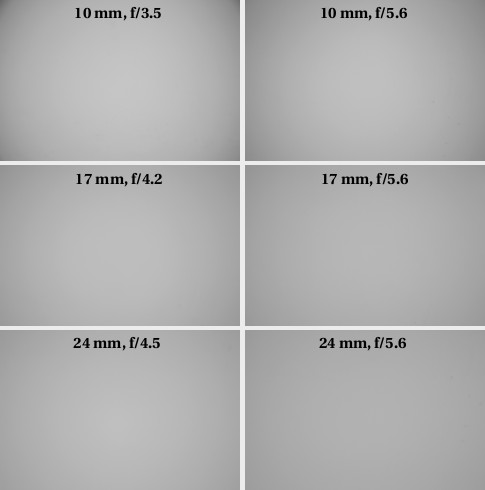

And so, at 10 mm and f/3.5 the light falloff in the corners of the frame equals 37% (-1.34 EV) which is a considerable result. At f/4.0 vignetting falls only by 2%, and at f/5.6 it’s still 29%. At f/8.0 this aberration reaches 25% and ceases to decrease with further stopping down.

It’s much better for the middle of the focal length, where at the maximum aperture of f/4.2 vignetting amounts to 20% (-0.65 EV). Stopping down to f/5.6 makes the light falloff decrease only by 3% and then stops decreasing with stopping down.

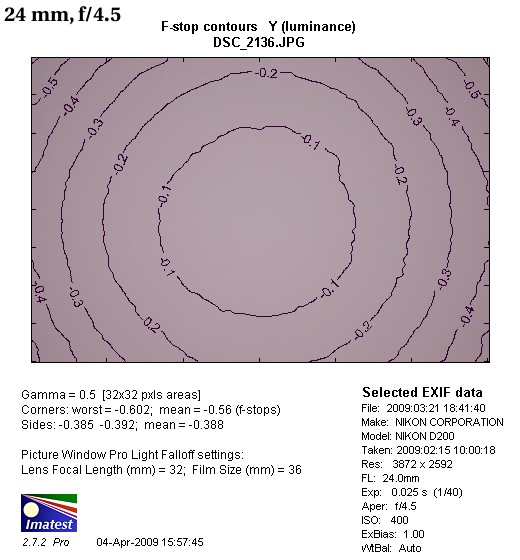

It’s very similar at 24 mm. There, at f/4.5 vignetting amounts to 17% (-0.55 EV) and decreases to a practically unnoticeable level of 12% at f/5.6.

We need to emphasize now that Tamron 10-24 comes out well comparing to its rivals. Canon 10-22 mm could show vignetting of almost 50% and lengthening of the focal length didn’t decrease the level of this aberration much. Sigma 10-20 mm, at the maximum aperture, at all focal lengths produced the light falloff larger than 30%.

Tamron SP AF 10-24 mm f/3.5-4.5 Di II LD Aspherical (IF) - Vignetting

Tamron SP AF 10-24 mm f/3.5-4.5 Di II LD Aspherical (IF) - Vignetting
