8. Vignetting

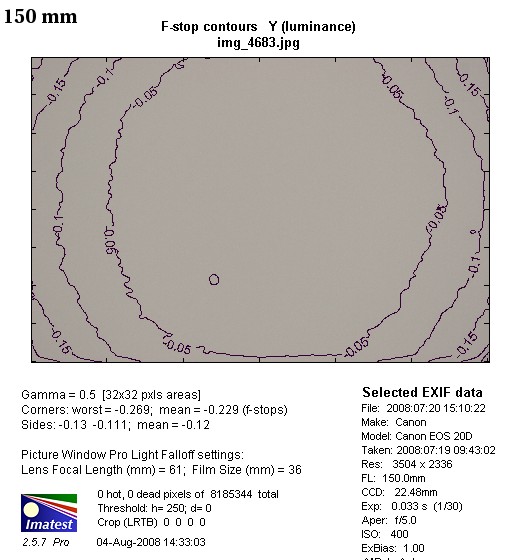

On a small matrix of our test camera, the Canon 20D, the vignetting won’t cause you any problems. At the shortest focal length and wide open it is imperceptible and reaches just 8% (- 0.23 EV). Very similar results we get at 250 mm where the highest vignetting level was just 7% ( -0.21 EV). Almost equally good performance might be noticed near 370 mm where at maximum relative aperture (f/6.3) the corner illumination loss was just 12% and by f/8.0 it decreased to 6%.

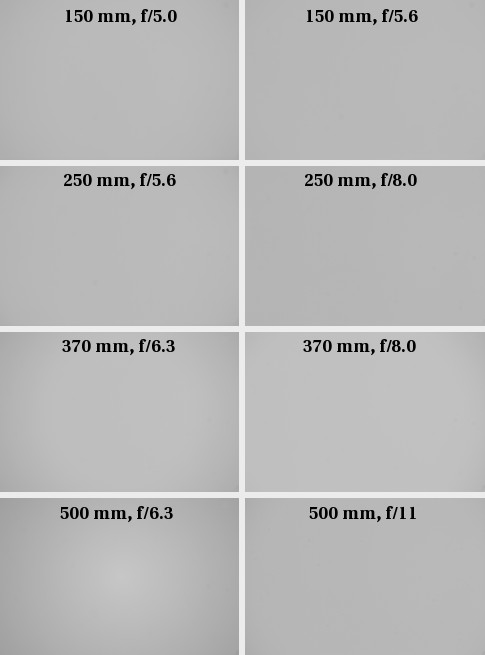

Sigma 150-500 mm f/5.0-6.3 APO DG OS HSM - Vignetting




Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

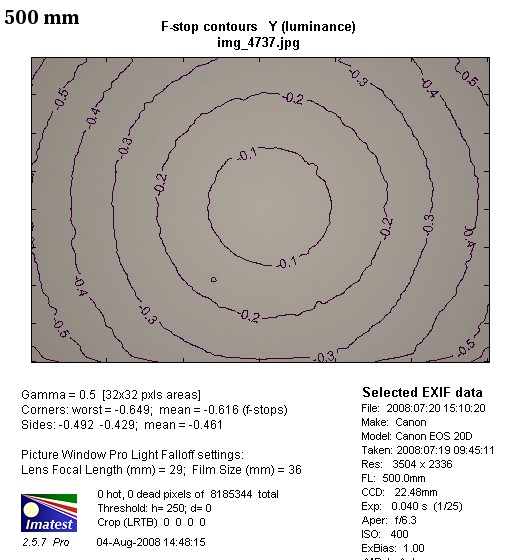

Maximum aperture is a setting where the vignetting is the most visible. By f/6.3 it reaches 19% ( -0.60 EV) but by f/8.0 it decreases to 13% and disappears almost completely by f/11, where it amounts to only 6%.


Sigma 150-500 mm f/5.0-6.3 APO DG OS HSM - Vignetting

Sigma 150-500 mm f/5.0-6.3 APO DG OS HSM - Vignetting
