Lens review

Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5

30 September 2007
Arkadiusz Olech

7. Coma and astigmatism



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

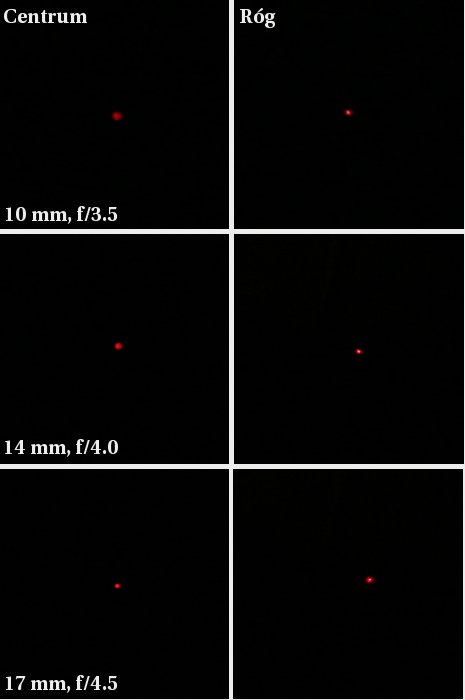

From the pictures below one can easily notice that the coma does not cause the picture to worsen on the frame edge and it is corrected in a proper way. On the other hand however, looking at the picture of the sky shown at the end of the test, you could see the coma together with the blur making the resolution of the picture much worse.

Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5 - Coma and astigmatism


As far as astigmatism is concerned, the situation looks slightly worse. The average difference between horizontal and vertical MTF50 values measured in the center of the frame reached almost 12%. It is also worth mentioning that the astigmatism was higher for the 10 mm and here, again, the distortion and projection specifics can influence the test results.
