Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5

30 September 2007
Arkadiusz Olech

8. Vignetting

The Tokina’s extreme characteristics once again caused us a few troubles. It is hard to find a big, evenly lit surface, which could be photographed with a field of view lens as big as 180%. We managed to do it although because of the lens’s closeness, which was practically touching the photographed surface, the results are saddled with a large rate of error and should be treated as approximate. Therefore for a 10 mm and a maximum aperture, the light falloff in corners reaches 20%, decreases to 15% when stopping down to f/4.0 and down again to 10% after stopping down to f/5.6.

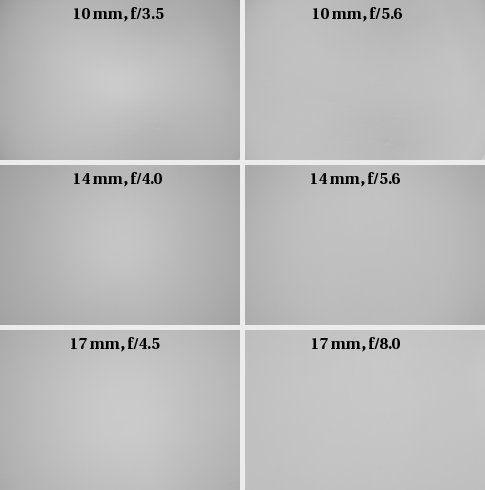

Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5 - Vignetting

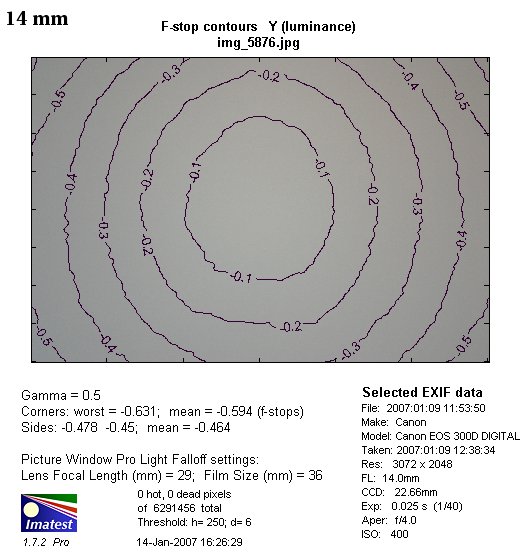

The results for greater focal lengths are much more precise. For 14 mm and a diaphragm of f/4.0 the light falloff in the corners reaches 19% (-0.61 EV), after using the aperture of f/5.6 it drops to 12%. The problem fades away for aperture of f/8 and reaching 7%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

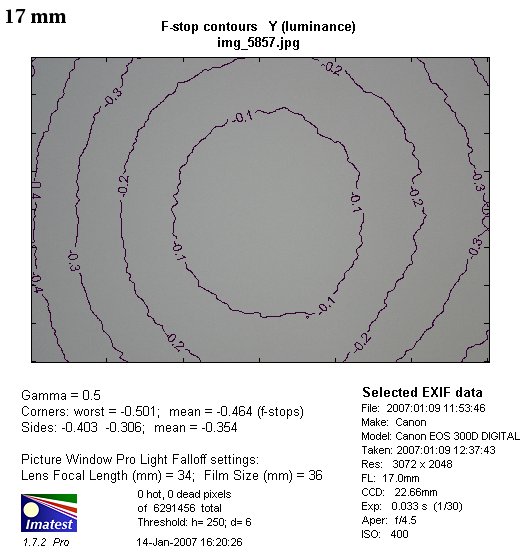

The best situation is for the 17 mm focal length, where even with a maximum aperture of f/4.5, the vignetting does not disturb as much and reaches 15% (-0.46 of aperture value). When we stop down the lens to f/5.6 the vignetting slightly drops but only to 13% but for f/8 it is almost unnoticed and reaches only 5%.

We should applaud the Tokina in this category. Remembering other wide-angle non-distortion zooms and their vignetting behavior, in which the light falloff in the corners could reach up to 30-40%, we were seriously concerned about the even more extreme parameters of the Tokina. Our doubts and fears were greatly exaggerated because the lens did very well in this category.

Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5 - Vignetting

Tokina AT-X 107 DX AF Fish-Eye 10-17 mm f/3.5-4.5 - Vignetting
