LensTip.com

Lens review

Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II

16 August 2010
Arkadiusz Olech

6. Distortion

We would like to start this chapter by reminding the performance of the older Nikkor AF-S 70–200 mm f/2.8G IF-ED VR in this category. At the beginning, in the middle and at the end of the focal lengths range on the Nikon D200 sensor it got the following results: −0.54%, 0.49% and 0.87% respectively. Analogous results of the new Nikkor 70-200 mm, tested here, are: −0.26%, 0.49% and 0.70%. As you see, although the results of its predecessor were good, the new lens fares even a tad better.

On full frame the results are of course higher but still there’s nothing to carp about. At 70 mm the distortion is –0.78%, in the middle of the focal lengths range it reaches 0.85% and at the maximum focal length it goes as high as 1.39%.

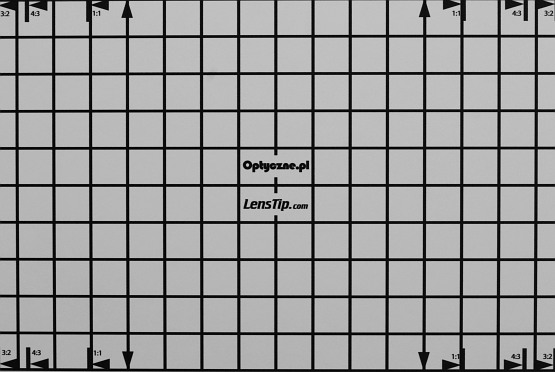

Nikon D200, 70 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion

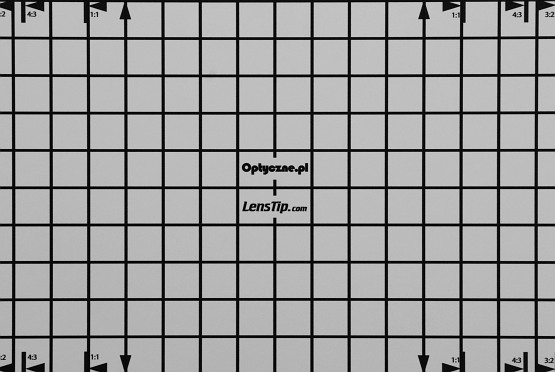

Nikon D200, 135 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion

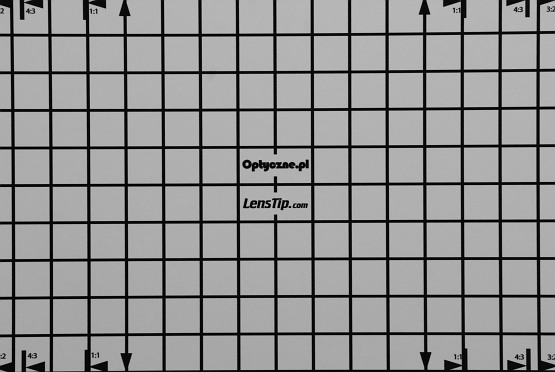

Nikon D200, 200 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

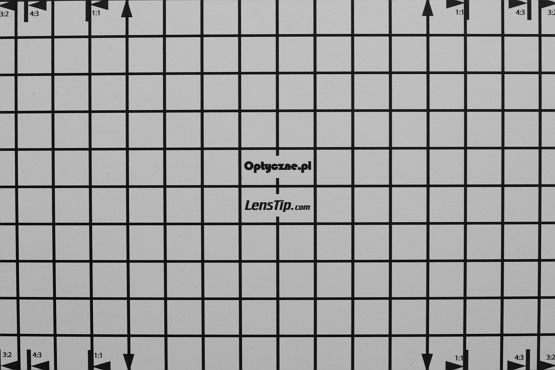

Nikon D3x, 70 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion

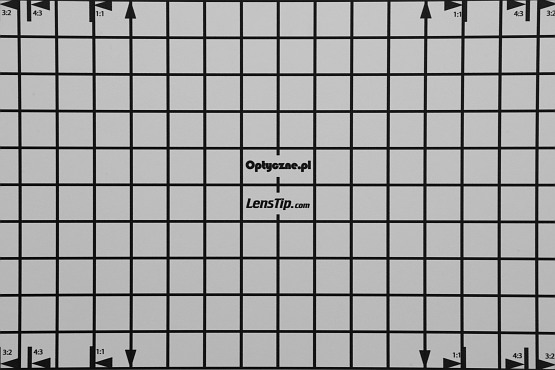

Nikon D3x, 135 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion

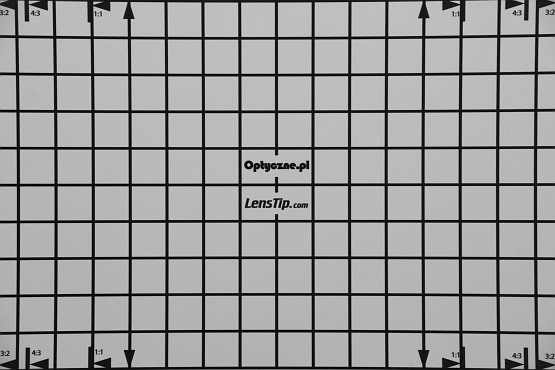

Nikon D3x, 200 mm
Nikon Nikkor AF-S 70-200 mm f/2.8G ED VR II - Distortion
