Lens review

Sony E 18-55 mm f/3.5-5.6 OSS

15 March 2011
Arkadiusz Olech

8. Vignetting

The crops below show thumbnails of test photos at three focal lengths, with the aperture values close to minimum.

Sony E 18-55 mm f/3.5-5.6 OSS - Vignetting

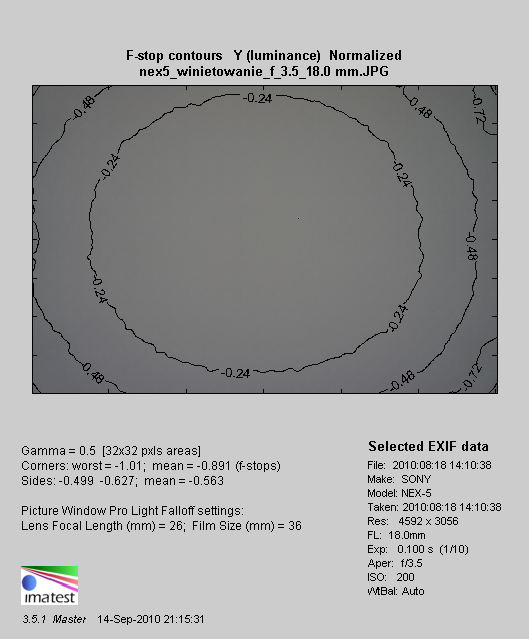

As you can notice, the vignetting can be especially bothersome at 18 mm. The measurements indicate the brightness loss on the edge of the frame amounting to 36% (-0.89 EV), no matter whether the aperture is stopped down or not. It is very similar to the performance of the Olympus kit lens, which have been referred to several times earlier in this test.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

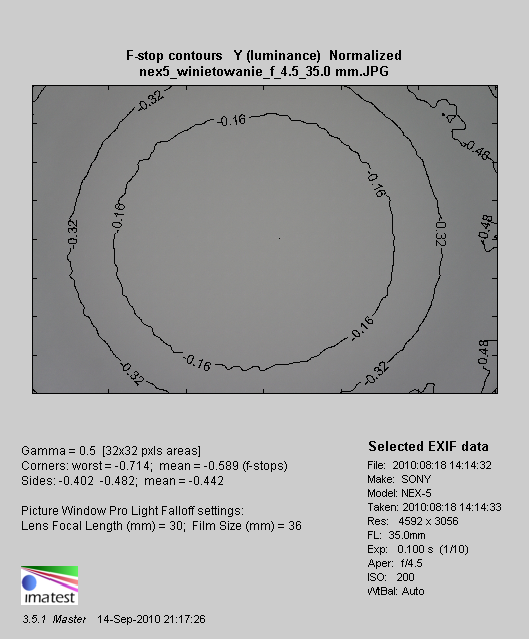

In the middle of the focal lengths range the vignetting is a bit over 19% (-0.59 EV) and, as you see in the crops above, such a value is also visible to the naked eye. Only at 55 mm focal length we can forget about vignetting, which reaches just 8.3% (-0.25 EV) and on stopping down to f/8.0 decreases to less than 5% (-0.15 EV).


Sony E 18-55 mm f/3.5-5.6 OSS - Vignetting

Sony E 18-55 mm f/3.5-5.6 OSS - Vignetting

Sony E 18-55 mm f/3.5-5.6 OSS - Vignetting
