LensTip.com

Lens review

Canon EF 200 mm f/2.0L IS USM

16 August 2012
Arkadiusz Olech

7. Coma, astigmatism and bokeh

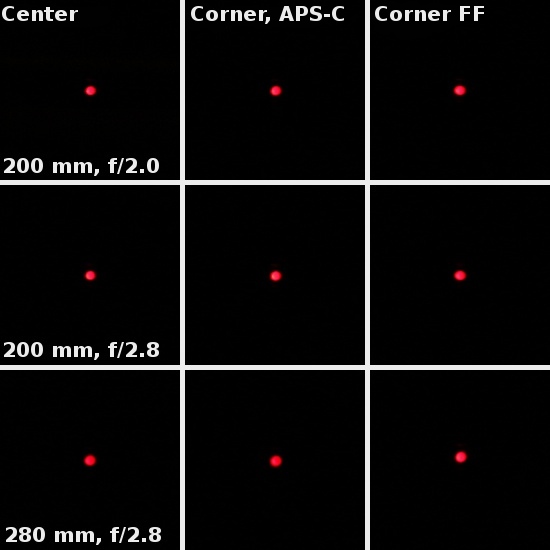

As you see in crops below the coma is not a problem here. Even in the very corner of full frame and at the maximum relative aperture the image of a diode remains circular. The situation doesn’t change after attaching the converter – the coma can still be called negligible.

Canon EF 200 mm f/2.0L IS USM - Coma, astigmatism and bokeh

The astigmatism is quite another matter - it is clearly more pronounced than the coma. Its level is perhaps not exactly high because the average distance between vertical and horizontal MTF50 function values amounts to 7.3% but it is not as negligible as in the case of the coma.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

After attaching the converter the astigmatism doesn’t change its level- officially it was 7.8% so, within the margin of error, the same as for the lens itself.

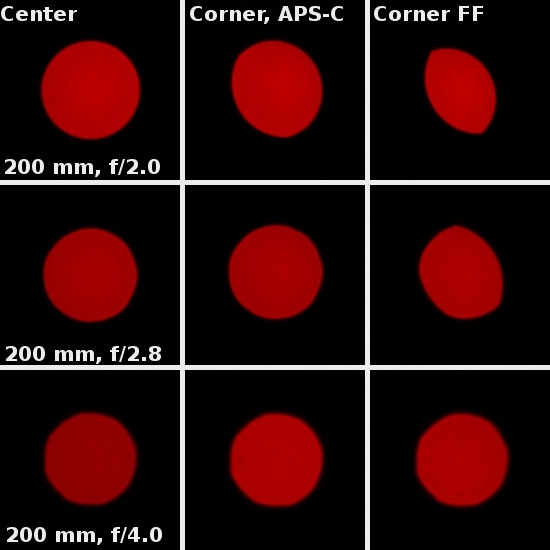

Let’s glance once again at a defocused image of a diode put in the frame centre, in the corner of the APS-C sensor and in the full frame corner as well.

Canon EF 200 mm f/2.0L IS USM - Coma, astigmatism and bokeh

It can be noticed that the light in the circles is very evenly spread. What’s more, already by f/4.0 the light circles are almost exactly the same no matter where the diode was positioned. You can expect the blurred areas will be smooth and pleasant to the eye.
