Fujifilm Fujinon XF 60 mm f/2.4 R Macro

8 October 2012
Arkadiusz Olech

8. Vignetting

The Fujifilm X-Pro1 body corrects many optical aberrations, including the vignetting. If you want to analyse precisely the influence of optics on that aberration you must check both JPEG and RAW files. The appropriate thumbnails are presented below.

JPEG RAW
f/2.4 f/2.4
Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting
f/2.8 f/2.8
Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting
f/4.0 f/4.0
Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting


The differences, fortunately, are not especially pronounced and most likely they stem from a slight cropping of the JPEGs field of view after the distortion correction. At the maximum relative aperture, when it comes to JPEG files, the vignetting reaches a moderate level of 21% (-0.67 EV). On stopping down to f/2.8 you see that aberration decrease to 15% (-0.46 EV). The problem disappears completely by f/4.0 where it amounts to just 6% (-0.19 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

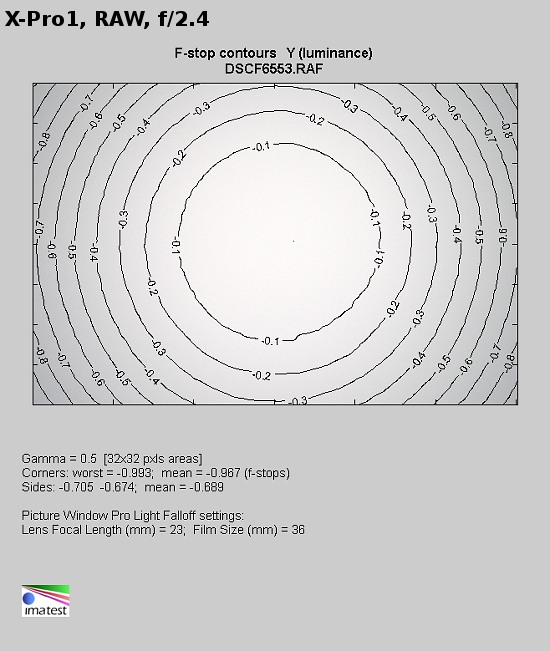

In the case of RAW files, at the maximum relative aperture you must take into account the fact that the brightness loss will get to 28% (-0.96 EV). By f/2.8 that aberration decreases to the level of 22% (-0.71 EV). Similarly as in the case of JPEG files, the vignetting stops being bothersome at all by f/4.0 where it is just 10% (-0.32 EV).

Fujifilm Fujinon XF 60 mm f/2.4 R Macro - Vignetting
