LensTip.com

Lens review

Sigma A 35 mm f/1.4 DG HSM

12 December 2012
Arkadiusz Olech

8. Vignetting

If you work using a body with an APS-C/DX sensor the vignetting of the Sigma 1.4/35 shouldn’t be a problem. It can be seen in the thumbnails below.

Sigma A 35 mm f/1.4 DG HSM - Vignetting


The light fall-off in the frame corners is visible at the maximum relative aperture, amounting there to 26% (-0.85 EV). That aberration disappears almost completely by f/2.0, reaching just 9% (-0.29 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The chart below presents the results of the Sigma and its competitors in this category.


Sigma
1.4/35
Zeiss
1.4/35
Nikkor
1.4/35G
Canon
1.4/35L
Sony
1.4/35G
Samyang
1.4/35
f/1.4
36%
32%
32%
32%
24%
21%
f/2.0
9%
17%
14%
16%
11%
9%
f/2.8
6%
5%
5%
8%
4%
4%


Still it’s full frame which is the biggest challenge for 1.4/35 lenses. Thumbnails below show how serious a challenge it is.

Sigma A 35 mm f/1.4 DG HSM - Vignetting

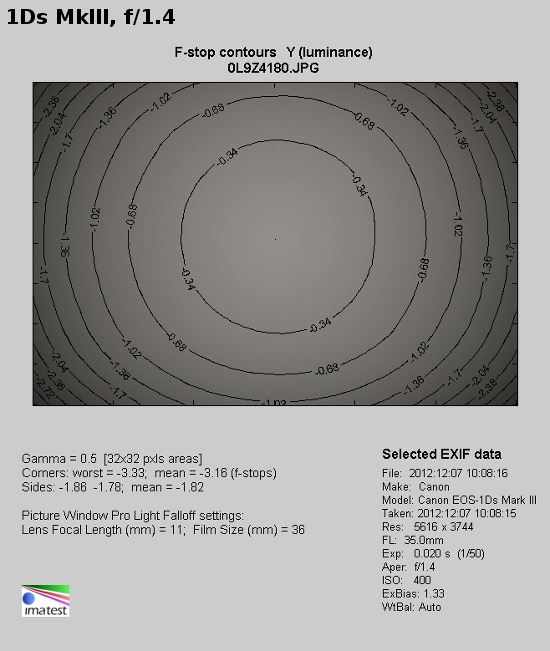

At the maximum relative aperture the vignetting of the Sigma is monstrous, reaching 66% (-3.16 EV). Only the Canon fares here worse, the Nikkor is a tad better and the Zeiss, the Samyang and the Sony – much better. On stopping down the aperture the Sigma’s performance improves, though. By f/2.0 the vignetting is 44% (-1.69 EV) so the tested lens is better than the Canon, getting the same result, within the margin of error, as that of the Nikkor and the Sony. Still it loses out to the Zeiss and the Samyang (which, by the way, are physically the biggest instruments in this class of equipment). By f/2.8 the vignetting is still visible, amounting to 24% (-0.79 EV). Only by f/4.0 and f/5.6 you might forget about this aberration because in their case it reaches just about 15%.


Sigma
1.4/35
Zeiss
1.4/35
Nikkor
1.4/35G
Canon
1.4/35L
Sony
1.4/35G
Samyang
1.4/35
f/1.4
66%
55%
60%
70%
59%
48%
f/2.0
44%
36%
44%
50%
43%
34%
f/2.8
24%
17%
25%
35%
23%
19%
f/4.0
15%
8%
15%
27%
15%
12%



Sigma A 35 mm f/1.4 DG HSM - Vignetting
