LensTip.com

Lens review

Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR

4 May 2013
Arkadiusz Olech

6. Distortion

As long as you use the tested Nikkor with DX sensors bodies the distortion won’t be problematic at all. At 70 mm focal length you get just slight barrel distortion of –0.44% which in the middle of the focal range turn into a slight “pincushion” (0.57%). It increases to the value of 0.89% at the maximum focal length.

The problem, far from serious but still, appears when you pass to the full frame. At 70 mm the situation is more or less good because barrel distortion reaches just –0.56% there. The distortion changes its sign quickly, though, and starts to increase – at 135 mm it reaches the value of 1.57%. The most distinct problems you see at 200 mm focal length where it gets to 2.14%.

If those moderately serious distortion problems don’t suit you, you should think about the f/2.8 Nikkor. In its case, at no focal length the distortion exceeded a level of 1.4%.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

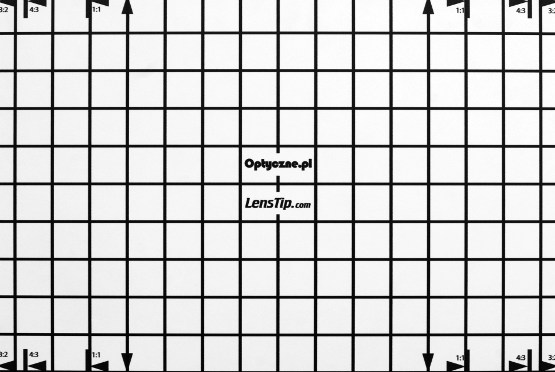

Nikon D200, 70 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion

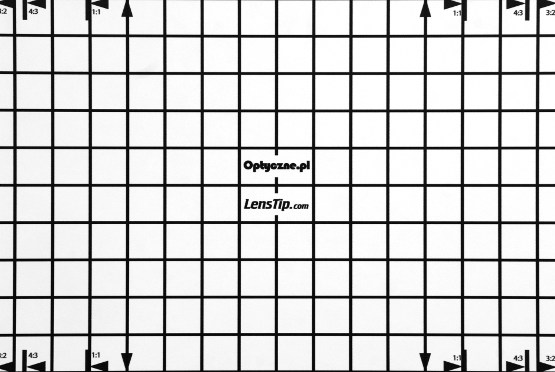

Nikon D200, 135 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion

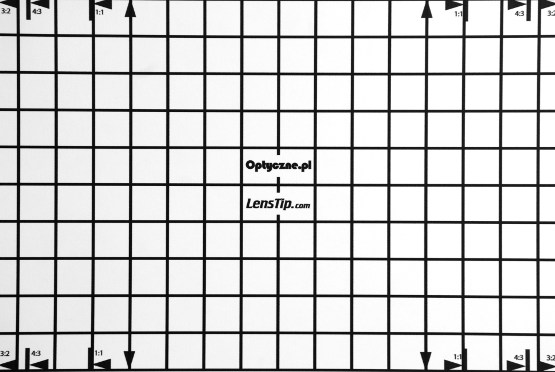

Nikon D200, 200 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion

Nikon D3x, 70 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion

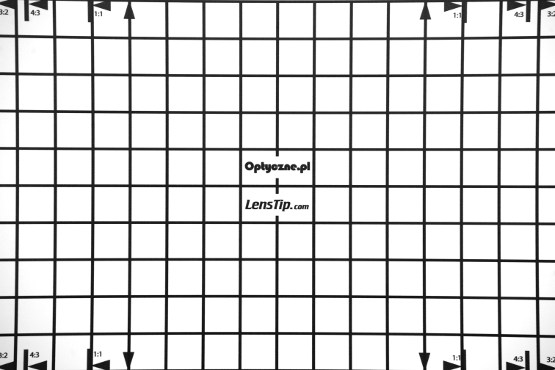

Nikon D3x, 135 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion
Nikon D3x, 200 mm
Nikon Nikkor AF-S 70-200 mm f/4.0G ED VR - Distortion
