Lens review

Carl Zeiss Otus 55 mm f/1.4 ZE/ZF.2

18 November 2013
Arkadiusz Olech

8. Vignetting

The following thumbnails show the Otus vignetting results on the smaller sensor of the Nikon D7000.

Carl Zeiss Otus 55 mm f/1.4 ZE/ZF.2 - Vignetting


It is clear there are no serious problems here – even at the maximum relative aperture the relative brightness loss in the frame corners is just moderate, amounting to 24% (-0.79 EV). That aberration becomes slight already on stopping down to f/2.0, where it reaches 14% (-0.42 EV). The problem disappears completely by f/2.8, where the vignetting is just 4% (-0.11 EV).


Please Support Us

If you enjoy our reviews and articles, and you want us to continue our work please, support our website by donating through PayPal. The funds are going to be used for paying our editorial team, renting servers, and equipping our testing studio; only that way we will be able to continue providing you interesting content for free.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The chart below compares the results of the Zeiss Otus 1.4/55 and those of its rivals.


Zeiss
Otus 1.4/55
Voigtlander
1.4/58
Nikkor
AF-S 1.4/50G
Zeiss Makro
Planar 2.0/50
f/1.4
24%
28%
29%
-
f/2.0
14%
9%
12%
33%
f/2.8
4%
3%
3%
15%


Let’s check now what results we got on full frame of the Nikon D3x. The appropriate thumbnails are presented below.

Carl Zeiss Otus 55 mm f/1.4 ZE/ZF.2 - Vignetting

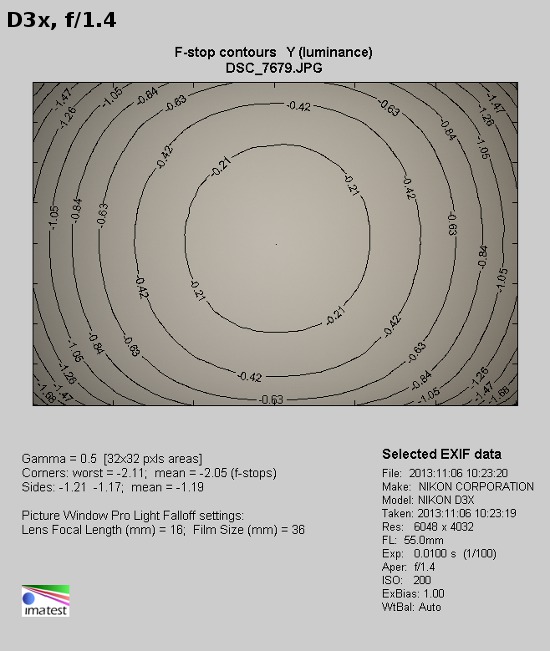

Here the situation is much worse. At the maximum relative aperture you must take into account the light fall-off of as much as 51% in the frame corners (-2.05 EV). By f/2.0 the vignetting level still remains significant, reaching 39% (-1.41 EV). A moderate level of that aberration can be noticed by f/2.8 where we got 21% (-0.69 EV). The vignetting disappears almost completely by f/4.0, where it is just 9% (-0.28 EV).

The chart below shows that, despite its huge physical dimensions, the Zeiss Otus doesn’t compare favourably with its rivals in this category. The Voigtlander 1.4/58, much smaller than the tested lens, is just slightly worse by f/1.4 but fares better on stopping down. It is quite a surprise.


Zeiss
Otus 1.4/55
Voigtlander
1.4/58
Nikkor
AF-S 1.4/50G
Zeiss Makro
Planar 2.0/50
f/1.4
51%
52%
56%
-
f/2.0
39%
36%
41%
49%
f/2.8
21%
18%
24%
31%
f/4.0
9%
8%
13%
16%
