Lens review

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM

27 June 2014
Arkadiusz Olech

4. Image resolution

The resolution test of the Sigma C 18–200 mm f/3.5–6.3 DC Macro OS HSM was based on RAW files generated by the Canon EOS 50D. The best lenses, tested on that camera, can go as high as 52-55 lpmm and the decency level is situated near 34-35 lpmm.

Let’s check first how the Sigma presented itself in the frame centre – the following graph, with results at 18,50,100 and 200 mm focal lengths, will make it easier to assess.

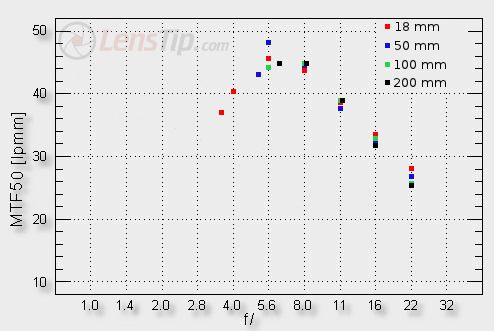

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Image resolution


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


In the case of mega zoom lenses it’s typical that their resolution decreases noticeably with the increase of the focal length. However we are pleased to say the new Sigma is free of that flaw. The highest result of about 48 lpmm the lens achieves at 50 mm focal length; still even the 200 mm doesn’t lag behind a lot, at the maxium relative aperture and on slight stopping down reaching near 46 lpmm, a value deemed to be very good. Even when wide open the lens can provide images we don’t hesitate to call sharp. Apart from a very consistent performance at all focal lengths you should emphasize the fact that the Sigma remains useful across the whole aperture range. Even by the fastest aperture, that of f/3.5 at 18 mm focal length, the MTFs reach 36 lpmm so safely above the decency level.

Those results show that the mega zooms evolution moves in the right direction. Not so long ago the manufacturers managed to eliminate weak points in the centre of the frame and now you can watch another good move – leveling out of performance at all focal lengths while maintaining a very high standard.

Let’s check now the situation on the edge of the frame.

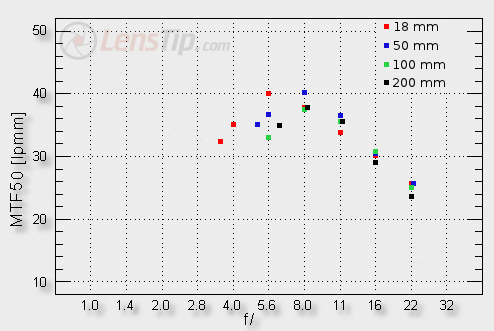

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Image resolution


So far, every zoom lens tested by us has showed a significant crisis on the edge. Usually the weakest focal lengths were included in a range from 50 to 100 mm, with a very weak image quality at the maximum relative aperture which hardly improved on stopping down. In the case of the new Sigma 18-200 mm OS the maximum relative aperture is the weakest at 18 and 100 mm focal lengths. Still the results you get there are only slightly under the decency level; it’s enough to stop down the lens just a bit to get fully useful images. What’s more near f/8.0 the image is of really good quality no matter what focal length you employ. Perhaps in a case of an expensive fixed focal length device such a performance wouldn’t be impressive but in a case of an amateur megazoom it is really something worth praising.

What can be written in the summary? Even a few years ago a 18-200 mm class megazoom lens without any weak points seemed to be a preposterous idea. Today it is an established fact - all because of the modest Sigma.

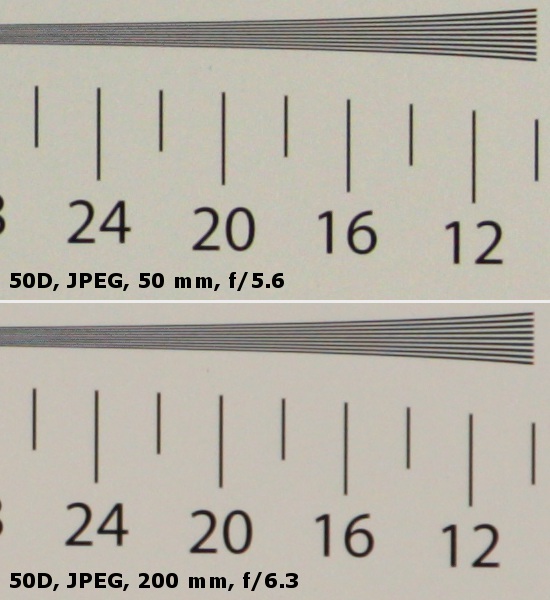

At the end let’s look at the crops taken from our resolution testing chart photos, saved as not sharpened JPEG files along with RAW files we used for the analysis above.

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Image resolution
