LensTip.com

Lens review

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM

27 June 2014
Arkadiusz Olech

7. Coma, astigmatism and bokeh

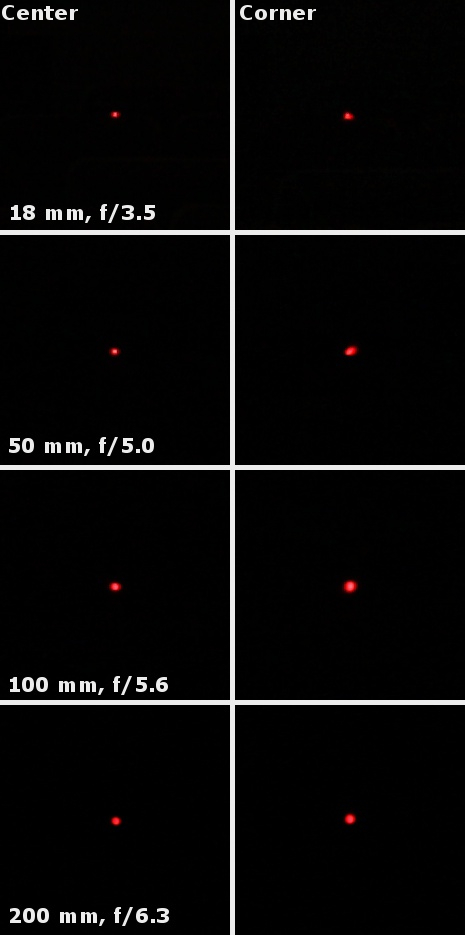

It would be difficult to have any serious reservations concerning the coma correction. The image of a diode in the frame corner is perhaps not perfectly round but the deformations are not that serious either. Taking into account difficult parameters of the lens we think the result of the Sigma is still good.

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Coma, astigmatism and bokeh


The astigmatism, understood as an average difference between horizontal and vertical MTF50 function values, amounted to 6.5%. It is a moderate result but you should keep in mind the fact that it is an average value, worked out for all focal lengths. The peak of this aberration you get near 100 mm where it is over 11% so entering medium levels.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

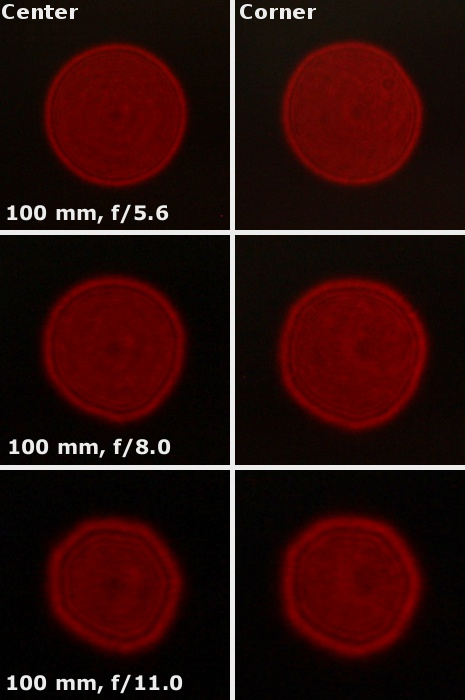

An advantage of defocused light points is such that the images you get in the corner don’t differ much from those in the centre. Still there are also very visible faults like the rim on the edge and their not especially round shape. After stopping down the aperture shape looks more like an egg than a circle. The producers really could have made a better effort here. By the way such savings as this one make me wonder: how would the lens be priced if, instead of the aperture you get now, the producer put a nice, circular one, with nine diaphragm blades? Somehow I don’t think the difference would be really big…

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Coma, astigmatism and bokeh
