LensTip.com

Lens review

Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM

27 June 2014
Arkadiusz Olech

6. Distortion

It is extremely difficult to correct properly the distortion in megazoom lenses. As a result at the wide angle you often see barrel deformations which level can get near -5%. At longer focal lengths you deal with ‘pincushion’ which value can exceed 2%. The chart we show below sums it up pretty well.


Sigma
18–200 II OS
Canon
18–200 IS
Nikkor
18–200 VR
Sigma
18–200 OS
Tamron
18–200
18 mm
−3.96%
−5.06%
−5.40%
−4.40%
−5.14%
50 mm
2.44%
1.82%
1.59%
1.20%
1.78%
100 mm
2.09%
1.41%
1.46%
1.00%
1.38%
200 mm
1.78%
1.32%
1.21%
1.00%
1.17%


The newest Sigma C 18–200 mm OS, when stacked up against its rivals, fares very well. At 18 mm you get barrel distortion which value we measured as −3.72%. It remains undoubtedly the best result of all the 18-200 mm lenses we’ve tested so far. At 35 mm you deal already with pincushion deformations amounting to +1.83%. They increase to +2.12% at 50 mm focal length but then their level decreases. At 75 mm the distortion reaches +1.93%, at 125 mm it is +1.64% and at 200 mm it gets to +1.51%. The new model fares better than the old one at every focal length. Also when compared to the competitors its performance is superior – the distortion is a bit higher at the longer end of the focal range but that increase, compared to the results reached by the rivals, is not big; instead you get a far lower level of deformations at the wide angle. I think it’s a price worth paying.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

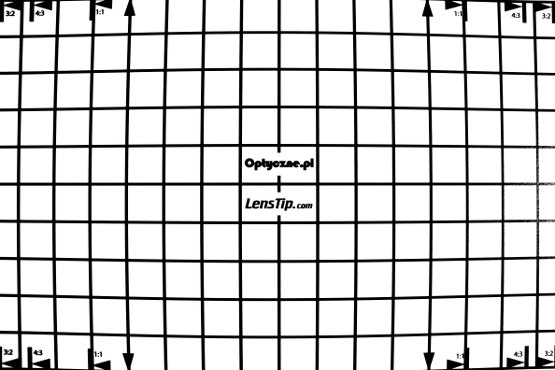

Canon 50D, 18 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion

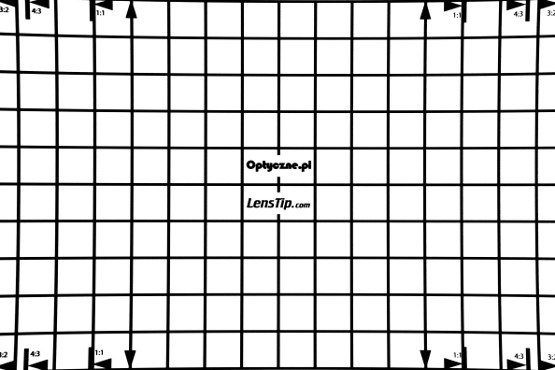

Canon 50D, 35 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion

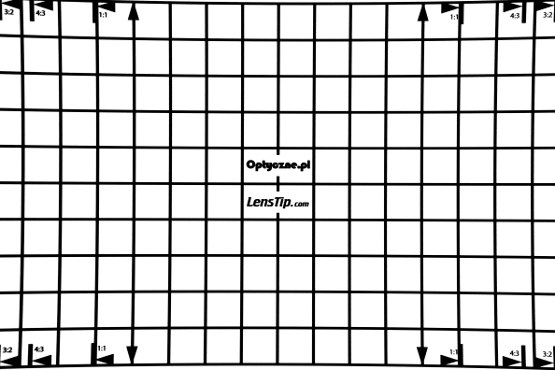

Canon 50D, 50 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion

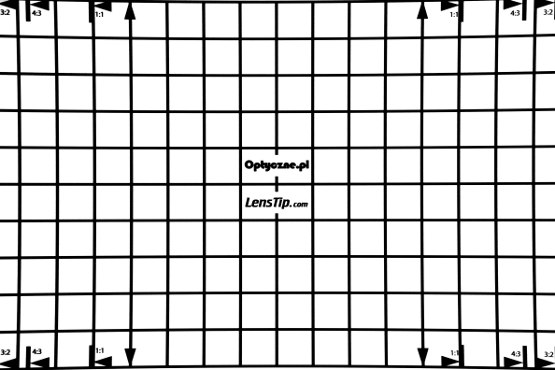

Canon 50D, 75 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion

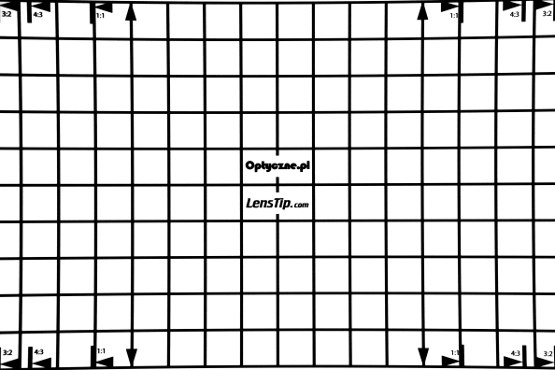

Canon 50D, 125 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion

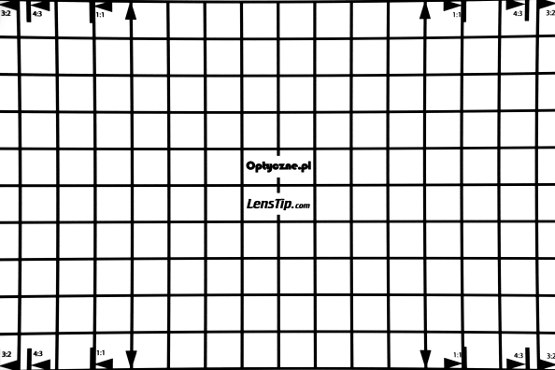

Canon 50D, 200 mm
Sigma C 18-200 mm f/3.5-6.3 DC Macro OS HSM - Distortion
