Fujifilm Fujinon XC 16-50 mm f/3.5-5.6 OIS

14 July 2014
Arkadiusz Olech

8. Vignetting

In the case of JPEG files the vignetting is corrected very efficiently by the software of the camera. You would be hard-pressed to notice it even at the maximum relative aperture where, at both ends of the range, it amounts to about 6-7% (about –0.2 EV) and in the middle of the focal range it reaches just 5% (-0.15 EV).

The situation changes noticeably if you consult the raw files developed by an independent program such as e.g. dcraw.

Fujifilm Fujinon XC 16-50 mm f/3.5-5.6 OIS - Vignetting


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

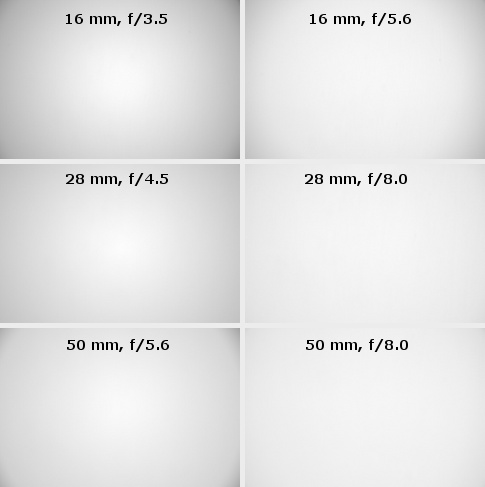

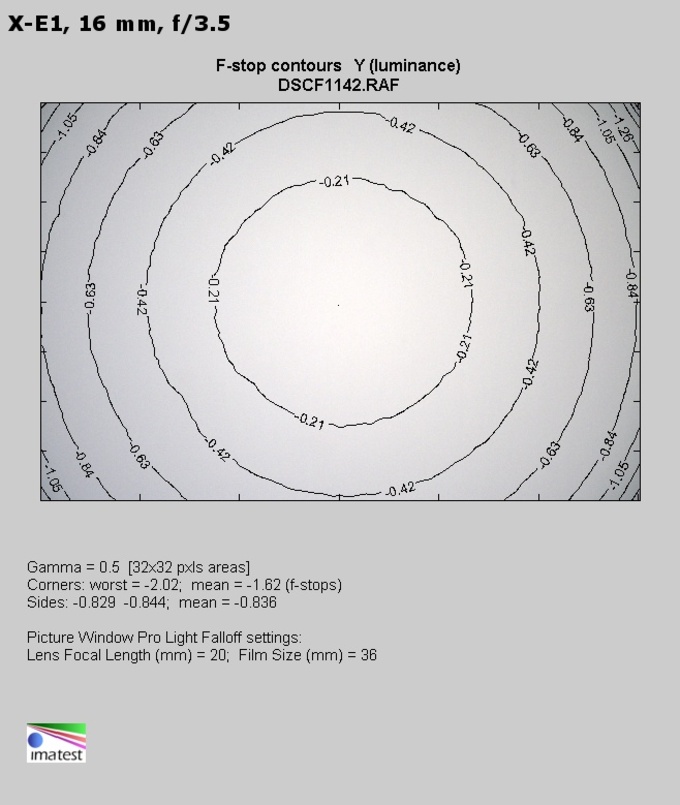

You can see significant problems at the wide angle where, at the maximum relative aperture, the vignetting reaches 43% (−1.62 EV). That value decreases to 34% (-1.22 EV) after applying f/4.0 and to 26% (-0.89 EV) if you stop down the lens to f/5.6. By f/8.0 the vignetting is still noticeable, getting to 19% (-0.61 EV) and by f/11 it decreases to 16% (-0.51 EV).

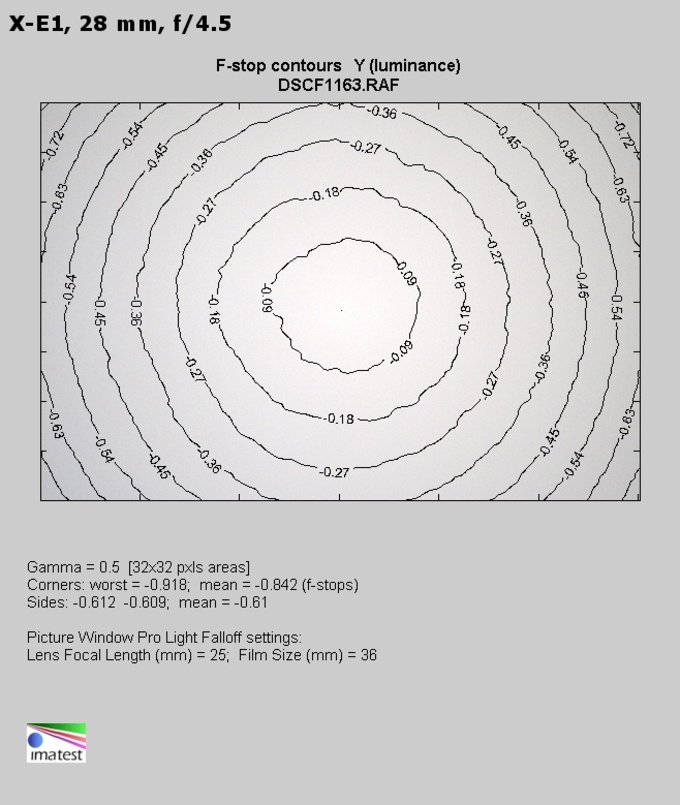

A significantly better situation can be observed in the middle of the focal range. At the maximum relative aperture the brightness loss in the frame corners amounts to a moderate value of 25% (-0.84 EV). By f/5.6 that aberration is decreased to 19% (-0.60 EV) and by f/8.0 it goes down even more, to 12% (-0.38 EV). Further stopping down has a very slight influence on vignetting: by f/11 it is 11% (-0.33 EV) so it doesn’t differ much from the result you got by f/8.0.

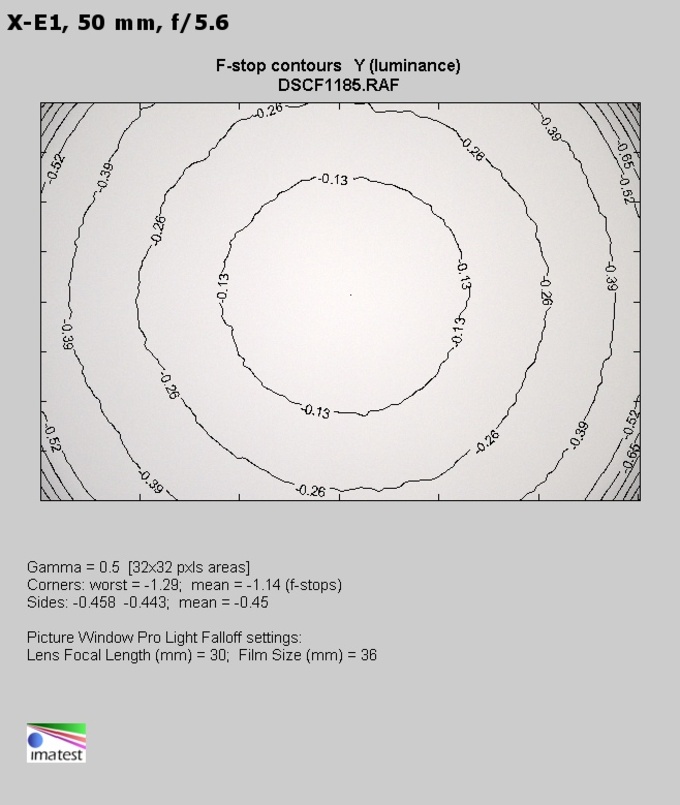

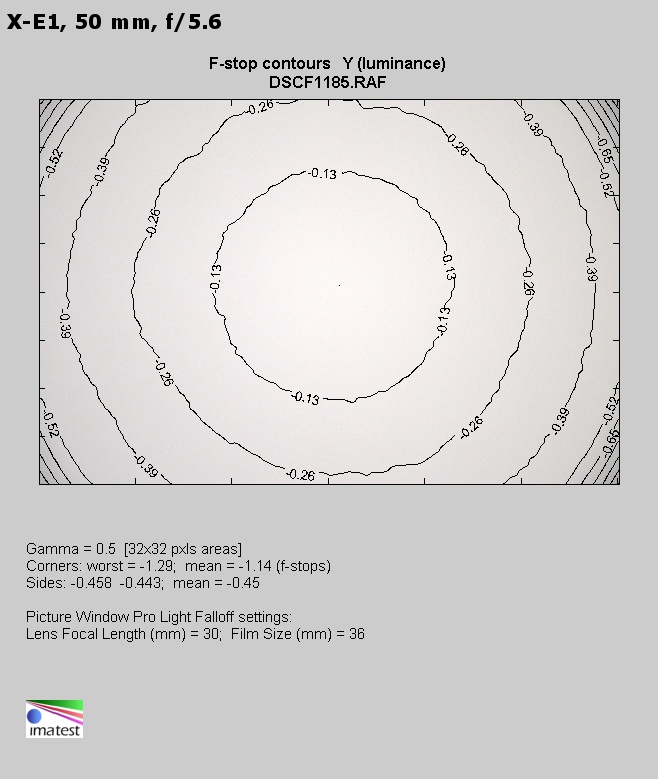

At the maximum focal length the vignetting increases again. By f/5.6 it is 32% (-1.14 EV) but fortunately on stopping down the lens to f/8.0 it becomes slight, reaching just 14% (-0.44 EV), and it disappears almost completely by f/11 (9%).

Fujifilm Fujinon XC 16-50 mm f/3.5-5.6 OIS - Vignetting

Fujifilm Fujinon XC 16-50 mm f/3.5-5.6 OIS - Vignetting

Fujifilm Fujinon XC 16-50 mm f/3.5-5.6 OIS - Vignetting
