Tokina AT-X PRO FX SD 70-200 f/4 VCM-S

16 September 2014
Arkadiusz Olech

6. Distortion

When you join the tested Tokina and the APS-C/DX sensor the distortion won’t be bothersome at all. At the beginning, in the middle and at the end of the focal range it amounts to, respectively −0.47%, +0.49% and +0.77%, never exceeding the 1.0 value.

A bit worse results, which is quite understandable, you see on full frame – we got respectively −0.61%, +1.27% and +1.73%. The distortion is clearly visible, especially at the longer focal lengths, but its level is not especially high. It is worth noticing that the Tokina fares here better than the more expensive Nikkor 70-200 f/4.0 VR.

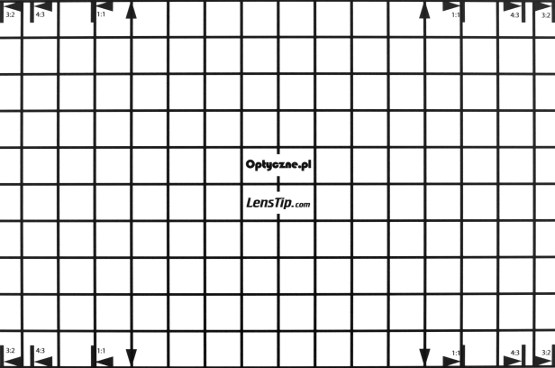

Nikon D7000, 70 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion

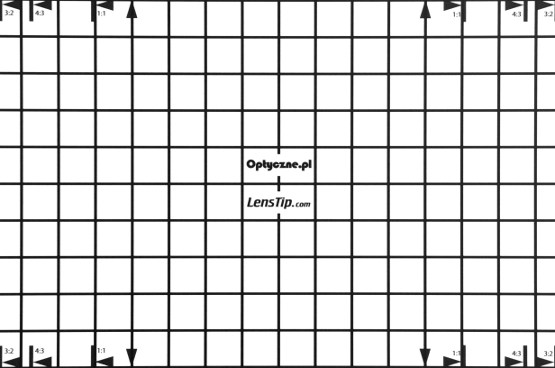

Nikon D7000, 135 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion

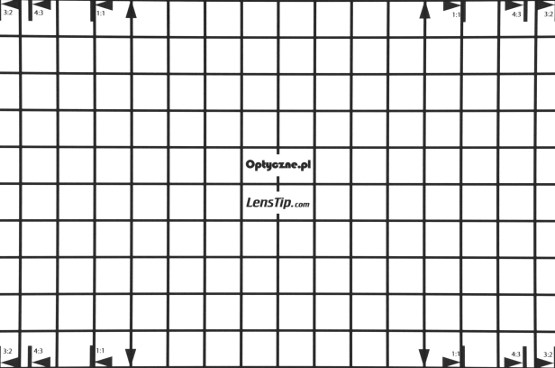

Nikon D7000, 200 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

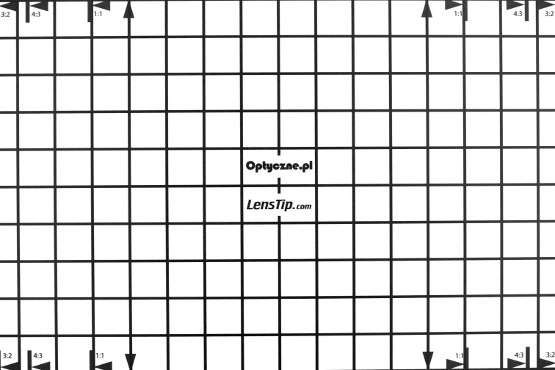

Nikon D3x, 70 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion

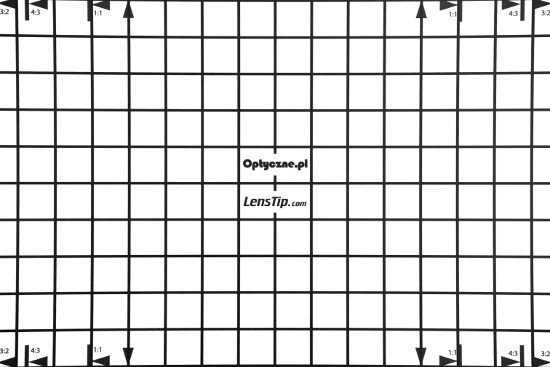

Nikon D3x, 135 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion

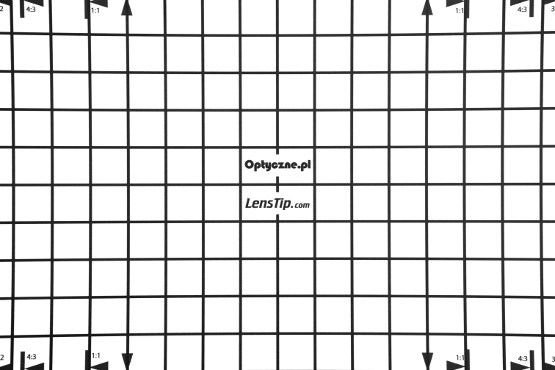

Nikon D3x, 200 mm
Tokina AT-X PRO FX SD 70-200 f/4 VCM-S - Distortion
