## Samyang 12 mm f/2.8 ED AS NCS Fish-eye

## 1. Introduction

where *alfa* is an angle at which incoming light beams fall into a lens; *R* is a distance between the image of an object point and the field centre and *f* means the focal length of a lens.

## Please Support UsThe coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy. |

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The first formula presents a mapping which maintains angular distances (that’s why it is also called equidistant), the second one preserves surface relations, the third (the so-called orthographic projection) preserves planar illuminance and the fourth (a stereographic projection) maintains angles. Of course every one of these means the image will have large amounts of barrel distortion – abandoning rectilinear imagery is, after all, the basic property of lenses with angles of view of 180 degrees or more.

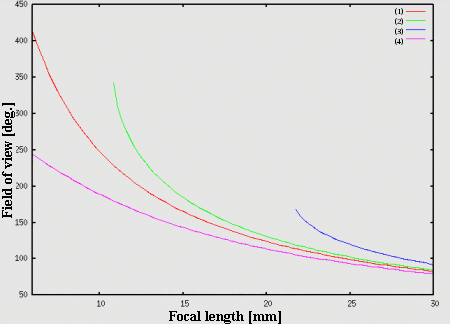

Now we can easily show the relation between the angle of view and the focal length of the lens using all mappings, described above. The result of such an operation is presented in the picture below (we assume that a 35 mm film or a 24×36 mm sensor is our given detector ).

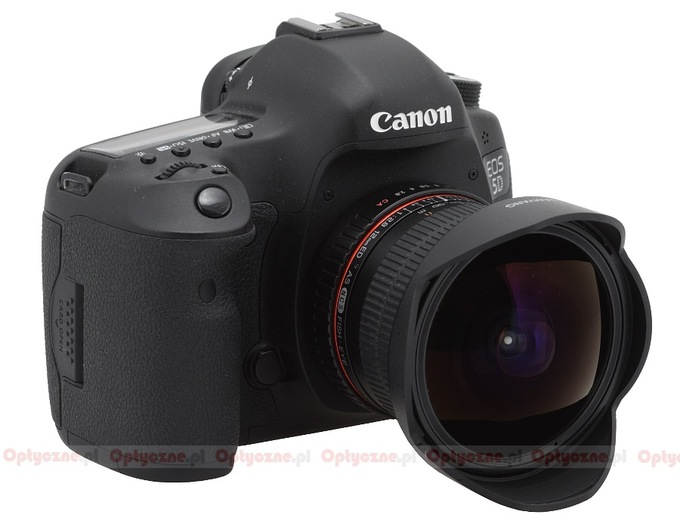

The Samyang 12 mm f/2.8 ED AS NCS Fish-eye, tested by us, is a diagonal fisheye lens with 12 mm focal length, designed for full frame detectors. One glance at the graph above and you know that an angle of view of 180 degrees at a focal length near 12 mm is achieved for the pink line, described by the formula number 4 so for the stereographic mapping. In photography it can provide visual effects perhaps the most pleasant to the eye because in the corners of the field of view the objects aren’t compressed that much, with the shapes preserved close to their original form; also the curvatures of straight lines are quite moderate for such a type of lens. Still the stereographic lenses are difficult to construct and, in consequence, quite expensive. That’s why the fact that Samyang decided to launch such a lens on the market should be doubly appreciated. Mind you it is not the only lens of this type – let’s remind here that Korean company have already launched the Samyang 8 mm f/3.5 Aspherical IF MC Fish-eye designed for reflex cameras with an APS-C/DX sensor so a stereographic fisheye device; in fact it was one of the first optical instruments of their production.

After that a bit theoretical introduction we have the pleasure to present our test – enjoy! We would like to thank the distributor of Samyang in Poland, Next77, for lending us one specimen of that lens for testing purposes.

You are also invited to get acquainted with our test procedure, described in the article "How do we test lenses?" If you feel it’s still not enough, please go to our FAQ section where you can find some further explanation.
