LensTip.com

Lens review

Nikon Nikkor AF-S 300 mm f/4E PF ED VR

13 March 2015
Arkadiusz Olech

8. Vignetting

First let’s check how the tested Nikkor 4/300 PF fares in this category on a small sensor of the Nikon D7000. Appropriate thumbnails are presented below.

Nikon D7000, f/4.0 Nikon D7000, f/5.6
Nikon Nikkor AF-S 300 mm f/4E PF ED VR - Vignetting Nikon Nikkor AF-S 300 mm f/4E PF ED VR - Vignetting


You see almost no problems here. Even at the maximum relative aperture the vignetting level of the Nikkor can be called moderate at most because the brightness loss in the frame corners amounts to just 18% (−0.56 EV). By employing the f/5.6 aperture you can make this problem disappear completely because the value we registered there was just 6% (−0.18 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Taking into account small dimensions of the lens and the implementation of a new technology we were very curious about its vignetting performance on full frame. Let’s glance at thumbnails below to assess it properly.

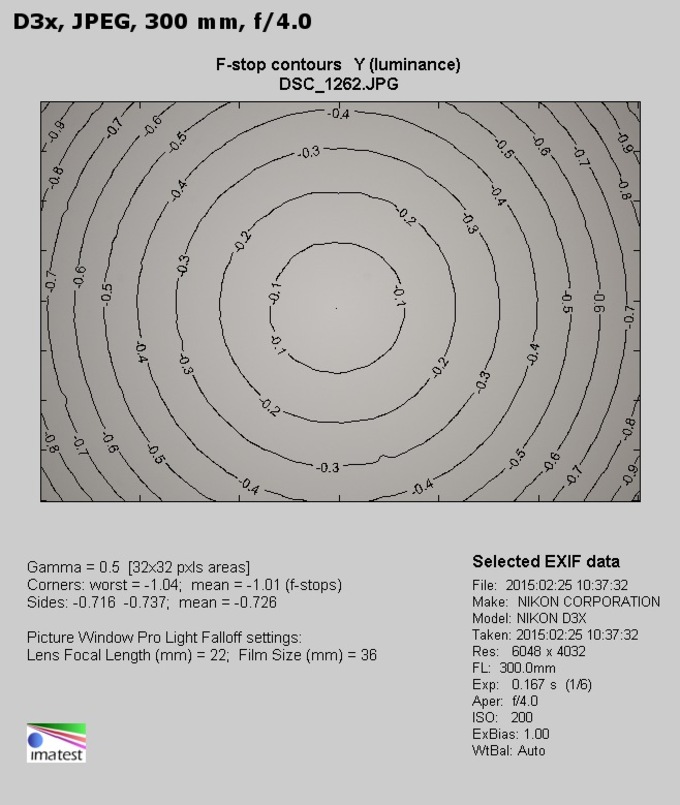

Nikon D3x, f/4.0 Nikon D3x, f/5.6
Nikon Nikkor AF-S 300 mm f/4E PF ED VR - Vignetting Nikon Nikkor AF-S 300 mm f/4E PF ED VR - Vignetting


It seems the results are very similar. At the maximum relative aperture the vignetting might still be a bit bothersome, reaching 29% (−1.01EV), but already by f/5.6 it becomes slight, amounting to 15% (−0.47 EV), and by f/8.0 it disappears completely (9%).

In this category the new technology seems to be working very well; it is very difficult to construct a small lens with a sensible aperture fastness which, additionally, doesn’t have any serious vignetting problems employing just classic optical solutions.
