LensTip.com

Lens review

Sigma A 20 mm f/1.4 DG HSM

3 November 2015
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

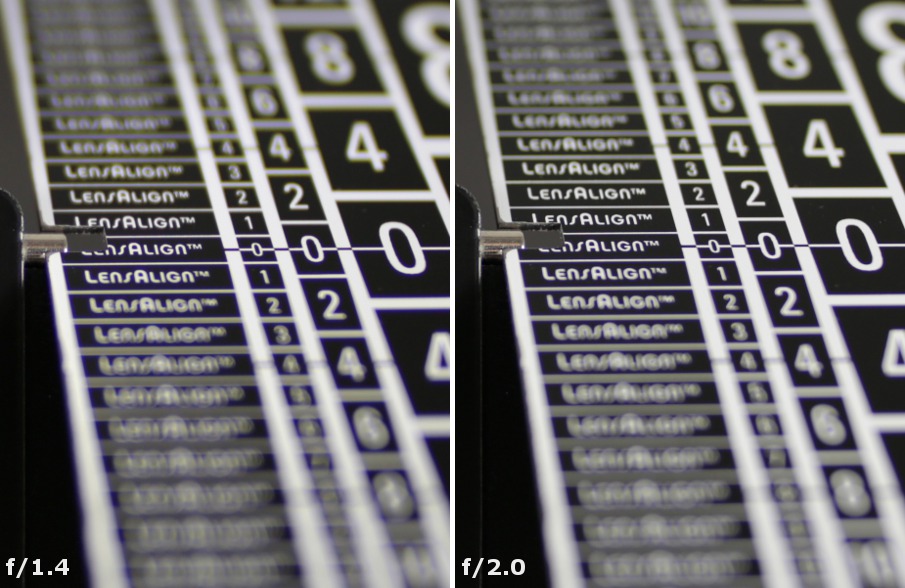

The longitudinal chromatic aberration is not corrected in a perfect way. The slight cast (yellow for images after the focus and blue for images before the focus) is visible at the maximum relative aperture even on stopping down to f/2.0.

Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

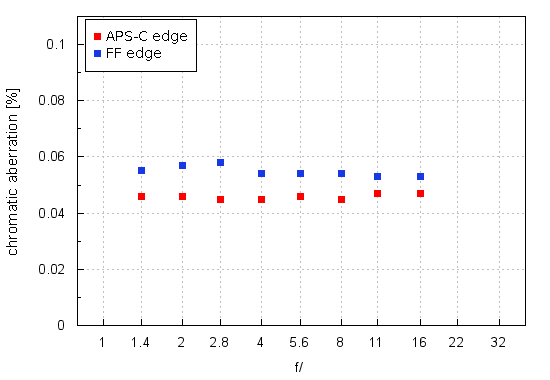

When it comes to the lateral chromatic aberration the situation looks much better. Its function, depending on the aperture values, for both types of detectors presents a graph below.

Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration


All results range from 0.04 to 0.06% which means the aberration is practically imperceptible. This is a performance very similar to that of the Nikkor AF-S 20 mm f/1.8G ED as in its case we got a level of about 0.06–0.07%.

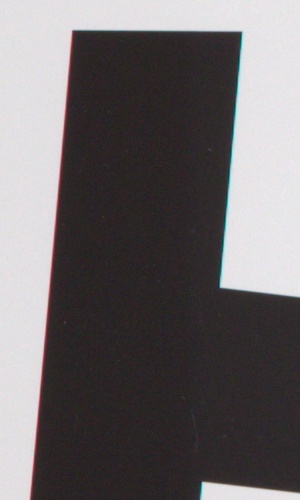

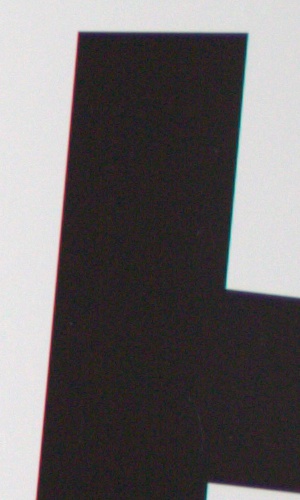

Canon 5D III, f/1.4 Canon 5D III, f/8.0
Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration


Spherical aberration

The tested lens didn’t show any „focus shift” effect and images you get by f/1.4 are very sharp in the centre of the frame, without the characteristic contrast decrease connected to the presence of the spherical aberration. In photos of defocused circles of light you still can notice a very delicate influence of that aberration, though. The circle we got in front of the focus has a slightly darker edge than the circle behind the focus. Still that effect remains slight and it doesn’t change our positive assessment of the lens in this category.

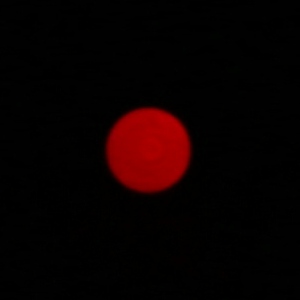

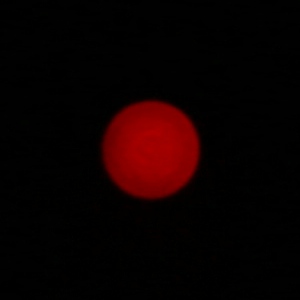

Canon 5D III, f/1.4, in front of Canon 5D III, f/1.4, behind
Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration Sigma A 20 mm f/1.4 DG HSM - Chromatic and spherical aberration
