Sigma A 20 mm f/1.4 DG HSM

3 November 2015
Arkadiusz Olech

8. Vignetting

First let’s check how the Sigma 1.4/20 performs in the vignetting category on the small sensor of the Canon 50D. The appropriate thumbnails are presented below.

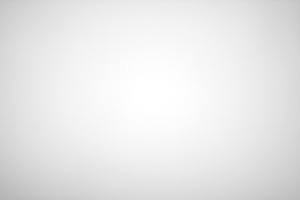

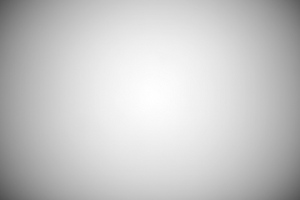

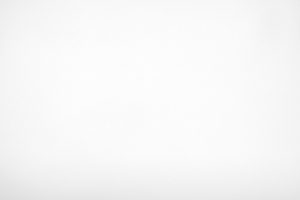

Canon 50D, f/1.4 Canon 50D, f/2.0
Sigma A 20 mm f/1.4 DG HSM - Vignetting Sigma A 20 mm f/1.4 DG HSM - Vignetting


The problems are slight here, noticeable in fact only at the maximum relative aperture where that aberration reaches 26% (−0.86 EV). On stopping down the aperture to f/2.0 you see it decrease to an imperceptible level of 9% (−0.27 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let’s check how the situation changes when you employ the full frame.

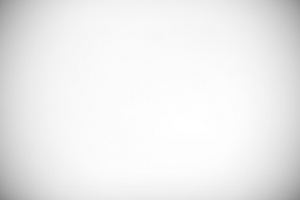

Canon 5D III, f/1.4 Canon 5D III, f/2.0
Sigma A 20 mm f/1.4 DG HSM - Vignetting Sigma A 20 mm f/1.4 DG HSM - Vignetting

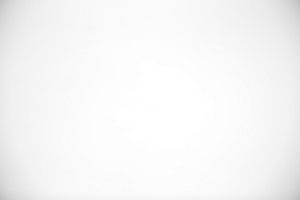

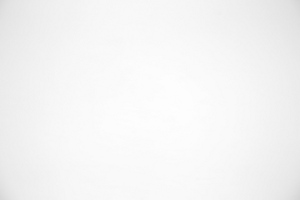

Canon 5D III, f/2.8 Canon 5D III, f/4.0
Sigma A 20 mm f/1.4 DG HSM - Vignetting Sigma A 20 mm f/1.4 DG HSM - Vignetting


There are no surprises here. Already in their press release connected to the launch of the tested lens the producer honestly admitted the level of vignetting was high. Our measurements confirm that much. At the maximum relative aperture you lose as much as 65% of light so −3.02 EV. After stopping down the lens to f/2.0 the situation improves a lot but the vignetting still remains distinct, amounting to 43% (−1.61 EV). The moderate level of that aberration, that of 24% (−0.70 EV) can be observed by f/2.8. The problems end by f/4.0 and  f/5.6, where the vignetting reaches respectively 15% (−0.47 EV) and 11% (−0.34 EV). Further stopping down doesn’t have any measurable influence on the vignetting.

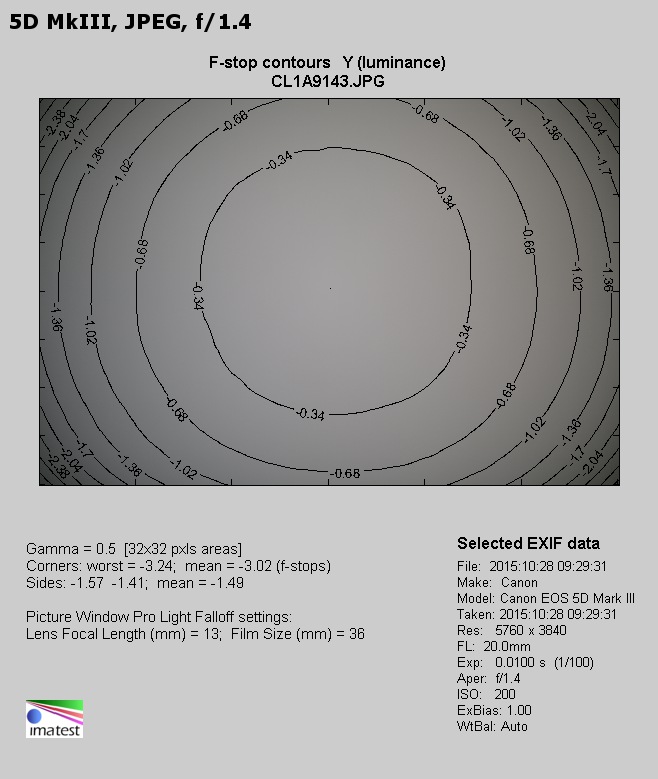

Sigma A 20 mm f/1.4 DG HSM - Vignetting
