Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX

30 March 2016
Arkadiusz Olech

8. Vignetting

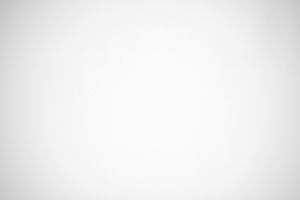

Let’s glance at the thumbnails below to assess the Tokina’s vignetting performance on the sensor of the Canon 50D.

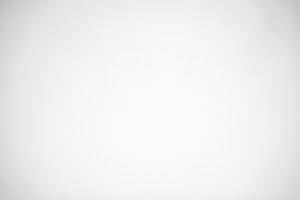

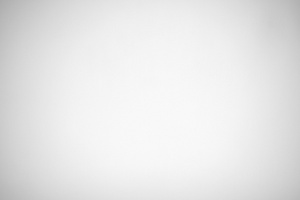

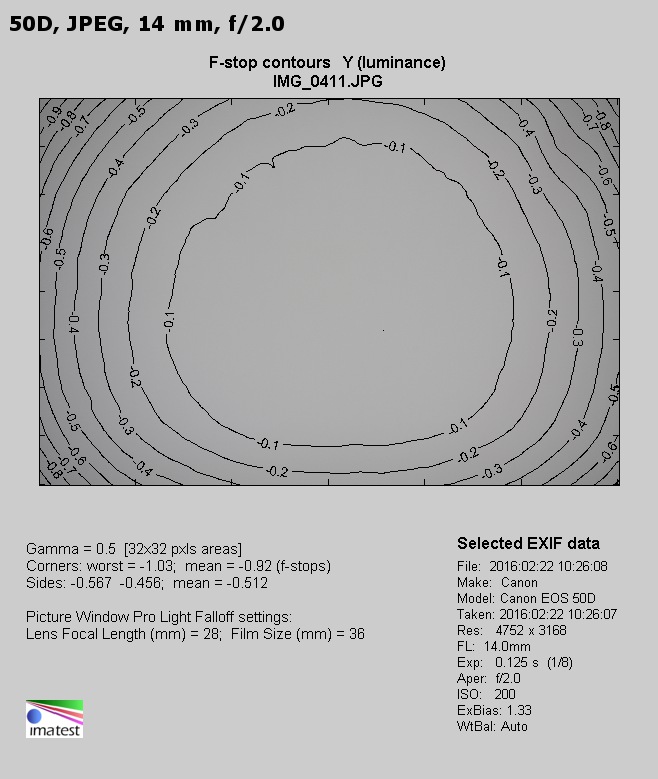

Canon 50D, 14 mm, f/2.0 Canon 50D, 14 mm, f/2.8
Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting

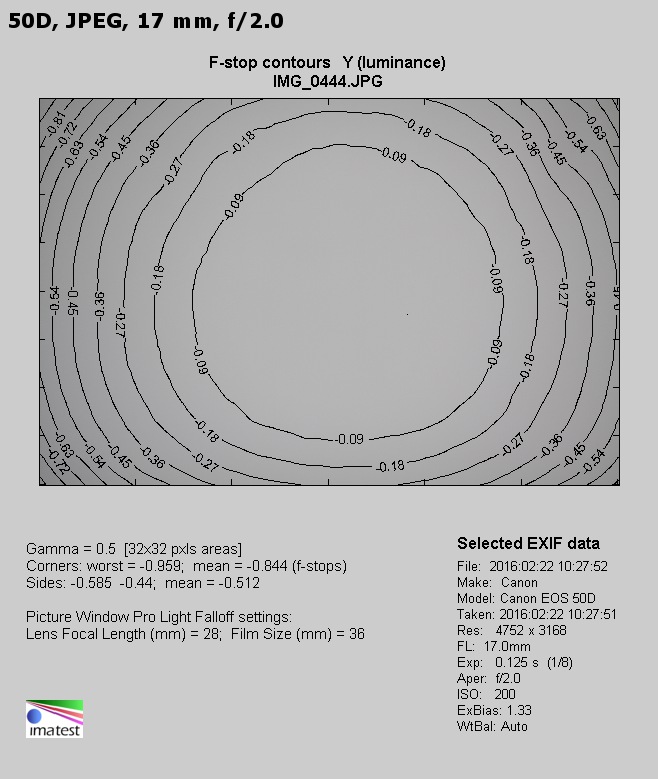

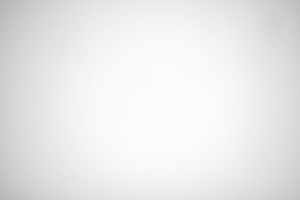

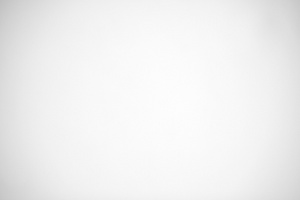

Canon 50D, 17 mm, f/2.0 Canon 50D, 17 mm, f/2.8
Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting

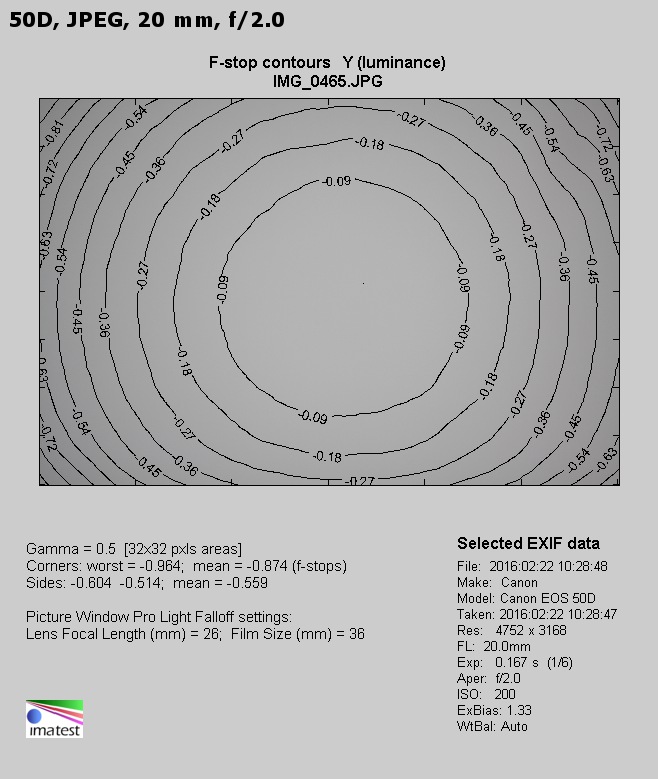

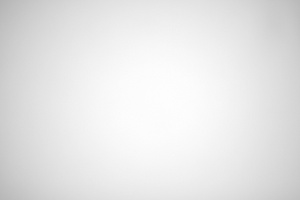

Canon 50D, 20 mm, f/2.0 Canon 50D, 20 mm, f/2.8
Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting Tokina AT-X PRO SD 14-20 mm f/2 (IF) DX - Vignetting


The combination of the 14 mm focal length and f/2.0 aperture is very difficult so we expected a lot of vignetting problems in that place. The result of the Tokina surprised us very positively because the brightness loss in the frame corners amounted here to 26% (−0.92 EV) which is just a moderate value. Still the fact that the vignetting decreases so slowly on stopping down is a flaw : by f/2.8 it is 21% (−0.68 EV), by f/4.0 it reaches 16% (−0.49 EV), and by f/5.6 it gets to 12% (−0.39 EV). Further stopping down doesn’t have any measurable influence on vignetting.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal range the situation is very much the same. At the maximum relative aperture the vignetting reaches 25% (−0.84 EV) and by f/2.8 it drops to 20% (−0.66 EV). By f/4.0 and f/5.6 the results we got amount to 15% (−0.49 EV) and 12% (−0.38 EV) respectively.

When you change the focal length to 20 mm you see practically no differences in the vignetting performance. By f/2.0 that aberration amounts to 26% (−0.87 EV), by f/2.8 it decreases to 20% (−0.66 EV), and by f/4.0 it drops to 15% (−0.38 EV). By f/5.6 you deal with a level of 12% (−0.38 EV) which doesn’t change on further stopping down.

To sum up the Tokina managed the correction of vignetting well enough, taking into account its parameters. For example the Sigma 18-35 mm f/1.8 had maximum results of 34-37% in that category and by f/2.0, the Tokina’s maximum aperture, it reached near 30%. Both lenses constitute a similar challenge for its constructors (the Sigma is a bit faster and features a wider focal range but the Tokina provides noticeably wider angles of view) so the fact that the Tokina performed a bit better in this category is the proof that you deal here of a lens of a very good quality.
