5. Chromatic and spherical aberration

Chromatic aberration

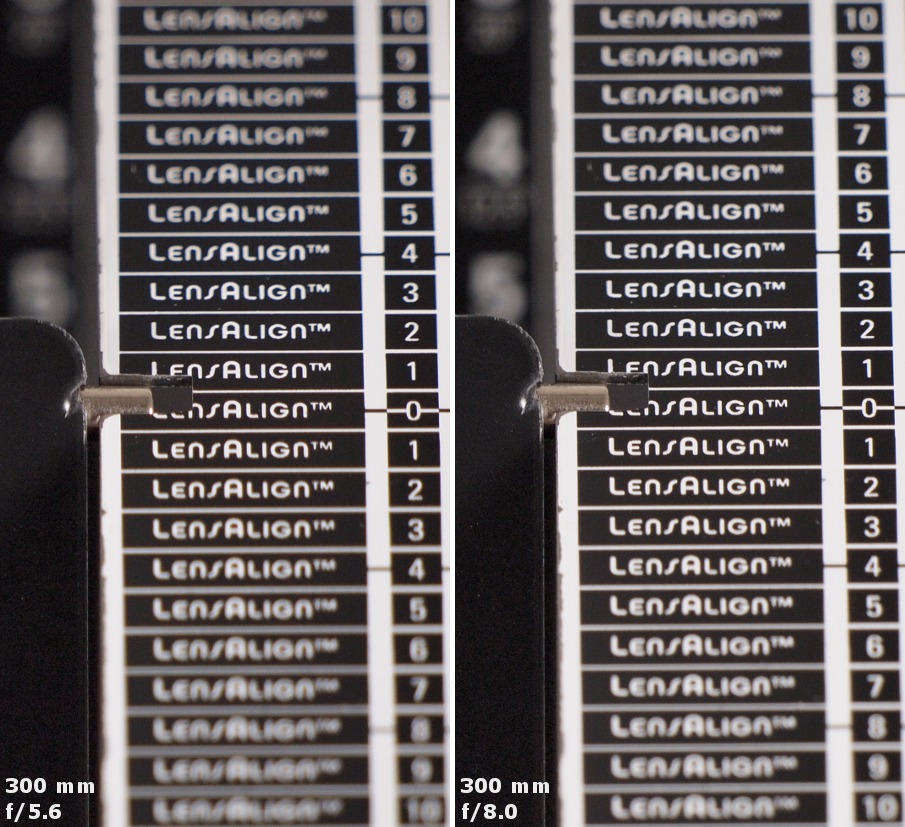

The Panasonic Leica DG Vario-Elmar 100–400 mm f/4.0–6.3 ASPH. POWER O.I.S. doesn’t have any problems related to the longitudinal chromatic aberration. Photos shown below were taken at 300 and 400 mm and it is clear that the cast of images situated outside the focus plane is slight and won’t spoil your photos.

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


The optics constructors of the Panaleica 100-400 mm also managed to correct the lateral aberration in a good way and the graph below shows it pretty well.

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration


The aberration never exceeds 0.09% and it means that at all combinations of apertures and focal lengths its level is low even if the results differ a bit. In the middle of the focal range the lowest values are seen at the maximum relative aperture and the level of the aberration increases noticeably on stopping down the aperture. At the shortest focal length the situation is reversed – at the 400 mm focal length the aberration depends weakly on the aperture values, keeping all the time near 0.07-0.08%.

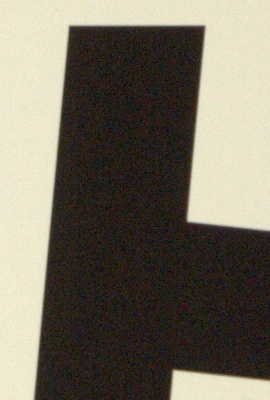

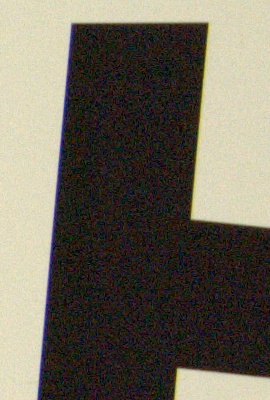

E-PL1, RAW, 100 mm, f/4.0 E-PL1, RAW, 200 mm, f/5.1
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter show clearly that the lens doesn’t have any problems with “focus shift”. Circles of light we got in front of and behind the focus seem to be very similar to each other. It all means the Panasonic 100-400 mm doesn’t have any noticeable problems with the correction of spherical aberration.

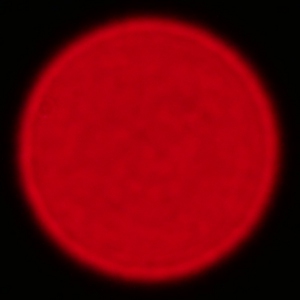

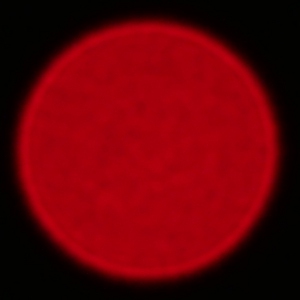

Panasonic G7, 300 mm, f/5.6, in front of Panasonic G7, 300 mm, f/5.6, behind
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Chromatic and spherical aberration
