8. Vignetting

First let’s check the level of vignetting for JPEG files – the appropriate thumbnails are shown below.

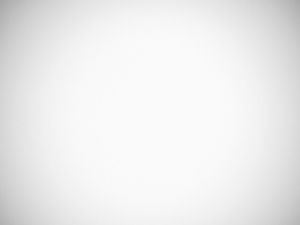

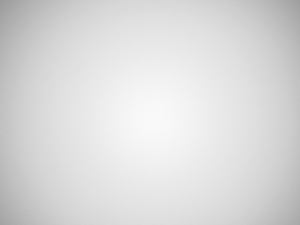

E-PL1, JPEG, 100 mm, f/4.0 E-PL1, JPEG, 100 mm, f/5.6
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

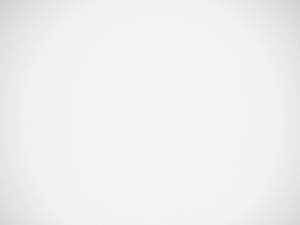

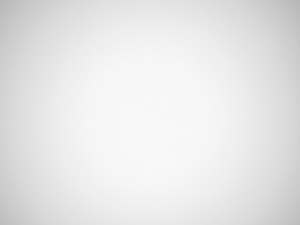

E-PL1, JPEG, 195 mm, f/5.0 E-PL1, JPEG, 195 mm, f/8.0
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

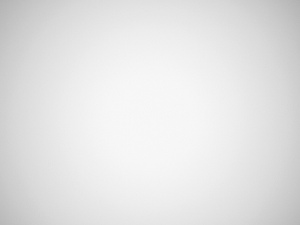

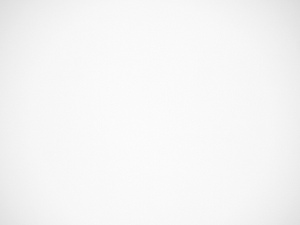

E-PL1, JPEG, 300 mm, f/5.6 E-PL1, JPEG, 300 mm, f/8.0
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

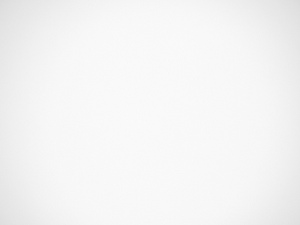

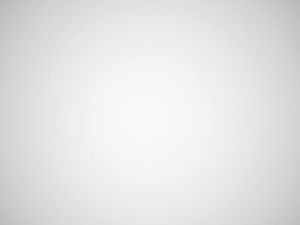

E-PL1, JPEG, 400 mm, f/6.3 E-PL1, JPEG, 400 mm, f/8.0
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

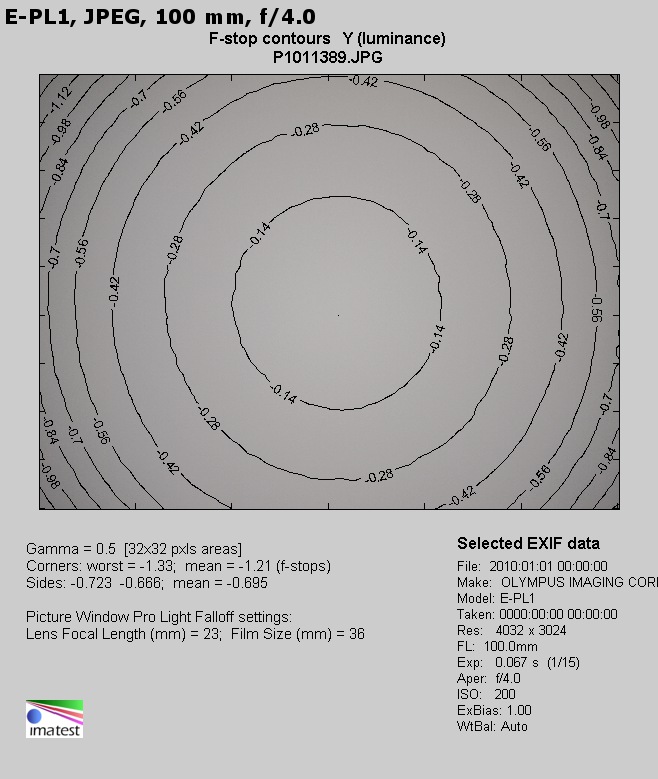

At 100 mm focal length and by f/4.0 aperture you lose as much as 34% (−1.21 EV) of light in the frame corners – not an impressing result taking into account the small size of the sensor. What’s more, the vignetting reacts slowly to stopping down: by f/5.6 it reaches 29% (−0.99 EV), and by f/8.0 it gets to 23% (−0.76 EV). You can still notice that aberration by f/11 and f/16, with the results respectively amounting to 18% (−0.58 EV) and 13% (−0.42 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

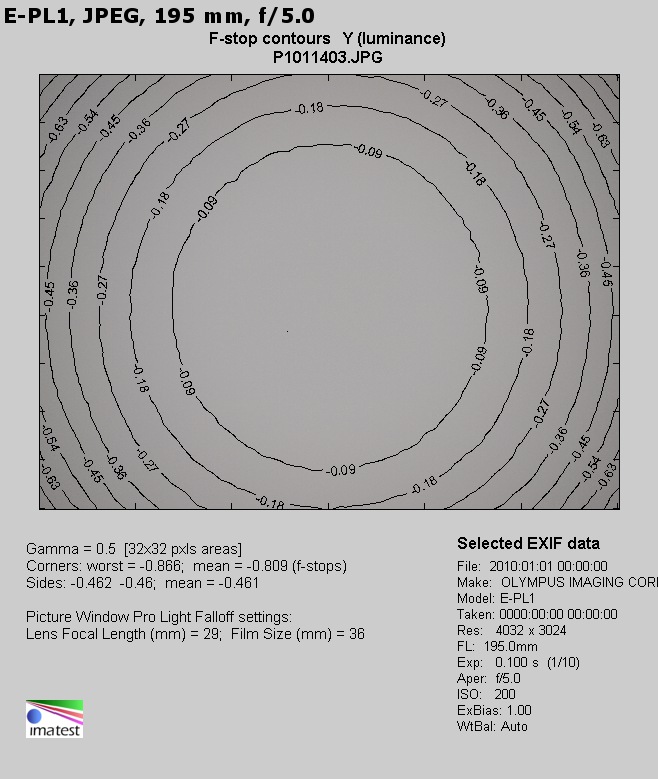

Fortunately longer focal lengths don’t give you any serious reasons to worry. At 200 mm and f/5.0 the vignetting is 24% (−0.81 EV), decreasing to 22% (−0.70 EV) on slight stopping down to f/5.6. Problems end near f/8.0 and f/11.0, where that aberration gets to 13% (−0.41 EV) and 7% (−0.20 EV) respectively.

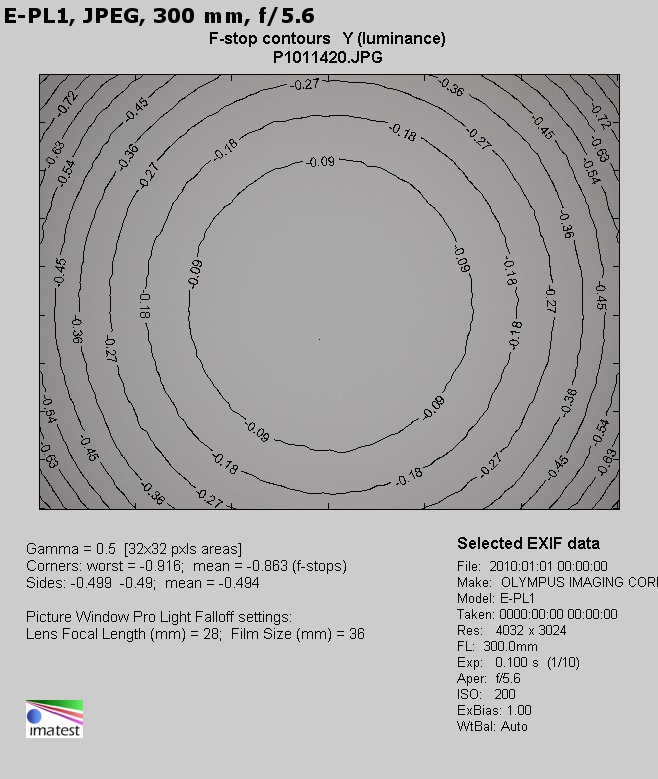

Similar performance can be observed at 300 mm focal length where, by f/5.6, the brightness loss measured by us in the frame corners amounted to 26% (−0.86 EV). It decreases to 10% (−0.32 EV) on stopping down to f/8.0 and by f/11 that aberration becomes imperceptible (5% and −0.14 EV).

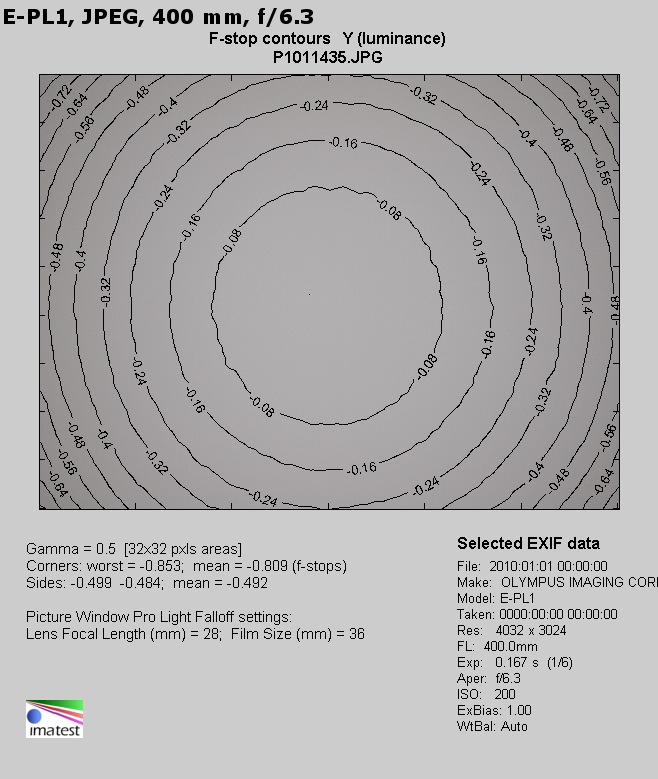

At the maximum focal length and with the lens wide open the vignetting reaches 24% (−0.81 EV). By f/8.0 that aberration decreases to 11% (−0.34 EV), and by f/11 it becomes simply negligible (3% and −0.10 EV).

After you progress from JPEG to RAW files the vignetting increases by 1-3%. It is mainly a result of slight cropping of JPEG files after distortion correction.

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Vignetting
