LensTip.com

Lens review

Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S.

12 June 2016
Arkadiusz Olech

6. Distortion

When it comes to the distortion correction the Micro 4/3 system often supports optics with appropriate software. The Panasonic Leica DG Vario-Elmar 100–400 mm f/4.0–6.3 ASPH. POWER O.I.S. is not an exception to that rule so its distortion level of JPEG files is simply perfect. At 100, 200, 300 and 400 mm we got the following results: +0.17%, +0.09%, +0.04% and +0.03%.

If you look at RAW files developed by independent software you are able to see that, fortunately, there are not many deformations to be corrected. At the same focal lengths as previously we got the following results: +1.14%, +1.11%, +0.91% and +0.82%. It seems the optics itself is quite efficient in correcting this aberration even without the support of the software.

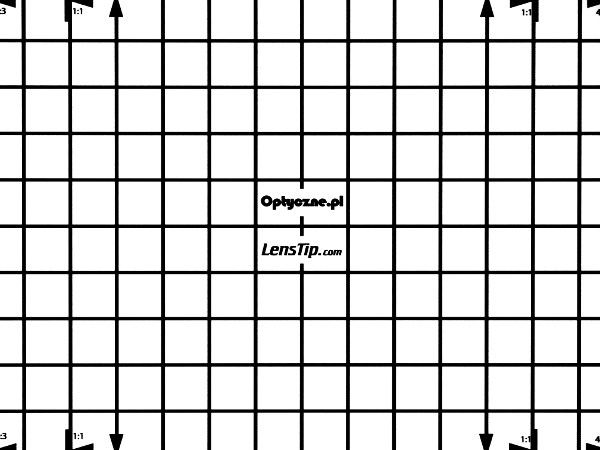

Olympus E-PL1, JPEG, 100 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

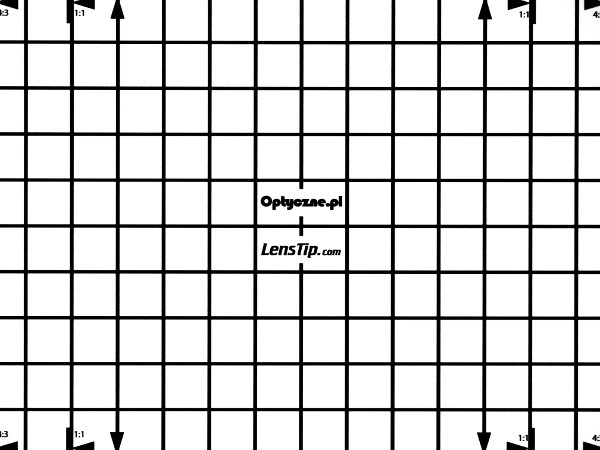

Olympus E-PL1, JPEG, 200 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

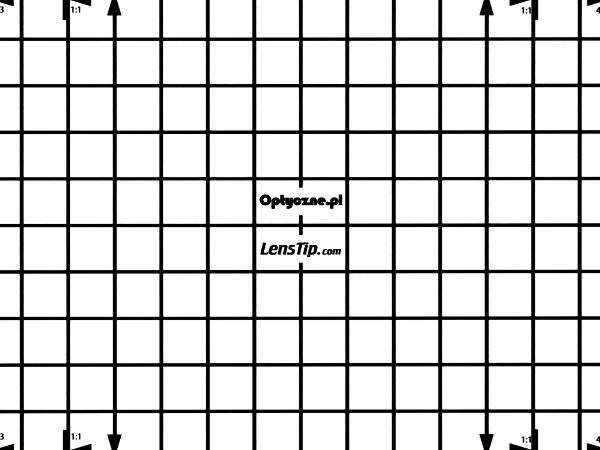

Olympus E-PL1, JPEG, 300 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

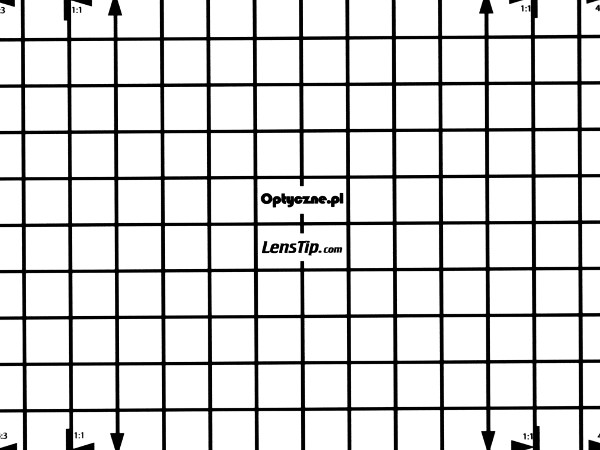

Olympus E-PL1, JPEG, 400 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

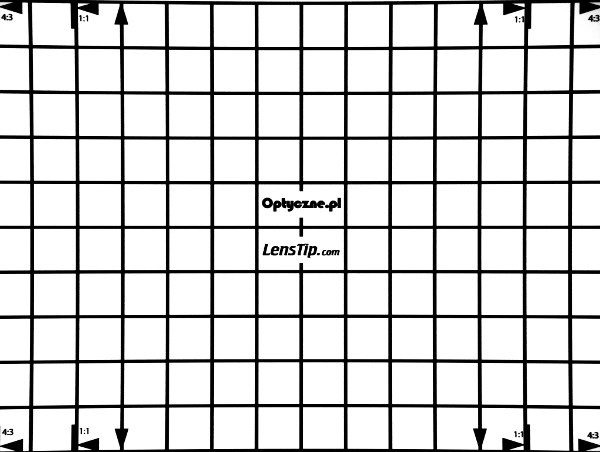

Olympus E-PL1, RAW, 100 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

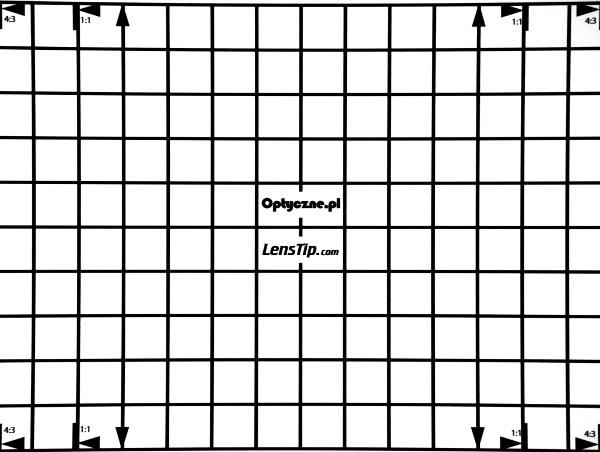

Olympus E-PL1, RAW, 200 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

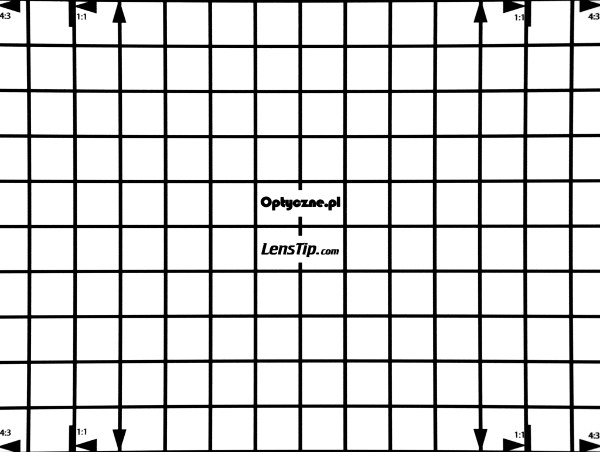

Olympus E-PL1, RAW, 300 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion

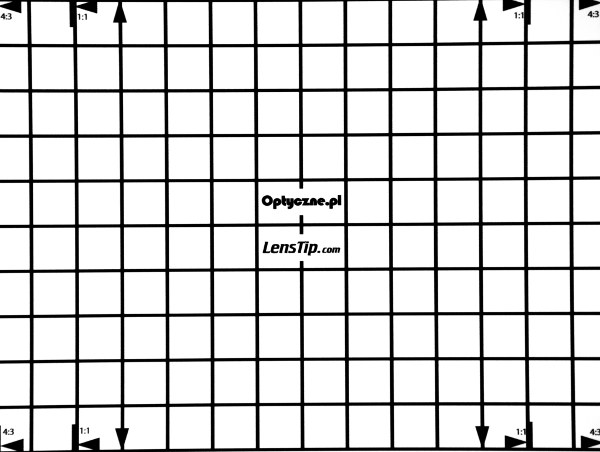

Olympus E-PL1, RAW, 400 mm
Panasonic Leica DG Vario-Elmar 100-400 mm f/4.0-6.3 ASPH. POWER O.I.S. - Distortion
