LensTip.com

Lens review

Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro

1 December 2017
Arkadiusz Olech

5. Chromatic and spherical aberration

Chromatic aberration

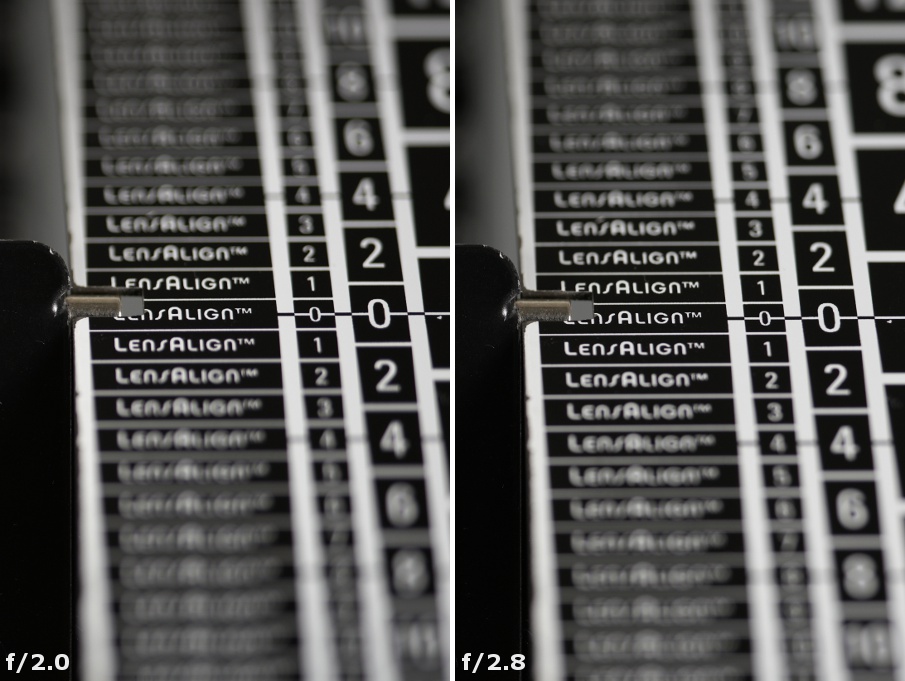

The Voigtlander fully deserves APO letters in its name. Even at the maximum relative aperture it would be difficult to notice any traces of longitudinal chromatic aberration.

Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration

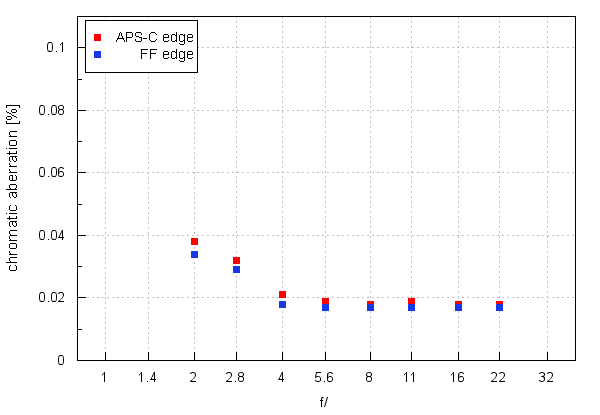

The graph below allows us to assess the correction of the lateral version of that aberration.

Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


Once again the tested lens can only be praised. The aberration level is the highest at the maximum relative aperture but even then it doesn’t exceed 0.04%, remaining very low. On stopping down the aperture the results are kept around a level of just a tad less than 0.02%. The degree of correction is excellent indeed. .

A7R II, RAW, f/2.0 A7R II, RAW, f/8.0
Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration


Spherical aberration

First photos of this chapter don’t feature any ‘focus shift’ effect. Additionally, when you consult defocused circles of light created in front of and behind the focus, you won’t notice anything disturbing either. These facts allow us to say that the tested lens doesn’t have any noticeable problems with spherical aberration.

A7R II, f/2.0, in front of A7R II, f/2.0, behind
Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration Voigtlander Apo-Lanthar 65 mm f/2 Aspherical 1:2 Macro - Chromatic and spherical aberration
