LensTip.com

Lens review

Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR

20 July 2018
Arkadiusz Olech

6. Distortion

When it comes to distortion correction the most of problems you encounter at the 10 mm focal length where you must deal with barrel deformations of -3.28%. What’s interesting, that result is lower than the result of the more expensive Nikkor 10-24 mm which showed a level of -3.77%. Still it must be mentioned that the image you get at 10 mm is quite interesting. When you move away from the frame centre deformations don’t change smoothly but by leaps. The distortion seems to be small in the area limited by 1:1 markers but later it becomes distinct.

After increasing the focal length to 12 mm the distortion decreases to -1.84%. At higher focal length there are almost no problems at all because at 15 mm we got a result of -0.69%, and by 20 mm it was just -0.28%.



Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

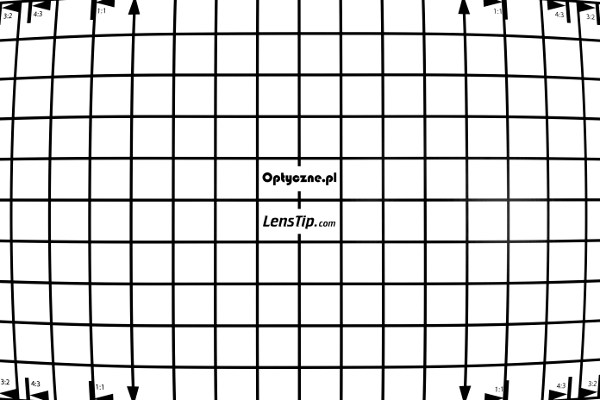

Nikon D500, 10 mm
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Distortion

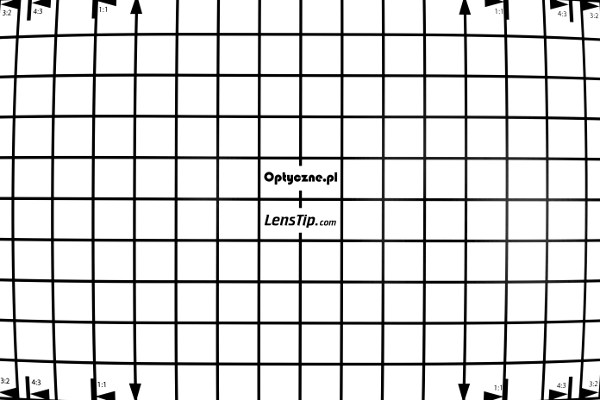

Nikon D500, 12 mm
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Distortion

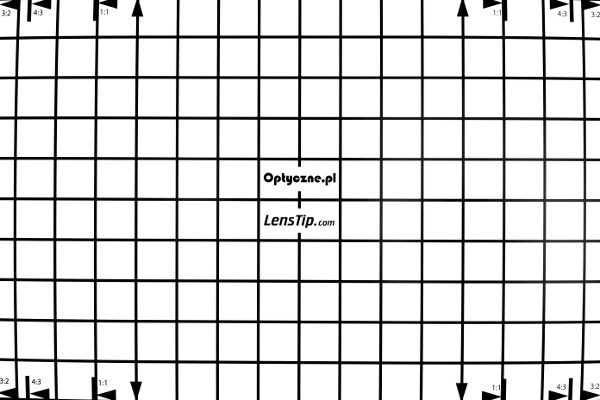

Nikon D500, 15 mm
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Distortion

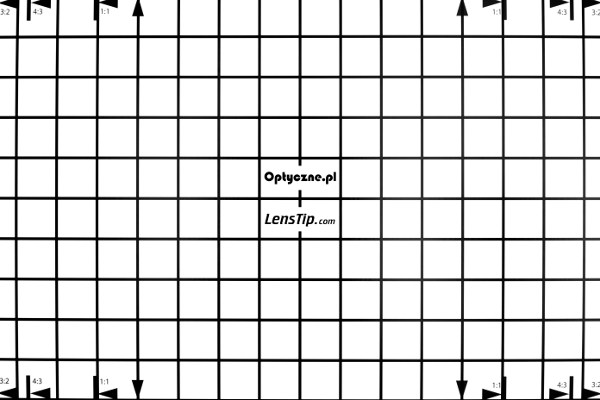

Nikon D500, 20 mm
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Distortion
