Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR

20 July 2018
Arkadiusz Olech

8. Vignetting

Let’s glance at thumbnails below and check the vignetting performance on the sensor of the Nikon D500.

Nikon D500, 10 mm, f/4.5 Nikon D500, 10 mm, f/5.6
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting
Nikon D500, 15 mm, f/5.0 Nikon D500, 15 mm, f/8.0
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting
Nikon D500, 20 mm, f/5.6 Nikon D500, 20 mm, f/8.0
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting


At the most demanding combination of 10 mm and f/4.5 aperture you have to take into account a loss of 44% (-1.67 EV) of light in the frame corners. It is a high value; for example the Nikkor 10-24 mm at its maximum aperture which is f/3.5 had a result of 39%. On the other hand the Nikkor 10-20 mm fares a bit better than the Canon 10-18 mm which lost as much as 53% of light on its slightly smaller sensor.

Stopping down the aperture to a value of f/5.6 makes the vignetting decrease to 29% (-0.98 EV). By f/8.0 we got 19% (-0.63 EV) of light fall-off, and by f/11 it was 16% (-0.49 EV). Further stopping down didn’t have any measureable effect on the aberration, described here.


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

In the middle of the focal range and by f/5.0 aperture the vignetting is 35% (-1.24 EV). A slight stopping down to f/5.6 is able to decrease its level to 30% (-1.04 EV). By apertures f/8.0 and f/11.0 we got respectively: 14% (-0.43 EV) and 12% (-0.38 EV).

The vignetting problems at the 20 mm focal length are least numerous. In that case by f/5.6 the vignetting is 30% (-1.02 EV), and by f/8.0 it decreases to a value of 12% (-0.38 EV). By f/11.0 that aberration becomes practically imperceptible as it drops to 10% (-0.32 EV).

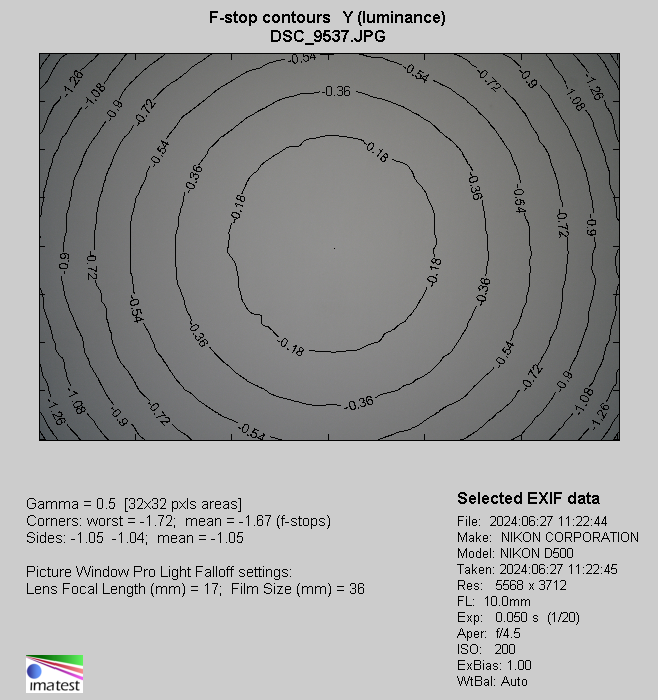

Nikon D500, 10 mm, f/4.5
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting

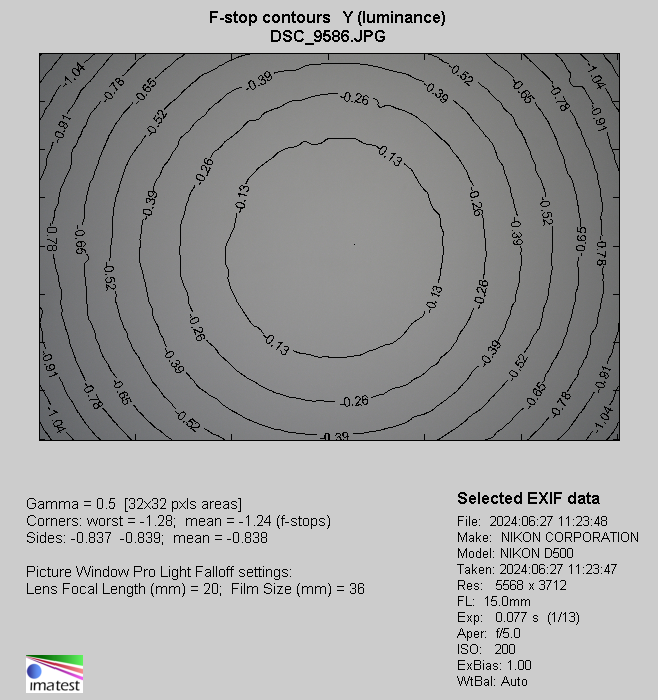

Nikon D500, 15 mm, f/5.0
Nikon Nikkor AF-P DX 10-20 mm f/4.5-5.6G VR - Vignetting

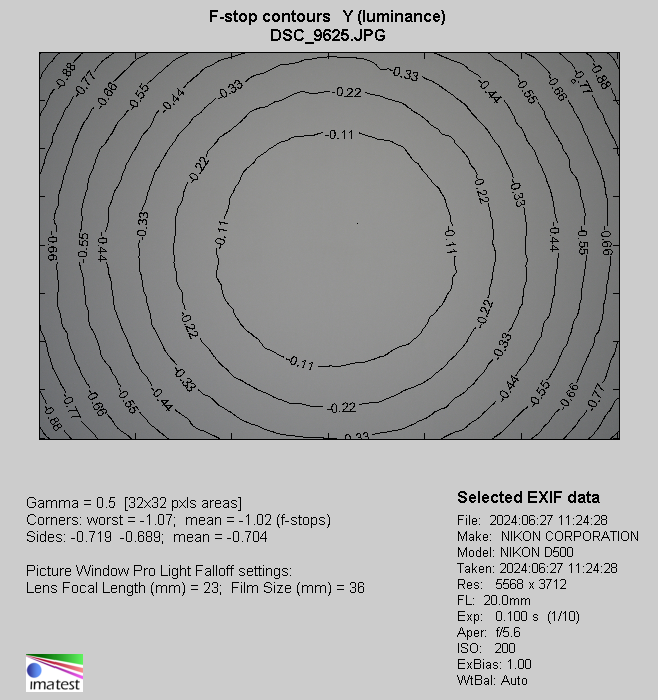

Nikon D500, 20 mm, f/5.6
