LensTip.com

Lens review

Sony FE 90 mm f/2.8 Macro G OSS

31 May 2019
Arkadiusz Olech

8. Vignetting

First let's check how the lens performs on the smaller APS-C sensor – appropriate thumbnails can be found below.

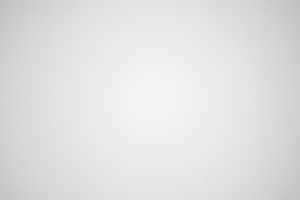

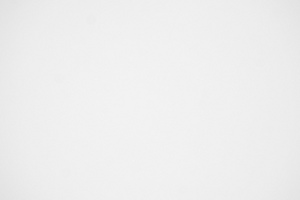

A7R II, APS-C, f/2.8 A7R II, APS-C, f/4.0
Sony FE 90 mm f/2.8 Macro G OSS - Vignetting Sony FE 90 mm f/2.8 Macro G OSS - Vignetting


In this case you get some chances to notice vignetting only at the maximum relative aperture, where it amounts to 20% (−0.65 EV). By f/4.0 it decreases to an imperceptible level of 6% (−0.19 EV).


Please Support Us

The coronavirus crisis has been adversely affecting many businesses and, sad but true, ours is not an exception. Despite that difficult situation we would like to preserve continuity and high quality of publications available on all our websites. Still, we are now aware it might be impossible without additional financial help. That's why we would like to ask all those who visit, read, and care about Optyczne.pl, LensTip.com i Allbinos.com for support - it's enough you send us a small sum of money via PayPal. If a lot people decide to support our websites we think we'll stand a chance and survive next months without any lasting harm. We count on your support and understanding, stay safe and be healthy.

- - - - - - - - - - - - - - - - - advertisement - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Now let's check the situation on full frame – appropriate thumbnails can be found below.

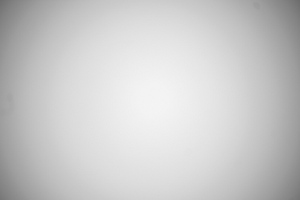

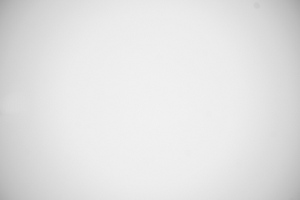

A7R II, FF, f/2.8 A7R II, FF, f/4.0
Sony FE 90 mm f/2.8 Macro G OSS - Vignetting Sony FE 90 mm f/2.8 Macro G OSS - Vignetting

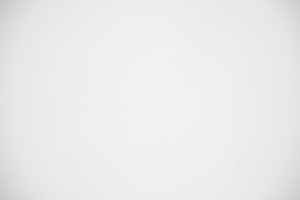

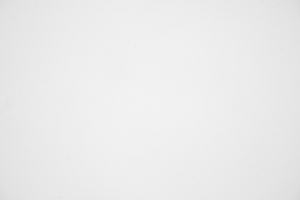

A7R II, FF, f/5.6 A7R II, FF, f/8.0
Sony FE 90 mm f/2.8 Macro G OSS - Vignetting Sony FE 90 mm f/2.8 Macro G OSS - Vignetting


There are far more problems but we already expected and predicted them in the previous chapter, with significant mechanical vignetting visible in defocused circles of light. By f/2.8 the brightness loss in the frame corners amounts to 53% (−2.17 EV) . What about the results of the competition? The Tamron 2.8/90 VC, a lens with the same parameters, fared a bit better with a value of 46%. The Canon 2.8/100 L IS USM had even a better result, that of 43%. The Sigma 2.8/105 OS was equally weak as the tested lens, with vignetting of 55%.

Fortunately stopping down of the aperture is quite effective when it comes to limiting the vignetting. By f/4.0 that aberration decreases to 29% (−1.01 EV), by f/5.6 it amounts to 17% (−0.55 EV) and by f/8.0 and f/11 it is practically invisible, reaching, respectively, just 10% (−0.31 EV) and 8% (−0.24 EV).

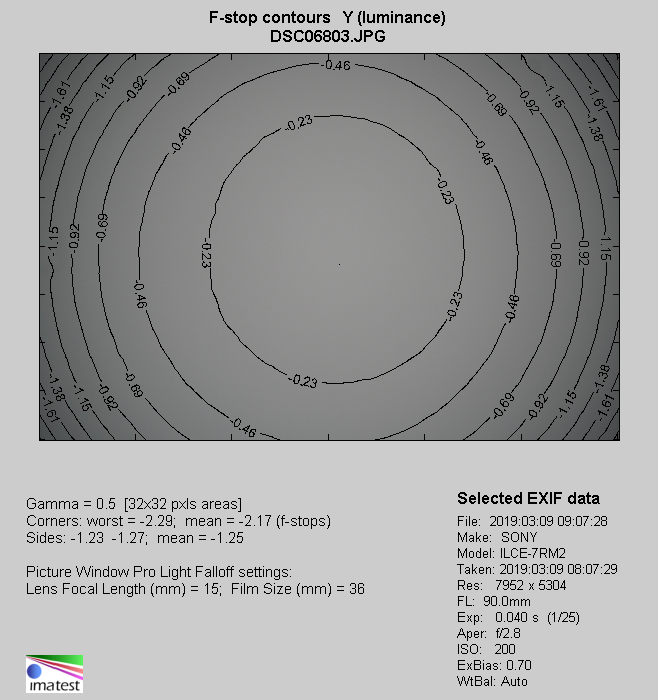

Sony A7R II, JPEG, f/2.8
Sony FE 90 mm f/2.8 Macro G OSS - Vignetting
